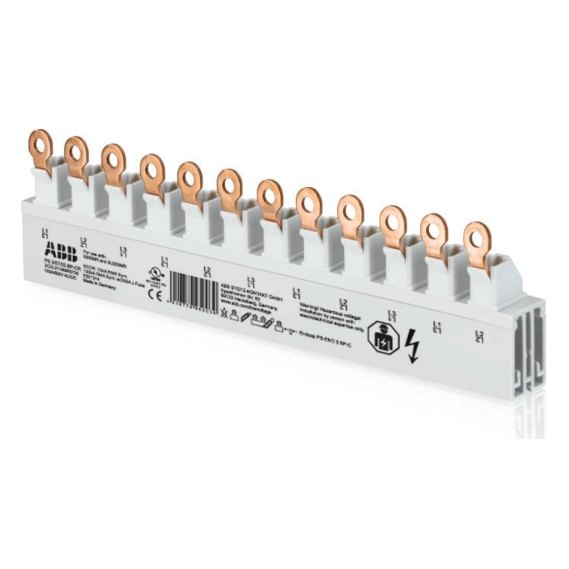

ABB PS..BP-CR busbars for SU200MR ring-tongue breakers, cut to length, 25 mm²
7 versions available · full ordering table in the datasheet
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Busbar
- Series: PS..BP-CR
- Rated voltage: 600 V AC/DC
- Suitable for: ABB SU200MR breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1360 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | PS..BP-CR |
| Technical | |
| Type | Busbar |
| Series | PS..BP-CR |
| Rated voltage | 600 V AC/DC |
| Suitable for | ABB SU200MR breakers |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information
| Phases | Phase sequence | Number of pins | Catalogue no. |
|---|---|---|---|
| 1 | L1-L1-L1... | 57 | PS1/57/25BP-CR |
| 1 | L1-Aux(free)-L1-Aux(free)... | 37 | PS1/37/25HBP-CR |
| 2 | L1-L2-L1-L2... | 56 | PS2/56/25BP-CR |
| 2 | L1-L2-Aux(free)-L1-L2-Aux(free)... | 46 | PS2/46/25HBP-CR |
| 3 | L1-L2-L3-L1-L2-L3... | 57 | PS3/57/25BP-CR |
| 3 | L1-L2-L3-Aux(free)-L1-L2-L3-Aux(free)... | 48 | PS3/48/25HBP-CR |
| 3 | L1-Aux(free)-L2-Aux(free)-L3-Aux(free)... | 39 | PS3/39/25HBP-CR |
Technical specifications — busbars PS...BP-C/CR
| Standards | |
|---|---|
| Rated voltage Ue | V |
| Rated frequency | Hz |
| Rated impuls withstand voltage Uimp. | kV |
| Rated current / phase | |
| End fed 1) | A |
| Center fed 1) | A |
| Short circuit current rating | kA |
Compatibility
| Use with | ABB SU200MR breakers |
|---|
Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Ring-tongue busbars for ABB SU200MR breakers, can be cut to length, 25 mm² cross section, 600 V AC/DC, for use with PS-END 3 BP-C end caps and BSK BP-CR tooth covers. "H" versions leave a free half-module after each phase sequence for an auxiliary contact.
