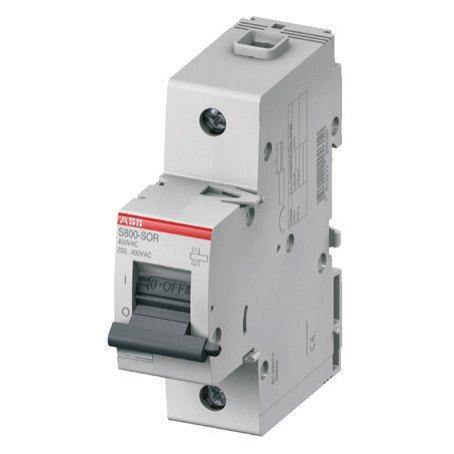

ABB S800-SOR shunt operation release for S800U, left-side mounting
Control voltage: 24 VAC/DC
3 versions available · full ordering table in the datasheet
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Shunt trip
- Series: S800-SOR
- Suitable for: ABB S800U circuit breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1372 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S800-SOR |
| Technical | |
| Type | Shunt trip |
| Series | S800-SOR |
| Suitable for | ABB S800U circuit breakers |
Datasheet
Download manufacturer datasheet (PDF)
ABB S800U series accessories
Ordering information
| Control voltage | Catalogue no. |
|---|---|
| 24 VAC/DC | S800-SOR24 |
| 48...130 VAC/DC | S800-SOR130 |
| 110...250 VAC/DC | S800-SOR250 |
Technical data — S800-SOR
| S800-SOR24 | S800-SOR130 | S800-SOR250 | S800-SOR400 | |
|---|---|---|---|---|
| Rated voltage Ue | 24 VAC/DC | 48...130 VAC/DC | 110...250 VAC/DC | 220...250 VAC/DC |
| Operating range | 70...110% Ue | |||
| Rated insulation voltage Ui | 690 V | |||
| Coil pull in consumption | 19.2 W/vA | On request | ||
| Rated frequency | DC; 50/60 Hz | |||
| Protection degree | 3 | |||
| Connection Cu | 1...35 AWG | |||
| Tightening torque | min. 3/max. 4 Nm | |||
| AC/DC supply | Any | |||
| DIN top hat rail | EN 60715 | |||
| Type of protection | IP20 IP40 (only actuation side) | |||
| Permissible ambient temperature of operations | -25...+60 °C; -13 °F...140 °F | |||
| Storage temperature | -40...+70 °C; -40 °F...158 °F | |||
| S800-UVR36 | IEC 60068-2-27; IEC 60068-2; EN61373 Cat. 1/class B |
Compatibility
| Use with | ABB S800U circuit breakers |
|---|
Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Shunt trip for remote tripping: the device opens the breaker when control voltage is applied. Field-mounted on the left-hand side of S800U breakers.
