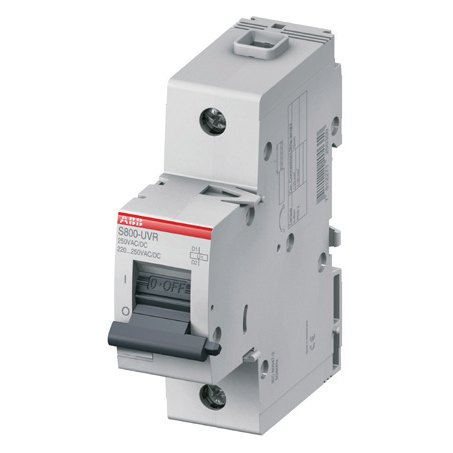

ABB S800-UVR undervoltage release for S800U, left-side mounting
Control voltage: 24...36 VAC/DC
4 versions available · full ordering table in the datasheet
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Undervoltage release
- Series: S800-UVR
- Suitable for: ABB S800U circuit breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1373 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S800-UVR |
| Technical | |
| Type | Undervoltage release |
| Series | S800-UVR |
| Suitable for | ABB S800U circuit breakers |
Datasheet
Download manufacturer datasheet (PDF)
ABB S800U series accessories
Ordering information
| Control voltage | Catalogue no. |
|---|---|
| 24...36 VAC/DC | S800-UVR36 |
| 48...60 VAC/DC | S800-UVR60 |
| 110...130 VAC/DC | S800-UVR130 |
| 220...250 VAC/DC | S800-UVR250 |
Technical data — S800-UVR
| S800-UVR36 | S800-UVR60 | S800-UVR130 | S800-UVR250 | |
|---|---|---|---|---|
| Rated voltage Ue | 24...36 VAC/DC | 48...60 VAC/DC | 110...130 VAC/DC | 220...250 VAC/DC |
| Operating range | ||||
| Operating opening | 35...70% Ue | |||
| Operating clothing | 85% Ue | |||
| Rated insulation voltage Ui | 690 V | |||
| Coil pull in consumption | 1 W, 14 vA | 1 W, 25 vA | 1 W, 41 vA | 1 W, 91 vA |
| Rated frequency | DC; 50/60 Hz | |||
| Protection degree | 3 | |||
| Connection Cu | 1...35 cable | |||
| Tightening torque | min. 3/max. 4 Nm | |||
| AC/DC supply | Any | |||
| DIN top hat rail | EN 60715 | |||
| Type of protection | IP20 IP40 (only actuation side) | |||
| Permissible ambient temperature of operations | -25...+60 °C; -13 °F...140 °F | |||
| Storage temperature | -40...+70 °C; -40 °F...158 °F | |||
| S800-UVR36 | IEC 60068-2-27; IEC 60068-2; EN61373 Cat. 1/class B |
Compatibility
| Use with | ABB S800U circuit breakers |
|---|

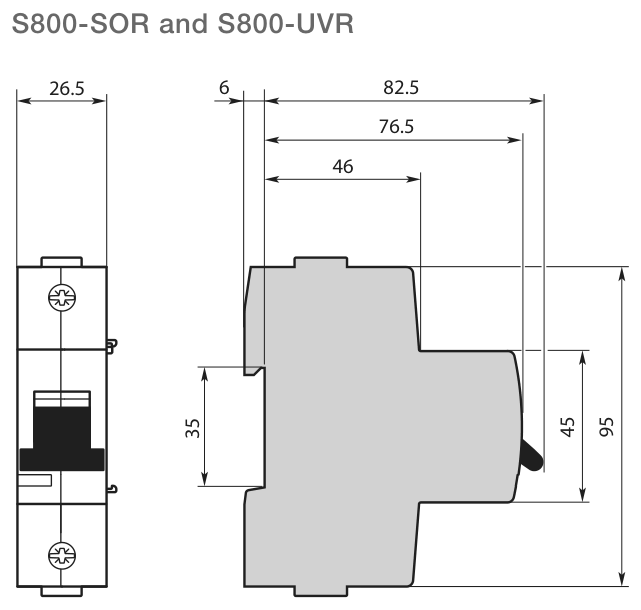

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Undervoltage release: when control voltage drops below about 50 % of rated voltage the UVR opens the breaker, which cannot be operated again until proper control voltage is applied to the coil.
