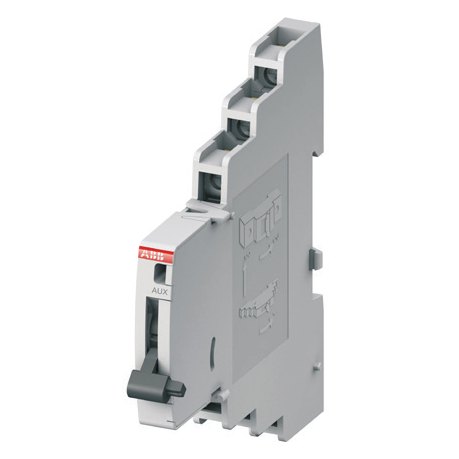

ABB S800-AUX auxiliary contact for S800U
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Auxiliary contact
- Series: S800-AUX
- Suitable for: ABB S800U circuit breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1374 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S800-AUX |
| Technical | |
| Type | Auxiliary contact |
| Series | S800-AUX |
| Suitable for | ABB S800U circuit breakers |
Datasheet
Download manufacturer datasheet (PDF)
ABB S800U series accessories
Ordering information
| Description | Catalogue no. |
|---|---|
| Auxiliary contact | S800-AUX |
Technical data — S800-AUX
| Usage category | AC15 400/2 A-UL AC15 240/ -UL DC13 250/0.55 A125 V/1.1A-IEC DC13 125 V/1.1A DC13 60 V/2A DC13 24 V/4A |
|---|---|
| Continuous thermal current In | 6 A |
| Rated insulation voltage Ui | 690 V |
| Number of contacts | 2 |
| Surge U (1.2/50μs) test | 6 kV |
| Degree of protection | 3 |
| Function of contact | Changeover contacts |
| Connection CU | 1 x 2.5 mm2 2 x 1.5 mm2 |
| Tightening torque | 1 Nm |
| Ensured contacts during shake test | 5g, 20 frequency cycle |
| acc. to IEC 68-2-6 | at 24 VAC/DC, 5mA brief interrupt <10 ms |
| AC/DC supply | any EN 60715 |
| Mounting on DIN top hat rail | EN 60715 IP20 |
| Type of protection | IP20 |
| Permissible ambient temperature for operations | -25...+60 °C; -13 °F...140 °F |
| Storage temperature | -40...+70 °C; -40 °F...158 °F |
| Mechanical device service life | 6000 switching cycles |
| Iwith S450E cu | 1000 A |
| Resistance to vibration | IEC 60068-2-27; IEC 60068-2; EN 61373 Cat. 1/class B |
Compatibility
| Use with | ABB S800U circuit breakers |
|---|

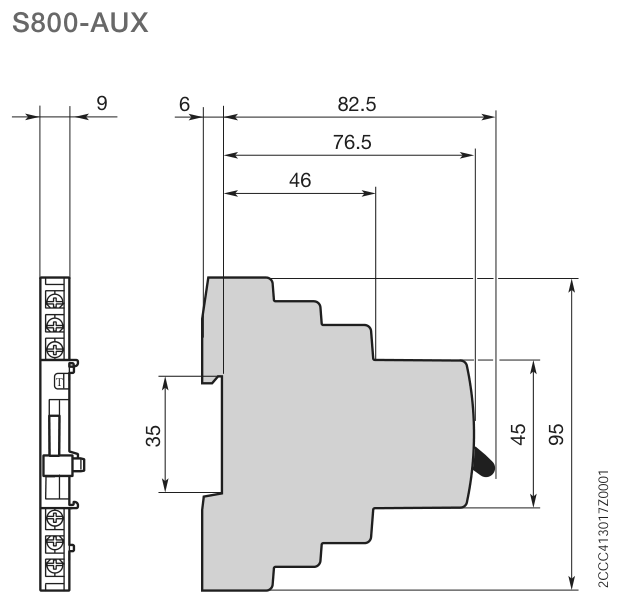

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Auxiliary contact that signals whether the S800U breaker is in the ON or OFF position.
Questions & answers
Customer questions
No questions asked yet. Ask about specification, compatibility, lead time or anything else about this item.
Reviews
No reviews yet. Bought or used this item? Be the first to share your experience.
-
