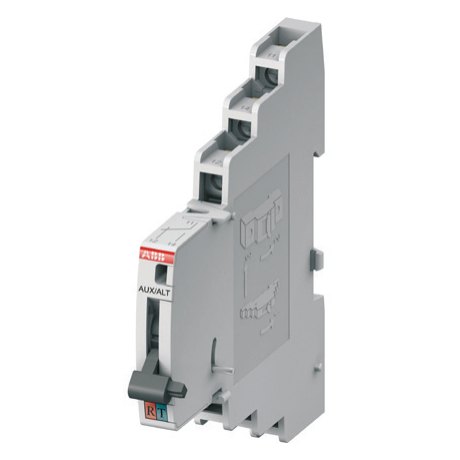

ABB S800-AUX/ALT bell alarm (combined auxiliary and alarm contact) for S800U
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Bell alarm contact
- Series: S800-AUX/ALT
- Suitable for: ABB S800U circuit breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1375 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S800-AUX/ALT |
| Technical | |
| Type | Bell alarm contact |
| Series | S800-AUX/ALT |
| Suitable for | ABB S800U circuit breakers |
Datasheet
Download manufacturer datasheet (PDF)
ABB S800U series accessories
Ordering information
| Description | Catalogue no. |
|---|---|
| Bell alarm | S800-AUX/ALT |
Technical data — combined auxiliary and bell alarm
| Usage category | AC15 400/2 A-UL AC15 240/6A-UL DC13 250/0.55 A125 V/1.1A-IEC DC13 125 V/1.1A-IEC DC13 60 V/2A DC13 24 V/4A |
|---|---|
| Continuous thermal current In | 6 A |
| Rated insulation voltage Ui | 690 V |
| Number of contacts | 2 (1x AUX, 1 x AUX/ALT) |
| Surge U (1.2/50μs) test | 6 kV |
| Degree of protection | 3 |
| Function of contact | Changeover contacts |
| Connection CU | 1 x 2.5 mm2 2 x 1.5 mm2 |
| Tightening torque | 1 Nm |
| Ensured contacts during shake test | 5g, 20 frequency cycle |
| acc. to IEC 68-2-6 | 5...150...5 Hz at 24 VAC/DC, 5 mA brief interrupt <10 ms |
| AC/DC supply | any EN 60715 |
| Mounting on DIN top hat rail | EN 60715 |
| Type of protection | IP20 |
| Permissible ambient temperature for operations | -25...+60 °C; -13 °F...140 °F |
| Storage temperature | -40...+70 °C; -40 °F...150 °F |
| Mechanical device service life | 6000 switching cycles |
| Iwith S450E cu | 1000 A |
| Resistance to vibration | IEC 60068-2-27; IEC 60068-2; EN 61373 Cat. 1/class B |
Compatibility
| Use with | ABB S800U circuit breakers |
|---|

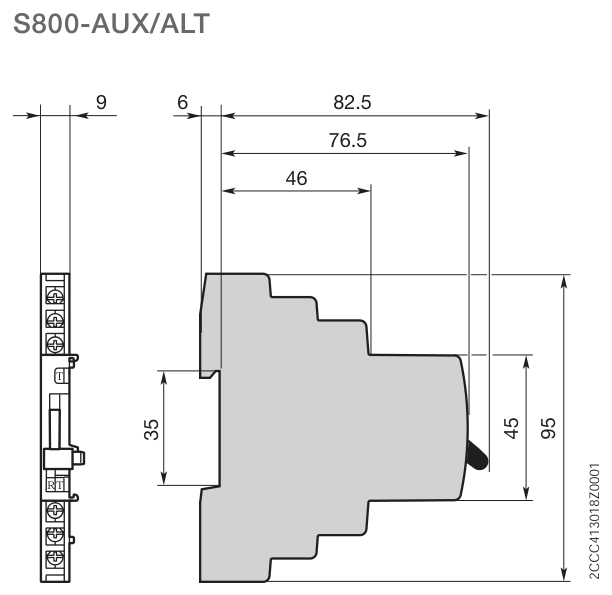

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Combined auxiliary and bell alarm contact that signals when the S800U breaker has tripped; includes a test button for checking the alarm without opening the breaker.
