ABB S800-RD rotary operating mechanism and S800-RHE handles for S800U (through-the-door)
Component: Handle mechanism
4 versions available · full ordering table in the datasheet
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Rotary operating mechanism
- Series: S800-RD / S800-RHE
- Suitable for: ABB S800U circuit breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1377 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S800-RD / S800-RHE |
| Technical | |
| Type | Rotary operating mechanism |
| Series | S800-RD / S800-RHE |
| Suitable for | ABB S800U circuit breakers |
Datasheet
Download manufacturer datasheet (PDF)
ABB S800U series accessories
Ordering information
| Component | Catalogue no. |
|---|---|

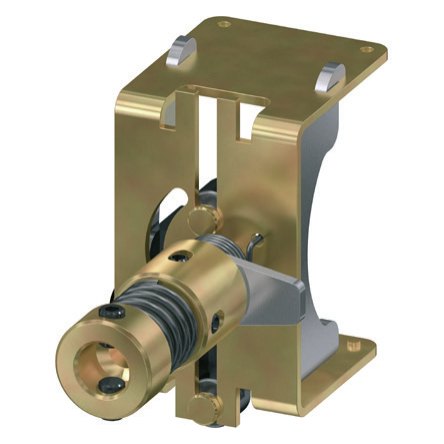

| Handle mechanism | S800-RD |

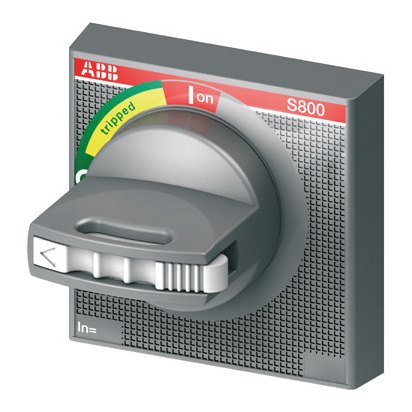

| Grey rotary handle | S800-RHE-H |

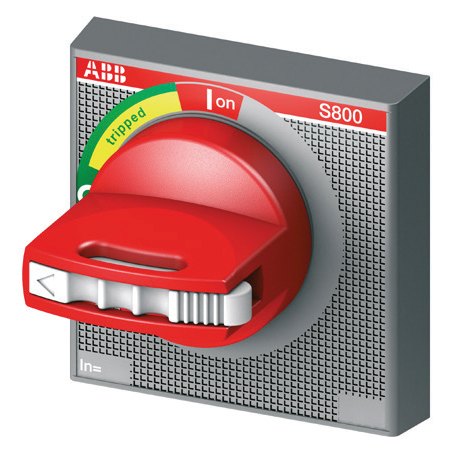

| Red rotary handle (emergency) | S800-RHE-EM |

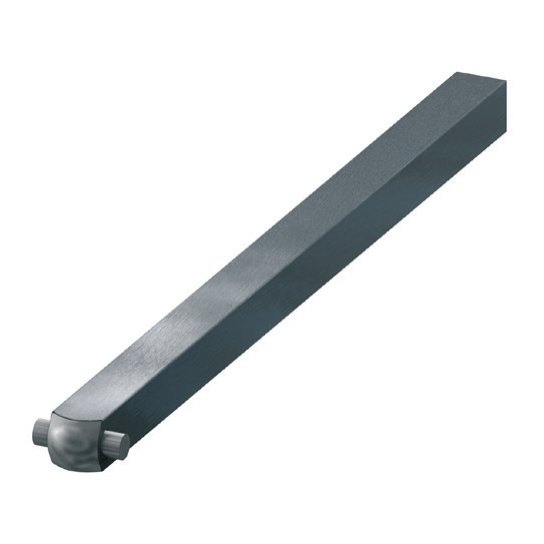

| Shaft extension | S800-RHE-S |
Compatibility
| Use with | ABB S800U circuit breakers |
|---|

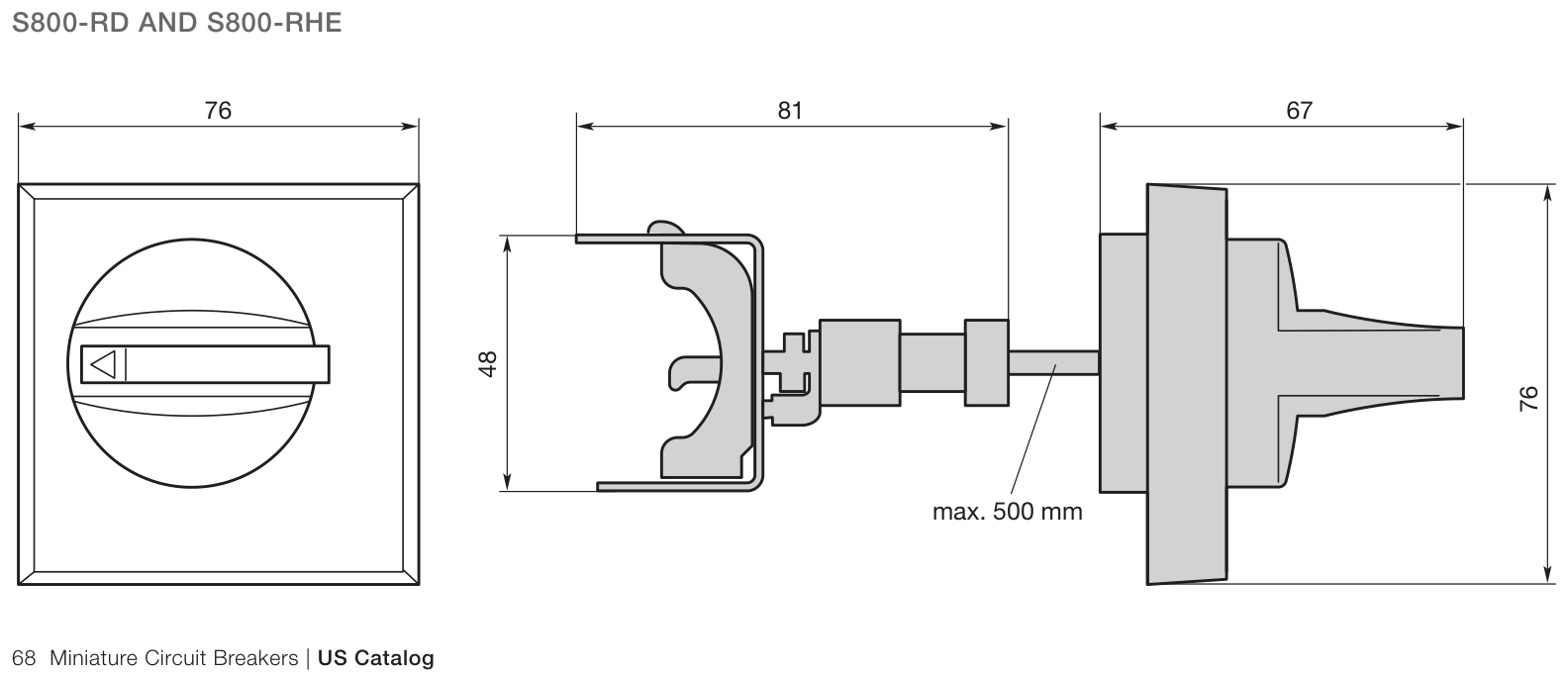

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Rotary operating mechanism that allows through-the-door operation of S800U breakers, with grey or red/yellow (emergency) door handles and shaft extension (max. 500 mm).
