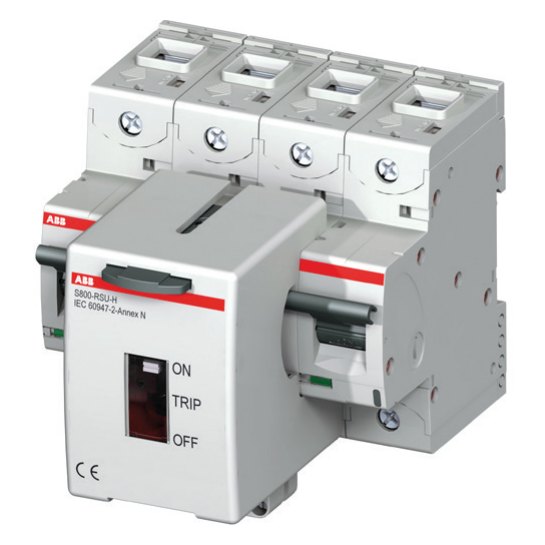

ABB S800W-RSU remote switching unit for multi-pole S800 breakers, 24 VDC
2 versions available · full ordering table in the datasheet
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Remote switching unit
- Series: S800W-RSU
- Suitable for: ABB S800U circuit breakers (multi-pole S800)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1379 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S800W-RSU |
| Technical | |
| Type | Remote switching unit |
| Series | S800W-RSU |
| Suitable for | ABB S800U circuit breakers (multi-pole S800) |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information
| Item | Catalogue no. |
|---|---|
| Remote switching unit (breaker not included) | S800W-RSU |

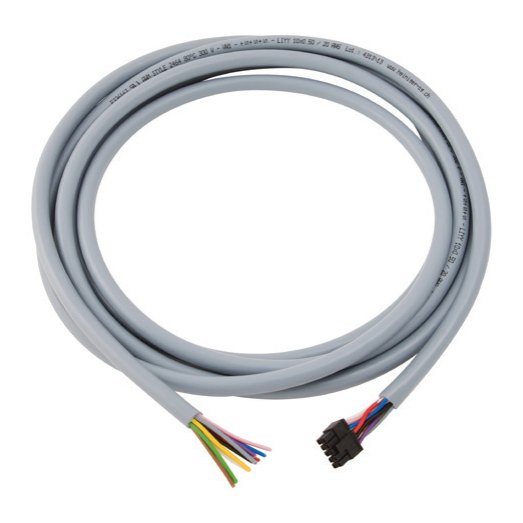

| 3 m cable 0.5 mm² (AWG20) with 10-pole Micro-Fit 3.0 plug | S800-RSU-CP |
Technical specifications
| Operational voltage | 24 VDC |
|---|---|
| Current consumption Ims | 2, 5 |
| Standby current I Standby | < 50 mA |
| Switching time OFF-ON | < 500 msec |
| Switching time ON-OFF | <250 msec |
| Ambient operation temperature | -25...+70 °C |
| Number of switching operations | 10.000 |
| Maximum cable lengths (AWG20/0.5mm2) | 10 m |
| Degree of protection (mounted) | IP2 |
| Weight | 0.661387 lb. |
| Connection | 10-pole Micro-Fit 3.0™ |
Key features and safety intelligence
- Brushless high-precision DC motor for fast remote operation
- Low power consumption, short switching times
- Switching times: OFF→ON <500 ms; ON→OFF <250 ms; TRIP→OFF→ON <1500 ms
- Mounts on any multi-pole S800 high-performance MCB; field installable
- Operated by a standard pushbutton or a PLC
- Inputs deactivated when manual use is detected
- Locked for five minutes after three switching attempts that lead to a trip
- Manual switch-off possible for three- and four-pole devices
Compatibility
| Use with | ABB S800U circuit breakers (multi-pole S800) |
|---|

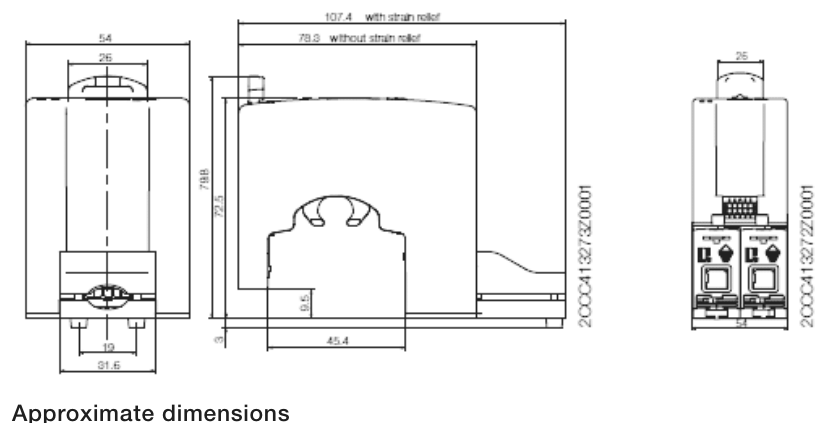

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Remote switching unit with a brushless high-precision DC motor for fast remote ON/OFF/reset of any multi-pole S800 high-performance MCB. Field installable; controlled by a standard pushbutton or a PLC through a 10-pole Micro-Fit 3.0 connector (cable S800-RSU-CP sold separately).
