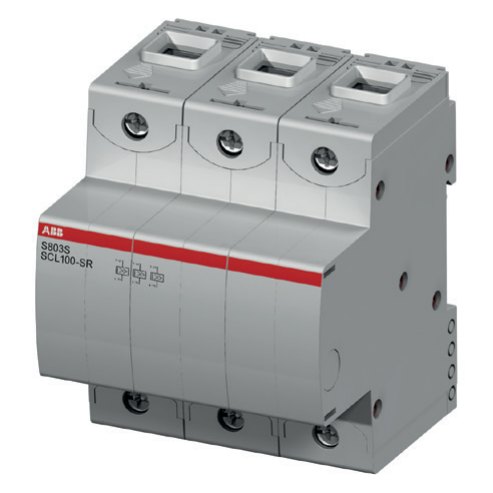

ABB S803W-SCL-SR self-resetting short-circuit current limiter, 3-pole, 32/63/100 A, UL 508
3 versions available · full ordering table in the datasheet
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Short-circuit current limiter
- Series: S803W-SCL-SR
- Suitable for: ABB MS/MO325 and MS/MO132 manual motor starters, S800 breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1380 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S803W-SCL-SR |
| Technical | |
| Type | Short-circuit current limiter |
| Series | S803W-SCL-SR |
| Suitable for | ABB MS/MO325 and MS/MO132 manual motor starters, S800 breakers |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information
| Rated current | Catalogue no. |
|---|---|
| 32 A | S803W-SCL32-SR |
| 63 A | S803W-SCL63-SR |
| 100 A | S803W-SCL100-SR |
Technical data
| Rated voltage | 600 VAC per UL 508 |
|---|---|
| Short-circuit current rating (UL 508, CSA C22.2) | 480 VAC 50/60 Hz: 65 kA; 600 VAC 50/60 Hz: 65 kA |
| Icu = Ics (IEC 60947-2) | 240/415 V: 100 kA; 254/440 V: 100 kA; 277/480 V: 65 kA; 289/500 V: 65 kA; 346/600 V: 65 kA; 400/690 V: 50 kA |
Approved combinations with motor starters (upstream S803W-SCL-SR rating)
| Downstream device / rated current Ie (A) | 32 A | 63 A | 100 A |
|---|---|---|---|
| MS/MO325 0.1–2.5 | • | • | • |
| MS/MO325 4 | • | • | • |
| MS/MO325 6.3 | • | • | • |
| MS/MO325 9 | • | • | • |
| MS/MO325 12.5 | • | • | • |
| MS/MO325 16 | • | • | • |
| MS/MO325 20 | • | • | |
| MS/MO325 25 | • | • | |
| MS/MO132 0.1–2.5 | • | • | |
| MS/MO132 4 | • | • | |
| MS/MO132 6.3 | • | • | • |
| MS/MO132 10 | • | • | • |
| MS/MO132 16 | • | • | • |
| MS/MO132 20 | • | • | |
| MS/MO132 25 | • | • | |
| MS/MO132 32 | • | • |
Combinations with S500-K and S500-KM on request. • applies for all voltages in the breaking-capacity table.

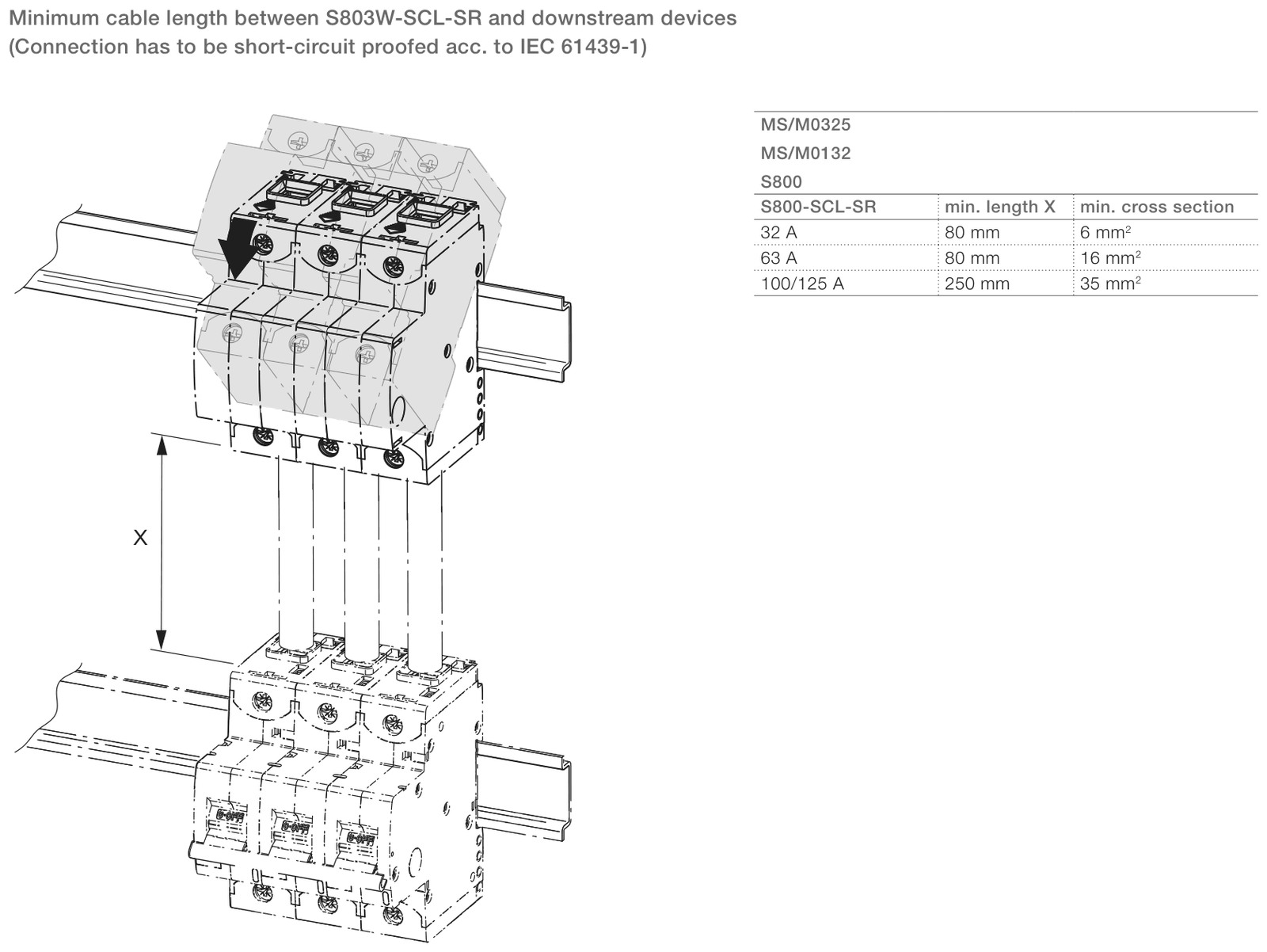

Minimum cable length between S803W-SCL-SR and downstream devices
| S803W-SCL-SR | Min. length X | Min. cross section |
|---|---|---|
| 32 A | 80 mm | 6 mm² |
| 63 A | 80 mm | 16 mm² |
| 100/125 A | 250 mm | 35 mm² |
Connection has to be short-circuit proof according to IEC 61439-1.
Compatibility
| Use with | ABB MS/MO325 and MS/MO132 manual motor starters, S800 breakers |
|---|

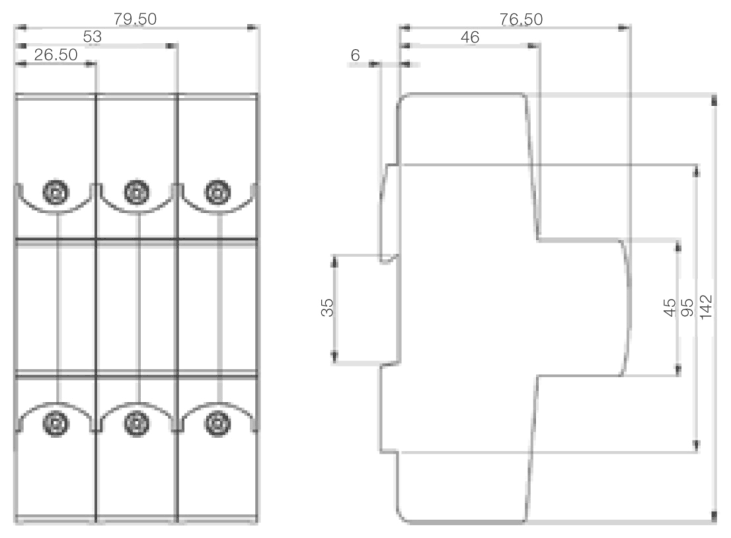

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Self-resetting 3-pole short-circuit current limiter (UL 508 version). Installed upstream of manual motor starters it raises the short-circuit rating of the combination to 65 kA at 480 V and 600 VAC.
