Quarter-turn electric actuator EOT05, compact, 50 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Quarter-turn electric
- Series: EOT
- Max torque: 50 N·m
- Control: On/off or modulating
- Power supply: AC110/220V; optional AC/DC24V
- Ingress protection: IP67
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1286 |
| Category | Quarter-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Quarter-turn electric |
| Series | EOT |
| Max torque | 50 N·m |
| Control | On/off or modulating |
| Power supply | AC110/220V; optional AC/DC24V |
| Ingress protection | IP67 |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Limit Function | Adopt double CAM, convenient travel position setting |
| Process Control | Product quality is strictly controlled through the use of barcode tracing in the actuator. |
| Appearance Design | the electric actuator features a patented streamlined design that is small in size and lightweight, making it ideal for use in small spaces. |
| Operational Safety | To ensure the safe operation of the motor, the motor winding is insulated to Class F standards, and a temperature switch is installed to monitor the motor temperature and prevent overheating issues |
| Anti-Corrosion resistance | The actuator's housing features an anti-corrosion epoxy powder coating that has excellent adhesion and corrosion resistance. In addition, all fasteners are made of stainless steel, making the actuator suitable for outdoor use. |
| Indicator | The valve opening is indicated with a plane pointer and scale, which require minimal space |
| Wiring Simple | Plug-in terminal for easy connection |
| Reliable Sealing | The actuator features a long-acting sealing ring design that provides an effective waterproof seal. |
| Moisture Resistance | To prevent condensation and prolong the lifespan of the actuator, a heater is installed inside the actuator. |
Standard specification
| Torque | 50N·m |
|---|---|
| Ingress Protection | IP67 |
| Working Time | On/off type: S2-15min; Modulating type: S4-50% |
| Applicable Voltage | AC110/AC220V Optional: AC/DC24V |
| Ambient Temperature | -25°-60° |
| Relative Humidity | ≤90% (25°C) |
| Motor Specifications | Class F, with thermal protector |
| Output Connect | ISO5211 direct connection, star bore |
| Modulating Functional Configuration | Support loss signal mode, signal reversal selection function |
| Manual Device | Wrench operation |
| Position Indicator | Flat Pointer Indicator |
| Input Signal | On/off type: On/off signal; Modulating type: Standard 4-20mA (input impedance: 150Ω); Optional: 0-10V; 2-10V; Optoelectronic isolation |
| Output Signal | On/off type: 2- dry contact and 2-wet contact; Modulating type: Standard 4-20mA (output impedance: ≤750Ω). Optional: 0-10V; 2-10V; Optoelectronic isolation |
| Cable Interface | On/off type: 1*PG13.5; Modulating type: 2*PG13.5 |
| Space Heater | Standard |
Performance parameters — EOT series
| Model | Power (W) | Max torque N·m (AC110/220V, AC/DC24V) | Max torque N·m (AC380V 3-ph) | Running time s (AC110/220V 50 Hz) | Running time s (AC380V) | Running time s (AC/DC24V) | ISO 5211 | Stem connection (mm) | Stem height (mm) | Weight (kg) | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EOT05 | 6 | 50 | — | 19 | — | 15 | F03/F05/F07 | □9, □11, □14 octagon | ≤20 | 2 | 8# wrench operation |
1. Standard configuration. 2. Switching time tolerance ±20%. EOT05 has no DC24V modulating version. 3. Rated torque is 0.75 × the max torque. 4. Running times are at 50 Hz; at 60 Hz they are 5/6 of these. Max torque is the same. 5. If the valve stem is taller than listed, ask for a customised version. 6. EOT05: ask if a mechanical limit stop is needed.

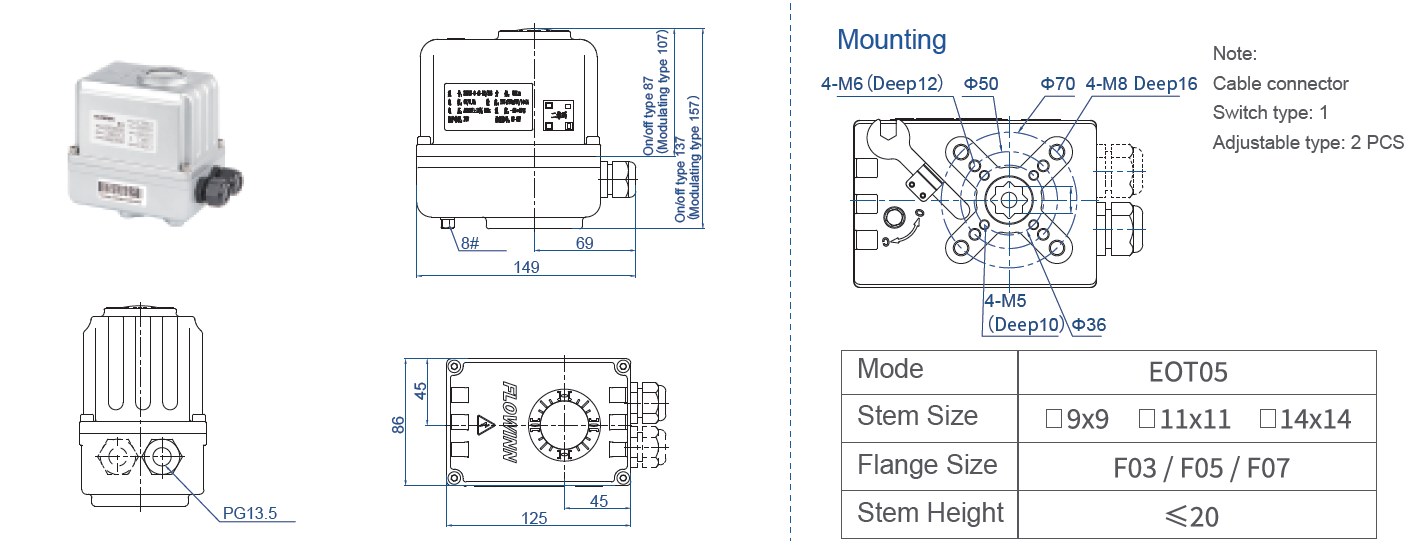

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EOT is a compact aluminium quarter-turn (90°) electric actuator for ball, butterfly and plug valves. Its small, light body suits tight pipe racks and skids, and it is available as on/off or 4–20 mA modulating. This model: max torque 50 N·m, on/off or modulating control, power supply AC110/220V; optional AC/DC24V, IP67.
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
