Quarter-turn electric actuator EOT400 / EOT600, 4000–6000 N·m
Valve Actuators

Quarter-turn electric actuator EOT400 / EOT600, 4000–6000 N·m

Part no.
BD-1290
Brand
FLOWINN
Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Quarter-turn electric
  • Series: EOT
  • Max torque: 4000–6000 N·m
  • Control: On/off or modulating
  • Power supply: AC110/220V; optional AC/DC24V, 3-ph AC380V
  • Ingress protection: IP67 (optional IP68)
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1290
CategoryQuarter-Turn Electric Actuators
GroupValve Actuators
BrandFLOWINN
Technical
TypeQuarter-turn electric
SeriesEOT
Max torque4000–6000 N·m
ControlOn/off or modulating
Power supplyAC110/220V; optional AC/DC24V, 3-ph AC380V
Ingress protectionIP67 (optional IP68)
ManufacturerFLOWINN (Shanghai)

Datasheet

FLOWINN EOT series

Technical features

Manufacturer warranty2 years
Limit FunctionDouble CAM design, convenient stroke setting.
Process ControlQR code tracking can directly trace the source of goods.
Appearance designExquisite appearance design, so that the actuator is suitable for a variety of small space scene
Operational SafetyIn order to prevent overheating problems, the Class F insulation motor winding has a temperature of the motor switch that senses the motor's temperature. This guarantees the working safety of the motor.
Anti-Corrosion resistanceTThe shell of the actuator is coated with epoxy resin powder, which is corrosion resistant.
IndicatorPlane pointer and scale to show the valve opening, take uo little space.
Wiring SimplePlug-in terminal for easy connection
Reliable SealingIP67 protection grade, O-ring can effectively prevent water leakage.
Moisture ResistanceInstalled with heater inside the actuator to prevent condensation and extend the life of the actuator.
Manual OperationAfter the power is cut off, open the rubber cover and insert the matching Z-wrench to open and close the valve manually.
Connecting FlangeIn order to better connect with valve flanges with different hole positions and angles, EOT series electric actuators have two different sizes of double flanges and octagonal drive sleeves according to ISO5211 standard.
PackagingProduct packaging with pearl cotton, accord with ISO2248 drop test.

Standard specification

Torque4000-6000N·m
Ingress ProtectionIP67; Optional: IP68
Working TimeOn/off type: S2-15min; Modulating type: S4-50%
Applicable VoltageAC110/AC220V Optional: AC/DC24V, AC380V
Ambient Temperature-25°-60°
Relative Humidity≤90% (25°C)
Motor SpecificationsClass F, with thermal protector
Output ConnectISO5211 direct connection, star bore
Modulating Functional ConfigurationSupport loss signal mode, signal reversal selection function
Manual Device6mm Allen manual wrench operation
Position IndicatorFlat Pointer Indicator
Input SignalOn/off type: On/off signal; Modulating type: Standard 4-20mA (input impedance: 150Ω); Optional: 0-10V; 2-10V; Optoelectronic isolation
Output SignalOn/off type: 2- dry contact and 2-wet contact; Modulating type: Standard 4-20mA (output impedance: ≤750Ω). Optional: 0-10V; 2-10V; Optoelectronic isolation
Cable InterfaceOn/off type: 1*PG13.5; Modulating type: 2*PG13.5
Space HeaterStandard

Performance parameters — EOT series

ModelPower (W)Max torque N·m (AC110/220V, AC/DC24V)Max torque N·m (AC380V 3-ph)Running time s (AC110/220V 50 Hz)Running time s (AC380V)Running time s (AC/DC24V)ISO 5211Stem connection (mm)Stem height (mm)Weight (kg)Remark
EOT400200400040009393—F16□46 octagon≤85686 mm Allen wrench manual operation
EOT60020060006000153153—F16□55 octagon≤85806 mm Allen wrench manual operation

1. Standard configuration. 2. Switching time tolerance ±20%. EOT05 has no DC24V modulating version. 3. Rated torque is 0.75 × the max torque. 4. Running times are at 50 Hz; at 60 Hz they are 5/6 of these. Max torque is the same. 5. If the valve stem is taller than listed, ask for a customised version. 6. EOT05: ask if a mechanical limit stop is needed.

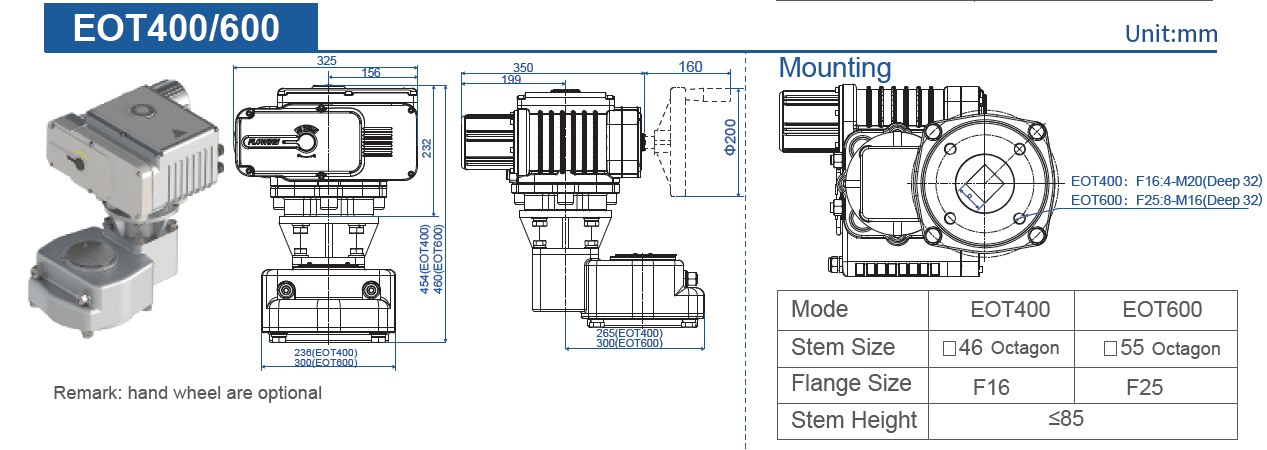

Dimension drawing

EOT dimension drawing

Notes

Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering.

Description

The FLOWINN EOT is a compact aluminium quarter-turn (90°) electric actuator for ball, butterfly and plug valves. Its small, light body suits tight pipe racks and skids, and it is available as on/off or 4–20 mA modulating. This model: max torque 4000–6000 N·m, on/off or modulating control, power supply AC110/220V; optional AC/DC24V, 3-ph AC380V, IP67 (optional IP68).

Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
