Quarter-turn electric actuator EOT10, compact, 100 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Quarter-turn electric
- Series: EOT
- Max torque: 100 N·m
- Control: On/off or modulating
- Power supply: AC110/220V; optional AC/DC24V, 3-ph AC380V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1287 |
| Category | Quarter-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Quarter-turn electric |
| Series | EOT |
| Max torque | 100 N·m |
| Control | On/off or modulating |
| Power supply | AC110/220V; optional AC/DC24V, 3-ph AC380V |
| Ingress protection | IP67 (optional IP68) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Limit Function | Adopt double CAM, convenient travel position setting. |
| Process Control | The actuator adopts QR code tracing to strictly control product quality. |
| Appearance design | Patented streamlined design, small size, light weight, suitable for small space applications. |
| Operational Safety | Class F insulation motor winding has a temperature of the motor switch to sense the temperatrue of the motor to protect the overheating issues, thus ensures the operational safety of the motor. |
| Anti-Corrosion resistance | The housing is coated with anti-corrosion epoxy powerder coating, which has strong adhesion and corrosion resistance. All fasteners are stainless steel for outdoor applications. |
| Indicator | Use plane pointer and scale to show the valve opening, take uo little space. |
| Wiring Simple | Plug-in terminal for easy connection |
| Reliable Sealing | Adopt long-acting sealing ring design, effectively ensure water-proof grade. |
| Moisture Resistance | Installed with heater inside the actuator to prevent condensation and extend the life of the actuator. |
| Manual Operation | After the power is cut off, open the rubber cover and insert the matching Z-wrench to open and close the valve manually. |
| Connecting Flange | The bottom connection holes are in accordance with ISO5211 standard, also with double flanges and octagon drive sleeve, The installation angle can be changed flexibly to connect the valve flange with different hole position and angle. |
| Packaging | Product packaging with pearl cotton, accord with ISO2248 drop test. |
Standard specification
| Torque | 100N·m |
|---|---|
| Ingress Protection | IP67; Optional: IP68 |
| Working Time | On/off type: S2-15min; Modulating type: S4-50% |
| Applicable Voltage | AC110/AC220V Optional: AC/DC24V, AC380V |
| Ambient Temperature | -25°-60° |
| Relative Humidity | ≤90% (25°C) |
| Motor Specifications | Class F, with thermal protector |
| Output Connect | ISO5211 direct connection, star bore |
| Modulating Functional Configuration | Support loss signal mode, signal reversal selection function |
| Manual Device | Wrench operation |
| Position Indicator | Flat Pointer Indicator |
| Input Signal | On/off type: On/off signal; Modulating type: Standard 4-20mA (input impedance: 150Ω); Optional: 0-10V; 2-10V; Optoelectronic isolation |
| Output Signal | On/off type: 2- dry contact and 2-wet contact; Modulating type: Standard 4-20mA (output impedance: ≤750Ω). Optional: 0-10V; 2-10V; Optoelectronic isolation |
| Cable Interface | On/off type: 1*PG13.5; Modulating type: 2*PG13.5 |
| Space Heater | Standard |
Performance parameters — EOT series
| Model | Power (W) | Max torque N·m (AC110/220V, AC/DC24V) | Max torque N·m (AC380V 3-ph) | Running time s (AC110/220V 50 Hz) | Running time s (AC380V) | Running time s (AC/DC24V) | ISO 5211 | Stem connection (mm) | Stem height (mm) | Weight (kg) | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EOT10 | 25 | 100 | 100 | 30 | 30 | 23 | F05/F07 | □11, □14, □17 octagon | ≤32 | 4.5 | 6 mm Allen wrench manual operation |
1. Standard configuration. 2. Switching time tolerance ±20%. EOT05 has no DC24V modulating version. 3. Rated torque is 0.75 × the max torque. 4. Running times are at 50 Hz; at 60 Hz they are 5/6 of these. Max torque is the same. 5. If the valve stem is taller than listed, ask for a customised version. 6. EOT05: ask if a mechanical limit stop is needed.

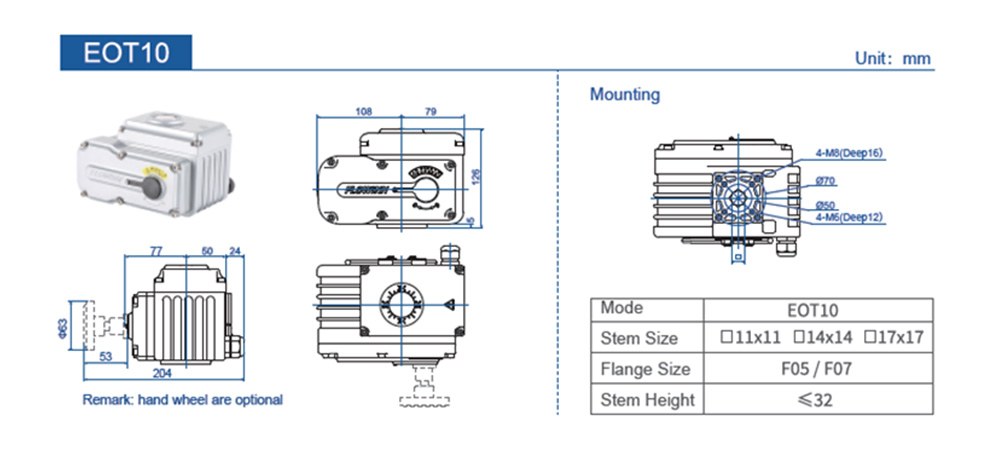

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EOT is a compact aluminium quarter-turn (90°) electric actuator for ball, butterfly and plug valves. Its small, light body suits tight pipe racks and skids, and it is available as on/off or 4–20 mA modulating. This model: max torque 100 N·m, on/off or modulating control, power supply AC110/220V; optional AC/DC24V, 3-ph AC380V, IP67 (optional IP68).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
