Quarter-turn electric actuator EOT20 / EOT40 / EOT60, 200–600 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Quarter-turn electric
- Series: EOT
- Max torque: 200–600 N·m
- Control: On/off or modulating
- Power supply: AC110/220V; optional AC/DC24V, 3-ph AC380V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1288 |
| Category | Quarter-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Quarter-turn electric |
| Series | EOT |
| Max torque | 200–600 N·m |
| Control | On/off or modulating |
| Power supply | AC110/220V; optional AC/DC24V, 3-ph AC380V |
| Ingress protection | IP67 (optional IP68) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Limit Function | In order to facilitate the setting of travel position, double CAM is used. |
| Process Control | All actuators are tracked by Two-dimensional bar code. |
| Appearance design | Patented streamlined design, small size, light weight, suitable for small space applications. |
| Operational Safety | In order to ensure the safe operation of the motor, the F pole insulated motor is used to detect the temperature of the motor through the temperature control switch. |
| Anti-Corrosion resistance | The shell of the electric actuator is coated with epoxy resin powder for strong adhesion, while stainless steel fasteners are corrosion resistant and can be used outdoors. |
| Indicator | Indicator of pointer; optional: 3D opening indicator |
| Wiring Simple | Plug-in terminal for easy connection |
| Reliable Sealing | Adopt long-acting sealing ring design, effectively ensure water-proof grade. |
| Moisture Resistance | Installed with heater inside the actuator to prevent condensation and extend the life of the actuator. |
| Manual Operation | In case of power failure, use a wrench to adjust the valve manually |
| Connecting Flange | With double flanges and octagonal drive sleeve installation, can be flexible to change the installation Angle, suitable for different hole positions and angles of the valve flange, in line with ISO5211 standards |
| Packaging | In order to better packaging products, Shanghai FLOWINN uses pearl-cotton packaging |
Standard specification
| Torque | 200-600N·m |
|---|---|
| Ingress Protection | IP67; Optional: IP68( maximum: 7m, 72 hours) |
| Working Time | Switch type: S2-15min; Modulating type: S4-50% |
| Applicable Voltage | AC110/AC220V Optional: AC/DC24V, AC380V |
| Ambient Temperature | -25°-60° |
| Relative Humidity | ≤90% (25°C) |
| Motor Specifications | Grade F, with thermal protector |
| Output Connect | ISO5211 direct connection, star bore |
| Modulating Functional Configuration | Support loss signal mode, signal reversal selection function |
| Manual Device | 6mm Allen manual wrench operation |
| Position Indicator | Flat Pointer Indicator; optional: 3D opening indicator |
| Input Signal | On/off type: On/off signal; Modulating type: Standard 4-20mA (input impedance: 150Ω); Optional: 0-10V; 2-10V; Optoelectronic isolation |
| Output Signal | On/off type: 2- dry contact and 2-wet contact; Modulating type: Standard 4-20mA (output impedance: ≤750Ω). Optional: 0-10V; 2-10V; Optoelectronic isolation |
| Cable Interface | On/off type: 1*PG13.5; Modulating type: 2*PG13.5 |
| Space Heater | Standard |
Performance parameters — EOT series
| Model | Power (W) | Max torque N·m (AC110/220V, AC/DC24V) | Max torque N·m (AC380V 3-ph) | Running time s (AC110/220V 50 Hz) | Running time s (AC380V) | Running time s (AC/DC24V) | ISO 5211 | Stem connection (mm) | Stem height (mm) | Weight (kg) | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EOT20 | 40 | 200 | 200 | 30 | 30 | 23 | F07/F10 | □14, □17, □22 octagon | ≤44 | 10 | 6 mm Allen wrench manual operation |
| EOT40 | 60 | 400 | 400 | 30 | 30 | 23 | F07/F10 | □14, □17, □22 octagon | ≤44 | 10 | 6 mm Allen wrench manual operation |
| EOT60 | 90 | 600 | 600 | 30 | 30 | 23 | F07/F10 | □27 octagon | ≤44 | 10 | 6 mm Allen wrench manual operation |
1. Standard configuration. 2. Switching time tolerance ±20%. EOT05 has no DC24V modulating version. 3. Rated torque is 0.75 × the max torque. 4. Running times are at 50 Hz; at 60 Hz they are 5/6 of these. Max torque is the same. 5. If the valve stem is taller than listed, ask for a customised version. 6. EOT05: ask if a mechanical limit stop is needed.

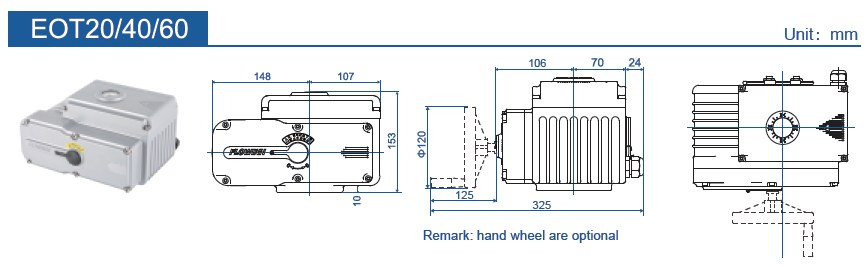

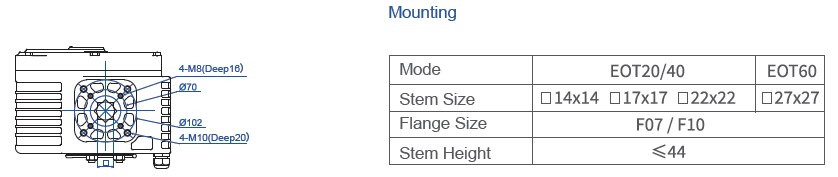

Dimension drawings
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EOT is a compact aluminium quarter-turn (90°) electric actuator for ball, butterfly and plug valves. Its small, light body suits tight pipe racks and skids, and it is available as on/off or 4–20 mA modulating. This model: max torque 200–600 N·m, on/off or modulating control, power supply AC110/220V; optional AC/DC24V, 3-ph AC380V, IP67 (optional IP68).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
