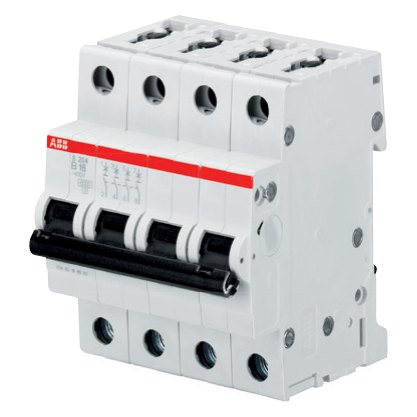

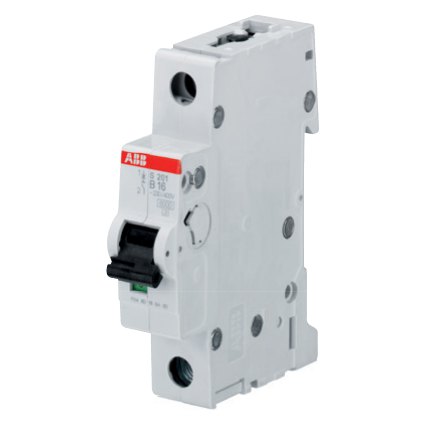

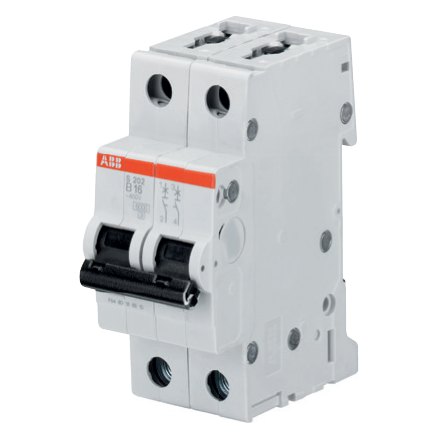

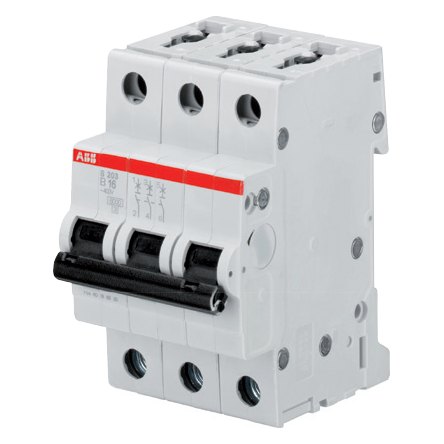

ABB S200-D supplementary protector, D curve, 0.5–63 A, 1–4 pole and 1+N / 3+N, UL 1077
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Supplementary protector (UL 1077)
- Series: S200-D
- Trip curve: D
- Poles: 1, 1+N, 2, 3, 3+N, 4
- Rated current (A): 0.5–63
- Breaking capacity: 6 kA
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1330 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S200-D |
| Technical | |
| Type | Supplementary protector (UL 1077) |
| Series | S200-D |
| Trip curve | D |
| Poles | 1, 1+N, 2, 3, 3+N, 4 |
| Rated current (A) | 0.5–63 |
| Breaking capacity | 6 kA |
| Rated voltage | 277/Y480 VAC; 60/110 VDC (1/2-pole) |
| Standard | UL 1077, CSA C22.2 No. 235 |
Datasheet
Download manufacturer datasheet (PDF)
ABB S200 series — supplementary protectors · UL 1077
Ordering information — catalogue numbers
| Rated current | 1 pole | 1+N poles | 2 poles | 3 poles | 3+N poles | 4 poles |
|---|---|---|---|---|---|---|
| 0.5 A | S201-D0.5 | S201-D0.5NA | S202-D0.5 | S203-D0.5 | S203-D0.5NA | S204-D0.5 |
| 1 A | S201-D1 | S201-D1NA | S202-D1 | S203-D1 | S203-D1NA | S204-D1 |
| 1.6 A | S201-D1.6 | S201-D1.6NA | S202-D1.6 | S203-D1.6 | S203-D1.6NA | S204-D1.6 |
| 2 A | S201-D2 | S201-D2NA | S202-D2 | S203-D2 | S203-D2NA | S204-D2 |
| 3 A | S201-D3 | S201-D3NA | S202-D3 | S203-D3 | S203-D3NA | S204-D3 |
| 4 A | S201-D4 | S201-D4NA | S202-D4 | S203-D4 | S203-D4NA | S204-D4 |
| 6 A | S201-D6 | S201-D6NA | S202-D6 | S203-D6 | S203-D6NA | S204-D6 |
| 8 A | S201-D8 | S201-D8NA | S202-D8 | S203-D8 | S203-D8NA | S204-D8 |
| 10 A | S201-D10 | S201-D10NA | S202-D10 | S203-D10 | S203-D10NA | S204-D10 |
| 13 A | S201-D13 | S201-D13NA | S202-D13 | S203-D13 | S203-D13NA | S204-D13 |
| 16 A | S201-D16 | S201-D16NA | S202-D16 | S203-D16 | S203-D16NA | S204-D16 |
| 20 A | S201-D20 | S201-D20NA | S202-D20 | S203-D20 | S203-D20NA | S204-D20 |
| 25 A | S201-D25 | S201-D25NA | S202-D25 | S203-D25 | S203-D25NA | S204-D25 |
| 32 A | S201-D32 | S201-D32NA | S202-D32 | S203-D32 | S203-D32NA | S204-D32 |
| 40 A | S201-D40 | S201-D40NA | S202-D40 | S203-D40 | S203-D40NA | S204-D40 |
| 50 A | S201-D50 | S201-D50NA | S202-D50 | S203-D50 | S203-D50NA | S204-D50 |
| 63 A | S201-D63 | S201-D63NA | S202-D63 | S203-D63 | S203-D63NA | S204-D63 |
Technical specifications
| Number of poles | 1, 2, 3, 4 |
|---|---|
| Trip curves | B, C, D, K, Z |
| Rated current | 0.5-63 A |
| Rated voltage | 277/Y480 VAC 60/110 VDC (1/2-pole) |
| Short circuit interrupt rating | 6 kA |
| Calibration temperature | 25 °C |
| Protection degree | IP 20 |
| Mounting position | Any |
| Mounting/installation | 35 mm DIN rail |
| Terminal/cable size | AWG 18-4 |
| Service life, mechanical | 20,000 operations |
| Ambient temperature | -25 °C to +55 °C |
| Shock resistance (IEC 60068-2-27) | 25 g - 2 shocks - 13 ms |
Features
- Energy limiting
- Fast breaking time (2.3–2.5 ms)
- Bus connection system
- Wide range of accessories
- Available with variable-depth handle mechanism
- CE certified and marked
- 35 mm DIN rail mounting
- Finger-safe, multi-function terminals
- Suitable for reverse feed
- UL 1077 recognized supplementary protector, UL file E76126

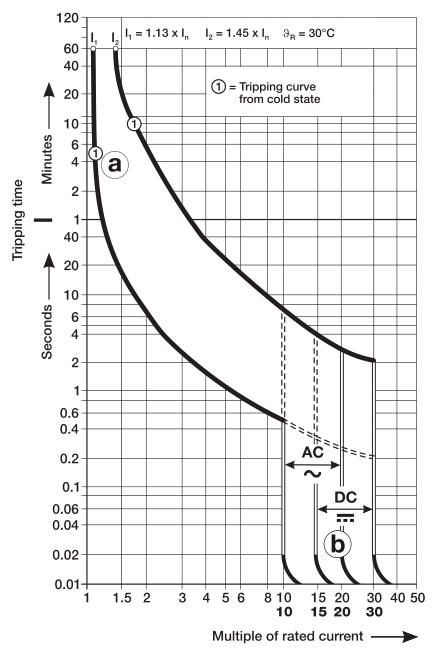

Trip curve — D
Internal resistance and power loss per pole
| Type | Rated current In | Device series B, C, D1) | Device series K | Device series Z | |||
|---|---|---|---|---|---|---|---|
| S200 and S200P | A | mΩ | W | mΩ | W | mΩ | W |
| 0.5 | 5500 | 1.4 | 6340 | 1.6 | 10100 | 2.5 | |
| 1 | 1440 | 1.4 | 1550 | 1.6 | 2270 | 2.3 | |
| 1.6 | 630 | 1.6 | 695 | 1.8 | 1100 | 2.8 | |
| 2 | 460 | 1.8 | 460 | 1.9 | 619 | 2.5 | |
| 3 | 150 | 1.3 | 165 | 1.5 | 202 | 1.8 | |
| 4 | 110 | 1.8 | 120 | 2.0 | 149 | 2.4 | |
| 6 | 55 | 2.0 | 52 | 1.9 | 104 | 3.7 | |
| 8 | 15 | 1.0 | 38 | 1.5 | 53.9 | 3.45 | |
| 10 | 13.3 | 1.3 | 12.6 | 2.0 | 17.5 | 1.7 | |
| 13 | 13.3 | 2.3 | 12.6 | 1.26 | — | — | |
| 16 | 7.0 | 1.8 | 7.7 | 2.0 | 10.9 | 2.8 | |
| 20 | 6.25 | 2.5 | 6.7 | 2.7 | 6.0 | 2.4 | |
| 25 | 5.0 | 3.2 | 4.6 | 2.9 | 4.1 | 2.6 | |
| 32 | 3.6 | 3.7 | 3.5 | 3.6 | 2.8 | 2.9 | |
| 40 | 3.0 | 4.8 | 2.8 | 4.5 | 2.5 | 4.1 | |
| 50 | 1.3 | 3.25 | 1.25 | 2.9 | 1.8 | 4.4 | |
| 63 | 1.2 | 4.8 | 0.7 | 5.2 | 1.3 | 5.2 |
Temperature derating — maximum operating current (A) at ambient temperature (B, C, D, K, Z)
| -40 °C / -40 °F | -30 °C / -22 °F | -20 °C / -4 °F | -10 °C / 14 °F | 0 °C / 32 °F | 10 °C / 50 °F | 20 °C / 68 °F | 30 °C / 86 °F | 40 °C / 104 °F | 50 °C / 122 °F | 60 °C / 140 °F | 70 °C / 158 °F |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.67 | 0.65 | 0.62 | 0.60 | 0.58 | 0.55 | 0.53 | 0.50 | 0.47 | 0.44 | 0.41 | 0.37 |
| 1.33 | 1.29 | 1.25 | 1.20 | 1.15 | 1.11 | 1.05 | 1.00 | 0.94 | 0.88 | 0.82 | 0.75 |
| 2.13 | 2.07 | 2.00 | 1.92 | 1.85 | 1.77 | 1.69 | 1.60 | 1.51 | 1.41 | 1.31 | 1.19 |
| 2.67 | 2.58 | 2.49 | 2.40 | 2.31 | 2.21 | 2.11 | 2.00 | 1.89 | 1.76 | 1.63 | 1.49 |
| 4.0 | 3.9 | 3.7 | 3.6 | 3.5 | 3.3 | 3.2 | 3.0 | 2.8 | 2.6 | 2.4 | 2.2 |
| 5.3 | 5.2 | 5.0 | 4.8 | 4.6 | 4.4 | 4.2 | 4.0 | 3.8 | 3.5 | 3.3 | 3.0 |
| 8.0 | 7.7 | 7.5 | 7.2 | 6.9 | 6.6 | 6.3 | 6.0 | 5.7 | 5.3 | 4.9 | 4.5 |
| 10.7 | 10.3 | 10.0 | 9.6 | 9.2 | 8.8 | 8.4 | 8.0 | 7.5 | 7.1 | 6.5 | 6.0 |
| 13.3 | 12.9 | 12.5 | 12.0 | 11.5 | 11.1 | 10.5 | 10.0 | 9.4 | 8.8 | 8.2 | 7.5 |
| 17.3 | 16.8 | 16.2 | 15.6 | 15.0 | 14.4 | 13.7 | 13.0 | 12.3 | 11.5 | 10.6 | 9.7 |
| 21.3 | 20.7 | 20.0 | 19.2 | 18.5 | 17.7 | 16.9 | 16.0 | 15.1 | 14.1 | 13.1 | 11.9 |
| 26.7 | 25.8 | 24.9 | 24.0 | 23.1 | 22.1 | 21.1 | 20.0 | 18.9 | 17.6 | 16.3 | 14.9 |
| 33.3 | 32.3 | 31.2 | 30.0 | 28.9 | 27.6 | 26.4 | 25.0 | 23.6 | 22.0 | 20.4 | 18.6 |
| 42.7 | 41.3 | 39.9 | 38.5 | 37.0 | 35.4 | 33.7 | 32.0 | 30.2 | 28.2 | 26.1 | 23.9 |
| 53.3 | 51.6 | 49.9 | 48.1 | 46.2 | 44.2 | 42.2 | 40.0 | 37.7 | 35.3 | 32.7 | 29.8 |
| 66.7 | 64.5 | 62.4 | 60.1 | 57.7 | 55.3 | 52.7 | 50.0 | 47.1 | 44.1 | 40.8 | 37.3 |
| 84.0 | 81.3 | 78.6 | 75.7 | 72.7 | 69.6 | 66.4 | 63.0 | 59.4 | 55.6 | 51.4 | 47.0 |
| 112.6 | 107.2 | 102.1 | 97.2 | 92.6 | 88.2 | 84.0 | 80.0 | 76.0 | 72.2 | 68.6 | 65.2 |
| 140.7 | 134.0 | 127.6 | 121.6 | 115.8 | 110.3 | 1050 | 100.0 | 95.0 | 90.3 | 85.7 | 81.5 |
| 175.9 | 167.5 | 159.5 | 151.9 | 114.7 | 137.8 | 131.3 | 125.0 | 118.8 | 113.8 | 107.2 | 101.8 |
Each row is one rated current; the 30 °C column equals the rated current.
Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
The ABB S200 is a compact, DIN-rail mounted supplementary protector to UL 1077 / CSA C22.2 No. 235 with thermal-magnetic protection, energy limiting and suitable for reverse feed. Versions with switched neutral (1+N, 3+N) are marked "NA" in the catalogue number.
D curve: magnetic trip at roughly 10–20 × In, for loads with high inrush current such as transformers, motors and capacitor banks.
Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
