Electrical

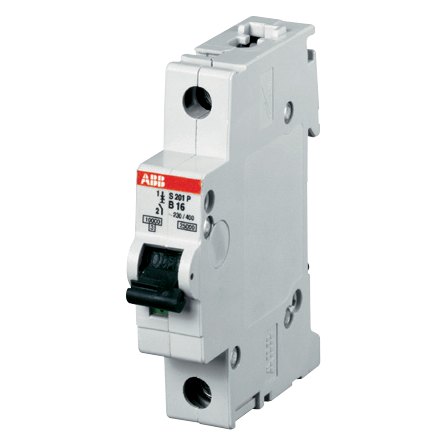

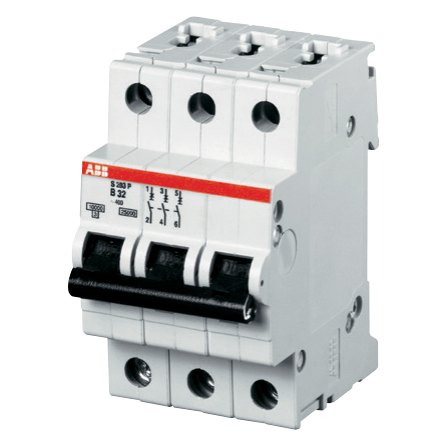

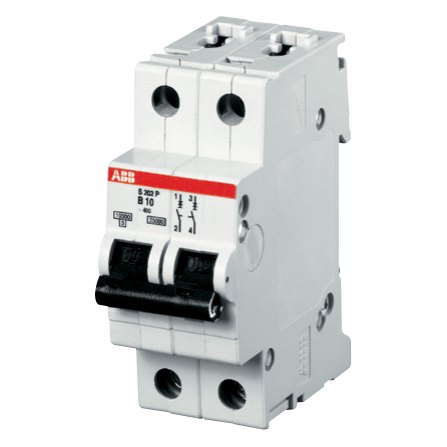

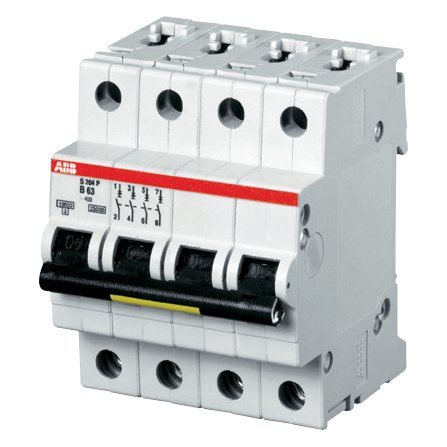

ABB S200P-D supplementary protector, D curve, 0.5–63 A, 1–4 pole, UL 1077

Part no.: BD-1335
Brand: ABB
Model: S200P-D
Catalogue no.: S201P-D0.5

Poles: 1

Rated current: 0.5 A

68 versions available · full ordering table in the datasheet

Available on order · sourced to your specification

Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

Type: Supplementary protector (UL 1077)
Series: S200P-D
Trip curve: D
Poles: 1, 2, 3, 4
Rated current (A): 0.5–63
Breaking capacity: 10 kA (up to 25 A), 6 kA (32–63 A)

Call +880 1713 552466

Genuine productsSourced from the manufacturer or authorised channels
Delivery across BangladeshDhaka, Chattogram and all industrial zones
After-sales supportInstallation guidance and warranty handling
Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.	BD-1335
Category	Miniature Circuit Breakers
Group	Electrical
Brand	ABB
Model	S200P-D
Technical
Type	Supplementary protector (UL 1077)
Series	S200P-D
Trip curve	D
Poles	1, 2, 3, 4
Rated current (A)	0.5–63
Breaking capacity	10 kA (up to 25 A), 6 kA (32–63 A)
Rated voltage	277/Y480 VAC
Standard	UL 1077, CSA C22.2 No. 235

Datasheet

Download manufacturer datasheet (PDF)

ABB S200 series — S200P high-performance supplementary protectors · UL 1077

Ordering information — catalogue numbers

Rated current	1 pole	2 poles	3 poles	4 poles
0.5 A	S201P-D0.5	S202P-D0.5	S203P-D0.5	S204P-D0.5
1 A	S201P-D1	S202P-D1	S203P-D1	S204P-D1
1.6 A	S201P-D1.6	S202P-D1.6	S203P-D1.6	S204P-D1.6
2 A	S201P-D2	S202P-D2	S203P-D2	S204P-D2
3 A	S201P-D3	S202P-D3	S203P-D3	S204P-D3
4 A	S201P-D4	S202P-D4	S203P-D4	S204P-D4
6 A	S201P-D6	S202P-D6	S203P-D6	S204P-D6
8 A	S201P-D8	S202P-D8	S203P-D8	S204P-D8
10 A	S201P-D10	S202P-D10	S203P-D10	S204P-D10
13 A	S201P-D13	S202P-D13	S203P-D13	S204P-D13
16 A	S201P-D16	S202P-D16	S203P-D16	S204P-D16
20 A	S201P-D20	S202P-D20	S203P-D20	S204P-D20
25 A	S201P-D25	S202P-D25	S203P-D25	S204P-D25
32 A	S201P-D32	S202P-D32	S203P-D32	S204P-D32
40 A	S201P-D40	S202P-D40	S203P-D40	S204P-D40
50 A	S201P-D50	S202P-D50	S203P-D50	S204P-D50
63 A	S201P-D63	S202P-D63	S203P-D63	S204P-D63

Technical specifications

Number of poles	1, 2, 3, 4
Trip curves	B, C, D, K, Z
Rated current	0.2-63 A
Rated voltage	277/Y480 VAC
Short circuit interrupt rating	10 kA (up to 25 A) 6 kA (32-63 A)
Calibration temperature	25 °C
Protection degree	IP 20
Mounting position	Any
Mounting/installation	35 mm DIN rail
Terminal/cable size	AWG 18-4
Service life, mechanical	20,000 operations
Ambient temperature	-25 °C to +55 °C
Shock resistance (IEC 60068-2-27)	25 g - 2 shocks - 13 ms

Features

Energy limiting
Fast breaking time (2.3–2.5 ms)
Bus connection system
Wide range of accessories
Available with variable-depth handle mechanism
CE certified and marked
35 mm DIN rail mounting
Finger-safe, multi-function terminals
Suitable for reverse feed
UL 1077 recognized supplementary protector, UL file E76126

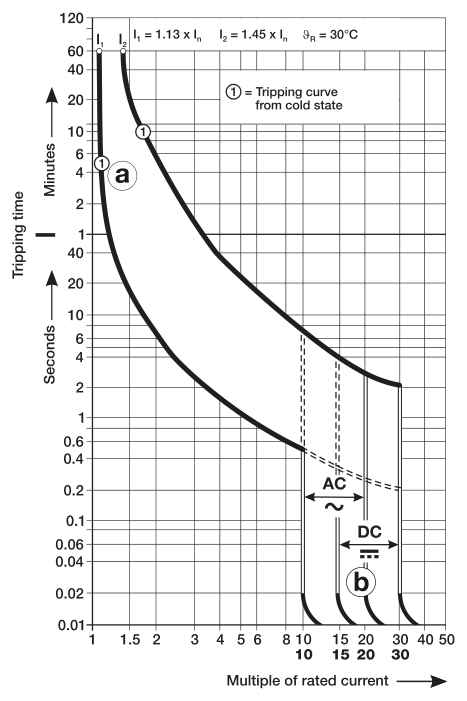

Trip curve — D

ABB S200P-D supplementary protector, D curve, 0.5–63 A, 1–4 pole, UL 1077 trip curve

Internal resistance and power loss per pole

Type	Rated current In	Device series B, C, D1)		Device series K		Device series Z
S200 and S200P	A	mΩ	W	mΩ	W	mΩ	W
	0.5	5500	1.4	6340	1.6	10100	2.5
	1	1440	1.4	1550	1.6	2270	2.3
	1.6	630	1.6	695	1.8	1100	2.8
	2	460	1.8	460	1.9	619	2.5
	3	150	1.3	165	1.5	202	1.8
	4	110	1.8	120	2.0	149	2.4
	6	55	2.0	52	1.9	104	3.7
	8	15	1.0	38	1.5	53.9	3.45
	10	13.3	1.3	12.6	2.0	17.5	1.7
	13	13.3	2.3	12.6	1.26	—	—
	16	7.0	1.8	7.7	2.0	10.9	2.8
	20	6.25	2.5	6.7	2.7	6.0	2.4
	25	5.0	3.2	4.6	2.9	4.1	2.6
	32	3.6	3.7	3.5	3.6	2.8	2.9
	40	3.0	4.8	2.8	4.5	2.5	4.1
	50	1.3	3.25	1.25	2.9	1.8	4.4
	63	1.2	4.8	0.7	5.2	1.3	5.2

Temperature derating — maximum operating current (A) at ambient temperature (B, C, D, K, Z)

-40 °C / -40 °F	-30 °C / -22 °F	-20 °C / -4 °F	-10 °C / 14 °F	0 °C / 32 °F	10 °C / 50 °F	20 °C / 68 °F	30 °C / 86 °F	40 °C / 104 °F	50 °C / 122 °F	60 °C / 140 °F	70 °C / 158 °F
0.67	0.65	0.62	0.60	0.58	0.55	0.53	0.50	0.47	0.44	0.41	0.37
1.33	1.29	1.25	1.20	1.15	1.11	1.05	1.00	0.94	0.88	0.82	0.75
2.13	2.07	2.00	1.92	1.85	1.77	1.69	1.60	1.51	1.41	1.31	1.19
2.67	2.58	2.49	2.40	2.31	2.21	2.11	2.00	1.89	1.76	1.63	1.49
4.0	3.9	3.7	3.6	3.5	3.3	3.2	3.0	2.8	2.6	2.4	2.2
5.3	5.2	5.0	4.8	4.6	4.4	4.2	4.0	3.8	3.5	3.3	3.0
8.0	7.7	7.5	7.2	6.9	6.6	6.3	6.0	5.7	5.3	4.9	4.5
10.7	10.3	10.0	9.6	9.2	8.8	8.4	8.0	7.5	7.1	6.5	6.0
13.3	12.9	12.5	12.0	11.5	11.1	10.5	10.0	9.4	8.8	8.2	7.5
17.3	16.8	16.2	15.6	15.0	14.4	13.7	13.0	12.3	11.5	10.6	9.7
21.3	20.7	20.0	19.2	18.5	17.7	16.9	16.0	15.1	14.1	13.1	11.9
26.7	25.8	24.9	24.0	23.1	22.1	21.1	20.0	18.9	17.6	16.3	14.9
33.3	32.3	31.2	30.0	28.9	27.6	26.4	25.0	23.6	22.0	20.4	18.6
42.7	41.3	39.9	38.5	37.0	35.4	33.7	32.0	30.2	28.2	26.1	23.9
53.3	51.6	49.9	48.1	46.2	44.2	42.2	40.0	37.7	35.3	32.7	29.8
66.7	64.5	62.4	60.1	57.7	55.3	52.7	50.0	47.1	44.1	40.8	37.3
84.0	81.3	78.6	75.7	72.7	69.6	66.4	63.0	59.4	55.6	51.4	47.0
112.6	107.2	102.1	97.2	92.6	88.2	84.0	80.0	76.0	72.2	68.6	65.2
140.7	134.0	127.6	121.6	115.8	110.3	1050	100.0	95.0	90.3	85.7	81.5
175.9	167.5	159.5	151.9	114.7	137.8	131.3	125.0	118.8	113.8	107.2	101.8

Each row is one rated current; the 30 °C column equals the rated current.

Approximate dimensions (mm)

Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)

Description

The ABB S200P is the high-performance member of the S200 family: a UL 1077 supplementary protector with 10 kA interrupting rating up to 25 A (6 kA from 32 to 63 A), DIN-rail mounted and compatible with the full S200 accessory range.

D curve: magnetic trip at roughly 10–20 × In, for loads with high inrush current such as transformers, motors and capacitor banks.

Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
