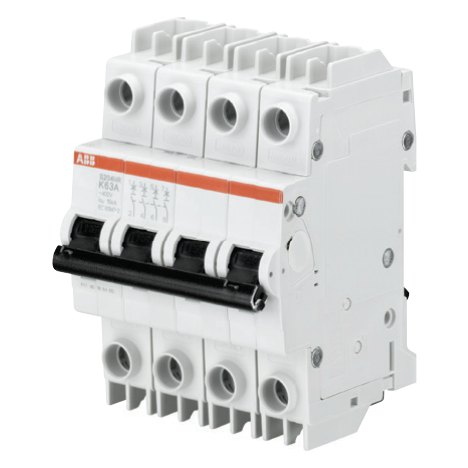

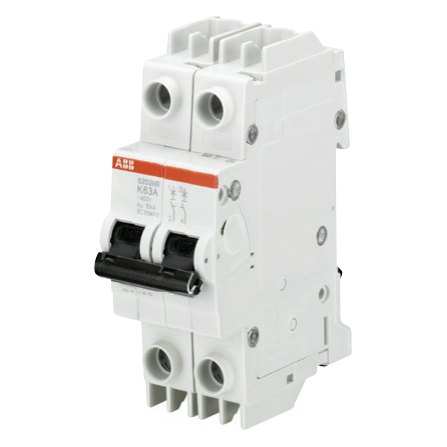

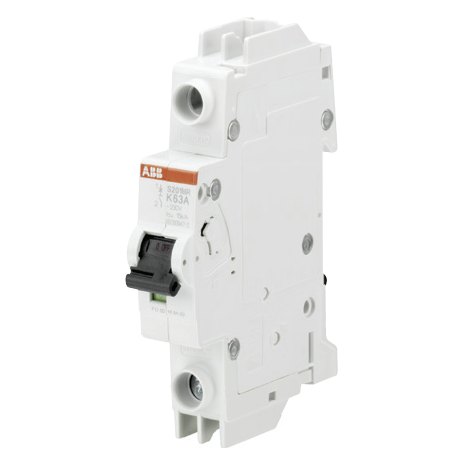

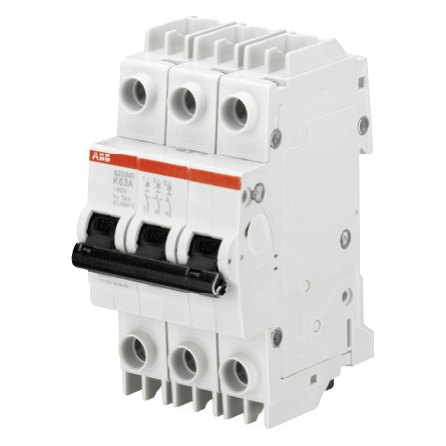

ABB S200MR-K supplementary protector with ring-tongue terminals, K curve, 0.2–63 A, 1–4 pole, UL 1077

Part no.: BD-1338
Brand: ABB
Model: S200MR-K
Catalogue no.: S201MR-K0.2

Poles: 1

Rated current: 0.2 A

100 versions available · full ordering table in the datasheet

Available on order · sourced to your specification

Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

Type: Supplementary protector (UL 1077)
Series: S200MR-K
Trip curve: K
Poles: 1, 2, 3, 4
Rated current (A): 0.2–63
Breaking capacity: 10 kA

Call +880 1713 552466

Genuine productsSourced from the manufacturer or authorised channels
Delivery across BangladeshDhaka, Chattogram and all industrial zones
After-sales supportInstallation guidance and warranty handling
Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.	BD-1338
Category	Miniature Circuit Breakers
Group	Electrical
Brand	ABB
Model	S200MR-K
Technical
Type	Supplementary protector (UL 1077)
Series	S200MR-K
Trip curve	K
Poles	1, 2, 3, 4
Rated current (A)	0.2–63
Breaking capacity	10 kA
Rated voltage	277/Y480 VAC
Standard	UL 1077, CSA C22.2 No. 235

Datasheet

Download manufacturer datasheet (PDF)

ABB S200 series — S200MR with ring-tongue terminals · UL 1077

Ordering information — catalogue numbers

Rated current	1 pole	2 poles	3 poles	4 poles
0.2 A	S201MR-K0.2	S202MR-K0.2	S203MR-K0.2	S204MR-K0.2
0.3 A	S201MR-K0.3	S202MR-K0.3	S203MR-K0.3	S204MR-K0.3
0.5 A	S201MR-K0.5	S202MR-K0.5	S203MR-K0.5	S204MR-K0.5
0.75 A	S201MR-K0.75	S202MR-K0.75	S203MR-K0.75	S204MR-K0.75
1 A	S201MR-K1	S202MR-K1	S203MR-K1	S204MR-K1
1.6 A	S201MR-K1.6	S202MR-K1.6	S203MR-K1.6	S204MR-K1.6
2 A	S201MR-K2	S202MR-K2	S203MR-K2	S204MR-K2
3 A	S201MR-K3	S202MR-K3	S203MR-K3	S204MR-K3
4 A	S201MR-K4	S202MR-K4	S203MR-K4	S204MR-K4
5 A	S201MR-K5	S202MR-K5	S203MR-K5	S204MR-K5
6 A	S201MR-K6	S202MR-K6	S203MR-K6	S204MR-K6
8 A	S201MR-K8	S202MR-K8	S203MR-K8	S204MR-K8
10 A	S201MR-K10	S202MR-K10	S203MR-K10	S204MR-K10
13 A	S201MR-K13	S202MR-K13	S203MR-K13	S204MR-K13
15 A	S201MR-K15	S202MR-K15	S203MR-K15	S204MR-K15
16 A	S201MR-K16	S202MR-K16	S203MR-K16	S204MR-K16
20 A	S201MR-K20	S202MR-K20	S203MR-K20	S204MR-K20
25 A	S201MR-K25	S202MR-K25	S203MR-K25	S204MR-K25
30 A	S201MR-K30	S202MR-K30	S203MR-K30	S204MR-K30
32 A	S201MR-K32	S202MR-K32	S203MR-K32	S204MR-K32
35 A	S201MR-K35	S202MR-K35	S203MR-K35	S204MR-K35
40 A	S201MR-K40	S202MR-K40	S203MR-K40	S204MR-K40
50 A	S201MR-K50	S202MR-K50	S203MR-K50	S204MR-K50
60 A	S201MR-K60	S202MR-K60	S203MR-K60	S204MR-K60
63 A	S201MR-K63	S202MR-K63	S203MR-K63	S204MR-K63

Technical specifications

Number of poles	1, 2, 3, 4
Trip curves	K
Rated current	0.2-63 A
Rated voltage	277/Y480 VAC
Short circuit interrupt rating	10 kA
Calibration temperature	25 °C
Protection degree	IP 20
Mounting position	Any
Mounting/installation	35 mm DIN rail
Terminal/cable size	AWG 18-4
Service life, mechanical	20,000 operations
Ambient temperature	-25 °C to +55 °C
Shock resistance (IEC 60068-2-27)	25 g - 2 shocks - 13 ms

Features

Energy limiting
Fast breaking time (2.3–2.5 ms)
Bus connection system
Wide range of accessories
Available with variable-depth handle mechanism
CE certified and marked
35 mm DIN rail mounting
Finger-safe, multi-function terminals
Suitable for reverse feed
UL 1077 recognized supplementary protector, UL file E76126
Ring-tongue terminals (M5, 2.8 Nm), insulated ring lugs only

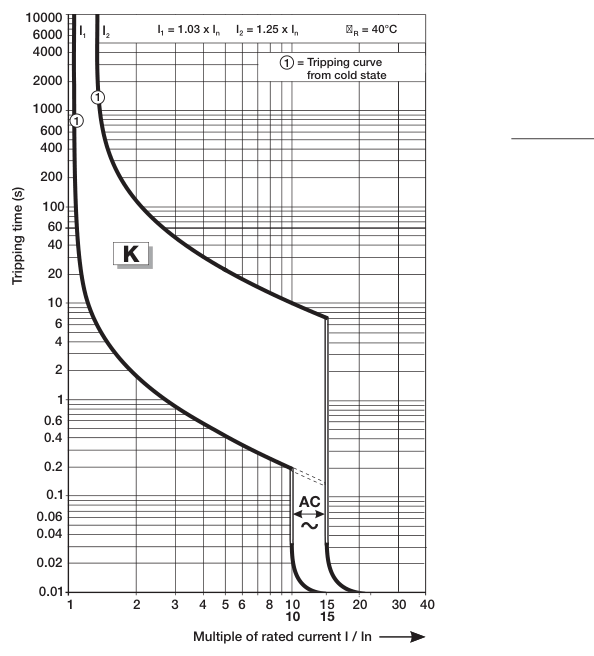

Trip curve — K

ABB S200MR-K supplementary protector with ring-tongue terminals, K curve, 0.2–63 A, 1–4 pole, UL 1077 trip curve

Internal resistance and power loss per pole

Rated current	Internal resistance per pole	Power loss per pole
A	mΩ	W
0.2	25300	1.01
0.3	13700	1.23
0.5	4740	1.19
0.75	2067	1.16
1	1270	1.27
1.5	610	1.56
2	442	1.77
3	140	1.26
4	109	1.75
5	50	1.26
6	54	1.94
8	22	1.41
10	18.2	1.82
13	14.8	2.50
15	8.1	1.83
16	11.1	2.83
20	8.5	3.40
25	5.5	3.43
30	3.8	3.39
32	4.6	4.70
35	3.9	4.76
40	2.8	4.40
50	1.7	4.25
60	1.7	6.18
63	1.9	7.56

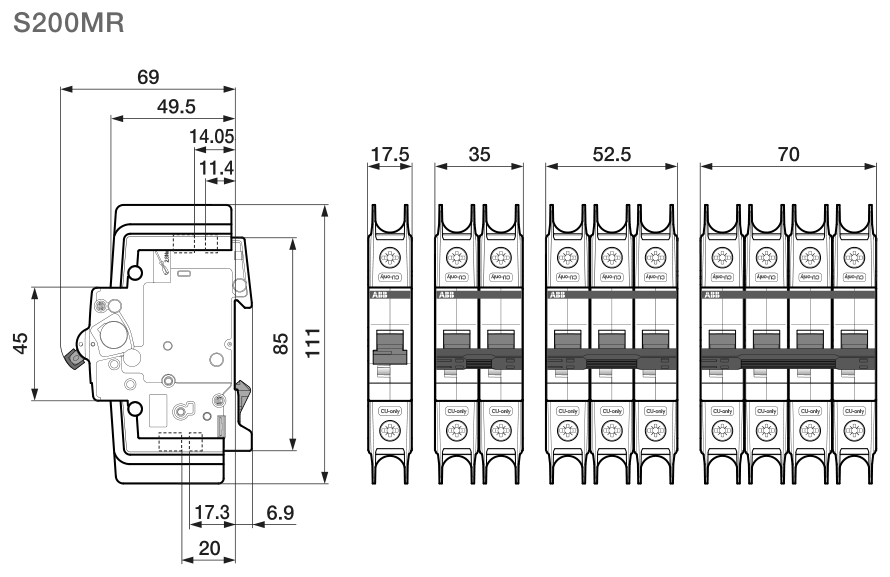

Approximate dimensions (mm)

Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)

Description

The ABB S200MR is the ring-tongue terminal version of the S200 supplementary protector (UL 1077), with 10 kA interrupting rating, for panels wired with insulated ring lugs.

K curve: close thermal protection with a high magnetic threshold, so motors, transformers and other inductive loads start without nuisance tripping.

Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
