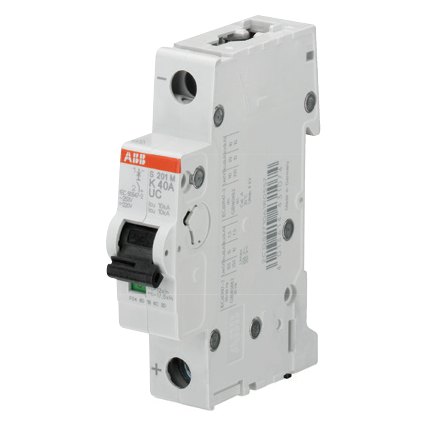

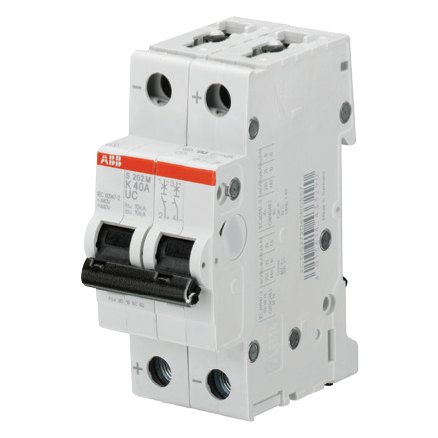

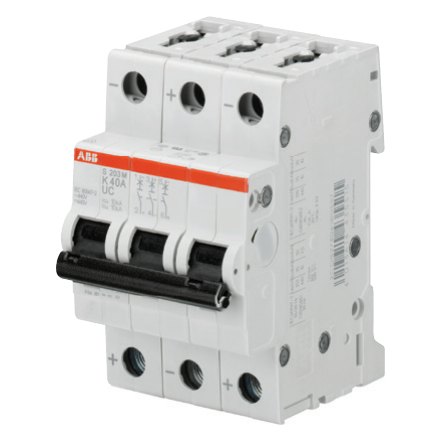

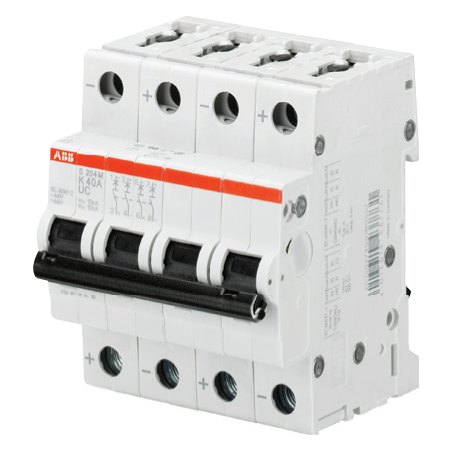

ABB S200MUC-Z AC/DC supplementary protector, Z curve, 0.5–63 A, 1–4 pole, UL 1077
Electrical

ABB S200MUC-Z AC/DC supplementary protector, Z curve, 0.5–63 A, 1–4 pole, UL 1077

Part no.
BD-1341
Brand
ABB
Model
S200MUC-Z
Catalogue no.
S201MUC-Z0.5
Poles: 1
Rated current: 0.5 A

84 versions available · full ordering table in the datasheet

Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Supplementary protector (UL 1077)
  • Series: S200MUC-Z
  • Trip curve: Z
  • Poles: 1, 2, 3, 4
  • Rated current (A): 0.5–63
  • Breaking capacity: 10 kA (DC), 6 kA (AC)
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1341
CategoryMiniature Circuit Breakers
GroupElectrical
BrandABB
ModelS200MUC-Z
Technical
TypeSupplementary protector (UL 1077)
SeriesS200MUC-Z
Trip curveZ
Poles1, 2, 3, 4
Rated current (A)0.5–63
Breaking capacity10 kA (DC), 6 kA (AC)
Rated voltage277/Y480 VAC; 250/500 VDC (1/2-pole)
StandardUL 1077, CSA C22.2 No. 235

Datasheet

Download manufacturer datasheet (PDF)

ABB S200 series — S200MUC AC/DC supplementary protectors · UL 1077

Ordering information — catalogue numbers

Rated current1 pole2 poles3 poles4 poles
0.5 AS201MUC-Z0.5S202MUC-Z0.5S203MUC-Z0.5S204MUC-Z0.5
1 AS201MUC-Z1S202MUC-Z1S203MUC-Z1S204MUC-Z1
1.6 AS201MUC-Z1.6S202MUC-Z1.6S203MUC-Z1.6S204MUC-Z1.6
2 AS201MUC-Z2S202MUC-Z2S203MUC-Z2S204MUC-Z2
3 AS201MUC-Z3S202MUC-Z3S203MUC-Z3S204MUC-Z3
4 AS201MUC-Z4S202MUC-Z4S203MUC-Z4S204MUC-Z4
5 AS201MUC-Z5S202MUC-Z5S203MUC-Z5S204MUC-Z5
6 AS201MUC-Z6S202MUC-Z6S203MUC-Z6S204MUC-Z6
8 AS201MUC-Z8S202MUC-Z8S203MUC-Z8S204MUC-Z8
10 AS201MUC-Z10S202MUC-Z10S203MUC-Z10S204MUC-Z10
15 AS201MUC-Z15S202MUC-Z15S203MUC-Z15S204MUC-Z15
16 AS201MUC-Z16S202MUC-Z16S203MUC-Z16S204MUC-Z16
20 AS201MUC-Z20S202MUC-Z20S203MUC-Z20S204MUC-Z20
25 AS201MUC-Z25S202MUC-Z25S203MUC-Z25S204MUC-Z25
30 AS201MUC-Z30S202MUC-Z30S203MUC-Z30S204MUC-Z30
32 AS201MUC-Z32S202MUC-Z32S203MUC-Z32S204MUC-Z32
35 AS201MUC-Z35S202MUC-Z35S203MUC-Z35S204MUC-Z35
40 AS201MUC-Z40S202MUC-Z40S203MUC-Z40S204MUC-Z40
50 AS201MUC-Z50S202MUC-Z50S203MUC-Z50S204MUC-Z50
60 AS201MUC-Z60S202MUC-Z60S203MUC-Z60S204MUC-Z60
63 AS201MUC-Z63S202MUC-Z63S203MUC-Z63S204MUC-Z63

Technical specifications

Number of poles1, 2, 3, 4
Trip curvesC, K, Z
Rated current0.2-63 A
Rated voltage277/Y480 VAC
250/500 VDC (1/2-pole)
Short circuit interrupt rating10 kA (DC)
6 kA (AC)
Calibration temperature25 °C
Protection degreeIP 20
Mounting positionAny
Mounting/installation35 mm DIN rail
Terminal/cable sizeAWG 18-4
Service life, mechanical20,000 operations
Ambient temperature-25 °C to +55 °C
Shock resistance (IEC 60068-2-27)25 g - 2 shocks - 13 ms

Features

  • Energy limiting
  • Fast breaking time (2.3–2.5 ms)
  • Bus connection system
  • Wide range of accessories
  • Available with variable-depth handle mechanism
  • CE certified and marked
  • 35 mm DIN rail mounting
  • Finger-safe, multi-function terminals
  • Suitable for reverse feed
  • UL 1077 recognized supplementary protector, UL file E76126
  • Universal current (AC and DC), non-polarised

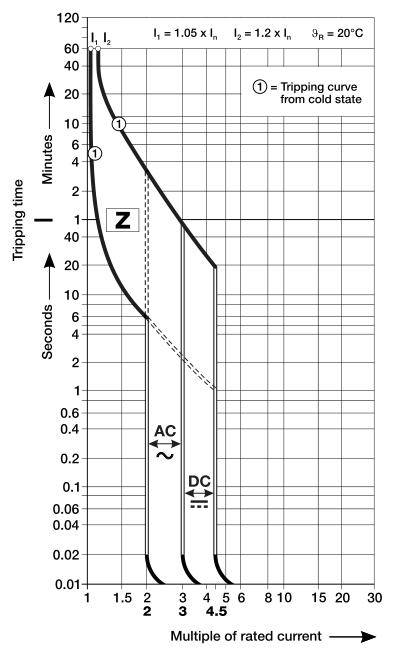

Trip curve — Z

ABB S200MUC-Z AC/DC supplementary protector, Z curve, 0.5–63 A, 1–4 pole, UL 1077 trip curve

Permissible DC voltages — examples by number of poles (supply from below / above)

Voltage between conductors Un250 VDC500 VDC500 VDC500 VDC500 VDC
Voltage between conductor and ground Un250 VDC250 VDC500 VDC250 VDC250 VDC
MCB1-pole S201MUC2-pole S202MUC2-pole S202MUC2-pole S202MUC4-pole S204MUC
Supply from belowSK 0114 Z 94
Supply from aboveSK 0115 Z 94

Permissible DC voltages — examples by system grounding

Voltage between conductors Un500 VDC all-pole disconnection500 VDC 1-pole disconnection500 VDC all-pole disconnection
Voltage between conductor and ground Un250 VDC– circuit symmetrically grounded250 VDC– unsymmetrically grounded250 VDC– circuit ungrounded or unsymmetrically grounded
MCB2-pole S202MUC2-pole S202MUC4-pole S204MUC
Supply from belowSK 0196 Z 98

Approximate dimensions (mm)

S200, S200P, S200MUC dimensions

Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)

Description

The ABB S200MUC is a universal-current (AC/DC) supplementary protector to UL 1077, rated 277/Y480 VAC and 250 VDC per pole (500 VDC with 2 poles in series), non-polarised and DIN-rail mounted.

Z curve: very low magnetic threshold (roughly 2–3 × In), for sensitive electronics, semiconductors and measuring/voltage-transformer circuits.

Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
