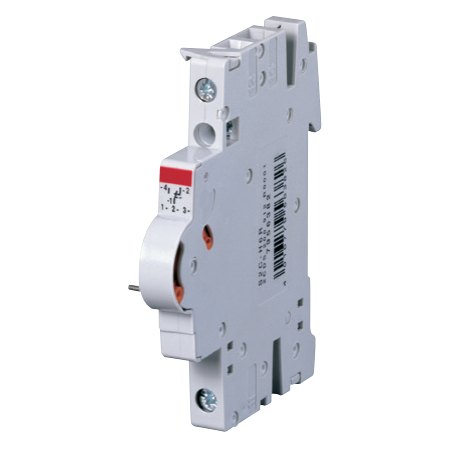

ABB S2C-H6R auxiliary contacts for S200 / S200P / S200MR / S200MUC, right-side mounting
Contact: Auxiliary contact 1 CO
4 versions available · full ordering table in the datasheet
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Auxiliary contact
- Series: S2C-H6..R
- Suitable for: ABB S200, S200P, S200MR and S200MUC supplementary protectors
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1363 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S2C-H6..R |
| Technical | |
| Type | Auxiliary contact |
| Series | S2C-H6..R |
| Suitable for | ABB S200, S200P, S200MR and S200MUC supplementary protectors |
Datasheet
Download manufacturer datasheet (PDF)
ABB S200 series accessories · UL 1077
Ordering information
| Contact | Catalogue no. |
|---|---|
| Auxiliary contact 1 CO | S2C-H6R |
| Auxiliary contact 1 NO / 1 NC | S2C-H6-11R |
| Auxiliary contact 2 NO | S2C-H6-20R |
| Auxiliary contact 2 NC | S2C-H6-02R |
Technical data — S2C-H6R / S2C-S6R
| Rated current | 10 |
|---|---|
| Rated voltage AC/DC | 24 |
| Contact | 1 pole, single throw |
| Connection capacity mm2 | 18-14 AWG (0.75...2.5) |
| Tightening torque | 11 in. lbs (1.2 Nm) |
| Shock resistance acc. to DIN IEC 68-2-6 | 5 g, 20 frequency cycles 5...150...5 Hz at 24 VAC/DC, 5 mA auto-reclosing < 10 ms |
| Mechanical service life | 10,000 operations |
Compatibility
| Use with | ABB S200, S200P, S200MR and S200MUC supplementary protectors |
|---|
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Auxiliary contacts that signal whether the protector is in the ON or OFF position, field-mountable on the right-hand side.
