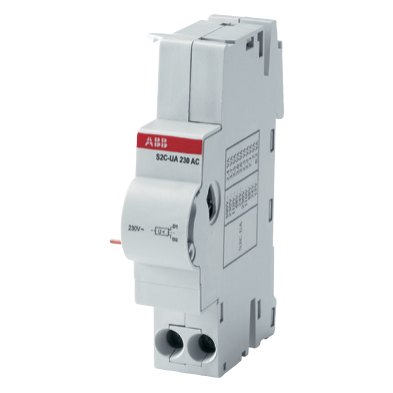

ABB S2C-UA undervoltage release for S200 family, 12 V DC – 400 V AC
Control voltage: 12 VDC
10 versions available · full ordering table in the datasheet
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Undervoltage release
- Series: S2C-UA
- Suitable for: ABB S200, S200P, S200MR and S200MUC supplementary protectors
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1366 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S2C-UA |
| Technical | |
| Type | Undervoltage release |
| Series | S2C-UA |
| Suitable for | ABB S200, S200P, S200MR and S200MUC supplementary protectors |
Datasheet
Download manufacturer datasheet (PDF)
ABB S200 series accessories · UL 1077
Ordering information
| Control voltage | Catalogue no. |
|---|---|
| 12 VDC | S2C-UA12DC |
| 24 VAC | S2C-UA24AC |
| 24 VDC | S2C-UA24DC |
| 48 VAC | S2C-UA48AC |
| 48 VDC | S2C-UA48DC |
| 110 VAC | S2C-UA110AC |
| 110 VDC | S2C-UA110DC |
| 230 VAC | S2C-UA230AC |
| 230 VDC | S2C-UA230DC |
| 400 VAC | S2C-UA400AC |
Technical data
| S2C-UA 12 DC | S2C-UA 24 AC | S2C-UA 24 DC | S2C-UA 48 AC | S2C-UA 48 DC | S2C-UA 110 AC | S2C-UA 110 DC | S2C-UA 230 AC | S2C-UA 230 DC | S2C-UA 400 AC | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Standards | IEC/EN 60947-1110...415 V | ||||||||||
| Rated voltage | AC DC | 12 V | 24 V | 24 V | 48 V | 48 V | 110 V | 110 V | 230 AC | 230 V | 400 V |
| Frequency | 50 ... 60 HZ | ||||||||||
| Release trip | 0.35 UnOVO 0.7 Un V | ||||||||||
| Terminals | 2 x 16/2 x 1.5 AWG/mm2 | ||||||||||
| Consumption | 0.2 VA | 3.6 VA | 2 VA | 3.6 VA | 2.1 VA | 3.5 VA | 2.2 VA | 3.7 VA | 2.3 VA | 2.4 VA | |
| Resistance to corrosion | constant atmosphere: 23/83 – 40/93 – 55/20; variable atmosphere: 25/95 – 40/93 °C/RH | ||||||||||
| Protection degree | IPXXB / IP2X | ||||||||||
| Tightening torque | 3.5/0.4 in. Ibs/Nm |
Compatibility
| Use with | ABB S200, S200P, S200MR and S200MUC supplementary protectors |
|---|
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Undervoltage release: when control voltage drops below about 50 % of rated voltage the release opens the protector, and it cannot be switched on again until proper control voltage is applied to the coil.
