Quarter-turn electric actuator EFM1 / EFMA, small, 35–50 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Quarter-turn electric
- Series: EFM
- Max torque: 35–50 N·m
- Control: On/off
- Power supply: 1-ph AC/DC24V, AC110–240V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1298 |
| Category | Quarter-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Quarter-turn electric |
| Series | EFM |
| Max torque | 35–50 N·m |
| Control | On/off |
| Power supply | 1-ph AC/DC24V, AC110–240V |
| Ingress protection | IP67 (optional IP68) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Overload Protection | In the event of a valve jam, the power supply will automatically shut down to avoid any further damage to the valve or actuator. |
| Operational Safety | To ensure the safe operation of the motor, the motor winding includes a temperature control switch that can detect the motor's temperature and prevent overheating issues. |
| Voltage Protection | The system includes protection against both high and low voltage scenarios. |
| Applicable valve | Ball Valve; Butterfly Valve |
| Anti-corrosion Protection | The enclosure is made of epoxy resin and is NEMA 4X certified, with the option for customized painting to meet customer needs. |
| Ingress Protection | IP67 is standard, Optional: IP68( Maximum 7m; Max: 72 hours) |
| Fireproofing Grade | A heat-resistant enclosure that meets the necessary criteria in different situations where fire protection is required. |
| 360° Position Indicator | Adopts high strength, anti-sunlight and RoHS-compliant plastic 3D window indicator. Users are able to observe the stroke position of the actuator within the 360° visual angle as thereis no dead angles. |
Standard specification
| Material of Actuator Body | Aluminum Alloy |
|---|---|
| Control Mode | On-off Type |
| Torque Range | 30-50N·m |
| Running Time | 11-13s |
| Applicable Voltage | 1 phase:AC/DC24V / AC110V / AC220V / AC230V /AC240V |
| Ambient Temperature | -25°C…..70 °C; Optional: -40°C…..60 °C |
| Anti-vibration Level | JB/T8219 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP67, Optional: IP68( Maximum 7m; Max: 72 hours) |
| Connection Size | ISO5211 |
| Motor Specifications | Class F, with thermal protector up to +135°C (+275°F); Optional : Class H |
| Working System | On-off Type: S2-15 min, no more than 600 times per hour start |
| On/off Type Signal | Input Signal: Built- in contacts for 5A@ 250Vac Signal Feedback: 1. Opening stroke limit, closing stroke limit 2. Opening over torque, closing over torque 3. Optional: Semi-modulating type-position feedback potentiometer 4. Optional: 4-20 mA to send Malfunction Feedback: Integrated fault alarm; Motor overheating, over torque and such contacts; Optional: Undercurrent protection contact |
| Indication | 3D opening indicator |
| Other Function | 1. Moisture-resistant heaters (anti-moisture device) 2. Torque protection 3. Motor overheat protection |
| Modulating type signal | Input 4–20 mA / 0–10 V / 2–10 V; input impedance 250 Ω (4–20 mA). Output 4–20 mA / 0–10 V / 2–10 V; output impedance ≤750 Ω (4–20 mA). Repeatability and linearity within ±1% of full valve stroke. Signal reverse: supported. Loss-of-signal mode setting: supported. Dead zone ≤2.5%. |
| Other functions | Phase correction (3-phase supply only); torque protection; motor overheat protection; moisture-resistant heater |
Performance parameters — EFMB / EFM / EOM series
| Model | Power (W) | Max torque N·m (AC110/220V, AC/DC24V) | Max torque N·m (AC220/380V 3-ph) | Max torque lbf·in (1-ph) | Max torque lbf·in (3-ph) | Running time s (AC110/220V 50 Hz) | Running time s (AC380V 3-ph 50 Hz) | Running time s (AC/DC24V) | Running time s (fail-safe) | ISO 5211 | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EFM1-(H) | 10 | 35 | — | 310 | — | 11 | — | 8 | 8 | F03/F05/F07 | Manual wrench; option: handwheel |
| EFMA-(H) | 10 | 50 | — | 443 | — | 15 | — | 10 | 10 | F03/F05/F07 | Manual wrench; option: handwheel |
1. Standard configuration. 2. Rated torque is 75% of the max torque. 3. Motor insulation is class F; class H is optional. 4. Running time at 60 Hz is 5/6 of that at 50 Hz; max output torque is the same. 5. 3-phase output does not apply to EFM1-(H) and EFMA-(H). 6. EOM3A / 7A / 8A / 12: on/off type duty S2-8 min; modulating type S4-15%.

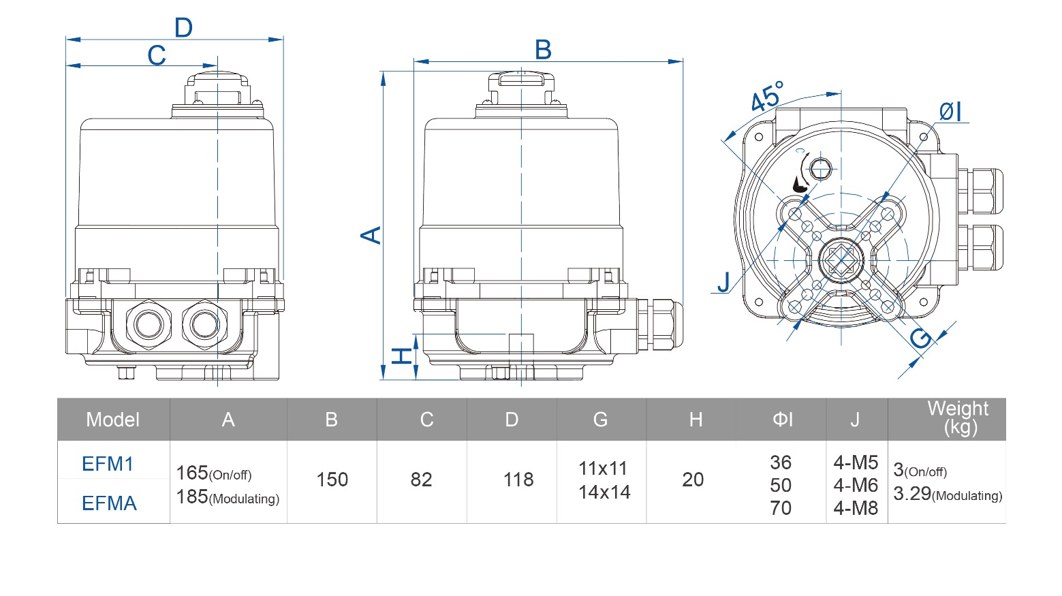

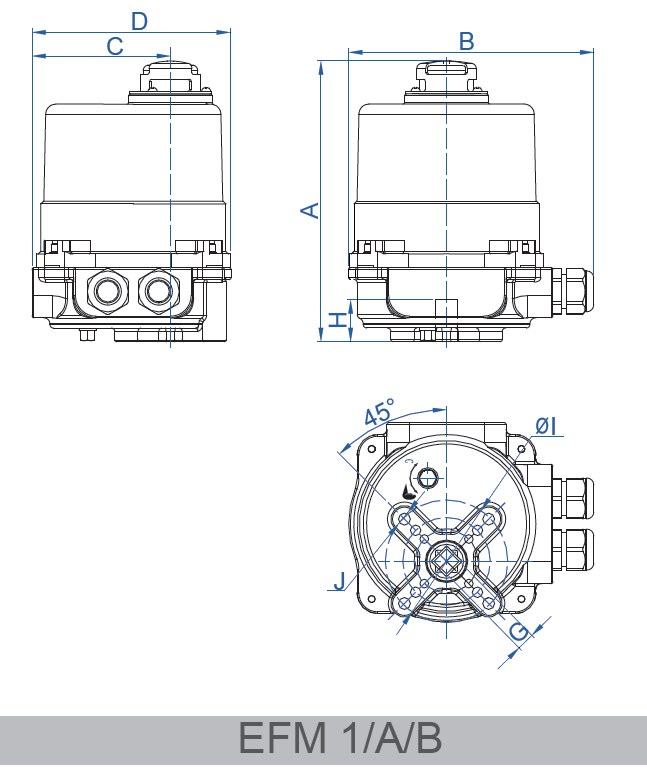

Dimension drawings
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EFM is a small quarter-turn (90°) electric actuator for small ball and butterfly valves, with an aluminium-alloy body, over-torque protection and a moisture heater. This model: max torque 35–50 N·m, on/off control, power supply 1-ph AC/DC24V, AC110–240V, IP67 (optional IP68).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
