Quarter-turn electric actuator EFM1-H / EFMA-H / EFMB-H, handwheel, 35–80 N·m
Valve Actuators

Quarter-turn electric actuator EFM1-H / EFMA-H / EFMB-H, handwheel, 35–80 N·m

Part no.
BD-1300
Brand
FLOWINN
Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Quarter-turn electric
  • Series: EFMB
  • Max torque: 35–80 N·m
  • Control: On/off or modulating
  • Power supply: 1-ph AC/DC24V, AC110–240V
  • Ingress protection: IP65
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1300
CategoryQuarter-Turn Electric Actuators
GroupValve Actuators
BrandFLOWINN
Technical
TypeQuarter-turn electric
SeriesEFMB
Max torque35–80 N·m
ControlOn/off or modulating
Power supply1-ph AC/DC24V, AC110–240V
Ingress protectionIP65
ManufacturerFLOWINN (Shanghai)

Datasheet

FLOWINN EFMB series

Technical features

Manufacturer warranty2 years
Overload ProtectionThe power will automatically shut off when the valve jam occurs. Thus preventing further damage to the valve and actuator
Operational SafetyF grade insulation motor. The motor winding has a temperature control switch to sense the temperature of the motor to protect the overheating issues, thus ensures the operational safety of the motor.
Voltage ProtectionProtection against the high and low voltage situations.
Applicable valveBall Valve; Butterfly Valve
Anti-corrosion ProtectionEpoxy resin enclosure meets NEMA 4X, customer-special painting is available
Ingress ProtectionIP65
Fireproofing GradeHigh temperature fireproof enclosure meets requirements in different situation

Standard specification

Material of Actuator BodyAluminum Alloy
Control ModeOn-off Type & Modulating Type
Torque Range35-80N·m
Running Time11-22s
Applicable Voltage1 phase: AC/DC24V / AC110V / AC220V / AC230V /AC240V
Ambient Temperature-25°C…..70 °C; Optional: -40°C…..60 °C
Anti-vibration LevelJB/T8219
Noise LevelLess than 75 dB within 1m
Ingress ProtectionIP65
Connection SizeISO5211
Motor SpecificationsClass F, with thermal protector up to +135°C (+275°F); Optional : Class H
Working SystemOn-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start; Optional: 1200 times per hour
On/off Type SignalInput Signal: AC/DC 24 input control or AC 110/220v input control Signal Feedback: 1. Close the valve contact 2. Open the valve contact 3. Optional: Closing torque signal contact Local/remote contacts 4. Integrated fault contact 4~20 mA to send. Malfunction Feedback: Integrated fault alarm; Motor overheating; Optional: Undercurrent protection contact
Modulating Type SignalInput Signal: 4-20mA; 0-10V; 2-10V Input impedance: 250Ω (4-20mA) Output signal: 4-20mA; 0-10V; 2-10V Output impedance: ≤750Ω (4-20mA); Repeatability and linearity within ±1% of full valve stroke Signal Reverse: Support Loss Signal Mode Setting: Support Dead Zone: ≤2.5%
Indication3D opening indicator
Other Function1. Phase correction(3-phase power supply only) 2. Torque protection 3. Motor overheat protection 4. Moisture- resistant heaters(anti-moisture device)

Performance parameters — EFMB / EFM / EOM series

ModelPower (W)Max torque N·m (AC110/220V, AC/DC24V)Max torque N·m (AC220/380V 3-ph)Max torque lbf·in (1-ph)Max torque lbf·in (3-ph)Running time s (AC110/220V 50 Hz)Running time s (AC380V 3-ph 50 Hz)Running time s (AC/DC24V)Running time s (fail-safe)ISO 5211Remarks
EFM1-(H)1035—310—11—88F03/F05/F07Manual wrench; option: handwheel
EFMA-(H)1050—443—15—1010F03/F05/F07Manual wrench; option: handwheel
EFMB-H1080—708—22—1515F03/F05/F07Handwheel

1. Standard configuration. 2. Rated torque is 75% of the max torque. 3. Motor insulation is class F; class H is optional. 4. Running time at 60 Hz is 5/6 of that at 50 Hz; max output torque is the same. 5. 3-phase output does not apply to EFM1-(H) and EFMA-(H). 6. EOM3A / 7A / 8A / 12: on/off type duty S2-8 min; modulating type S4-15%.

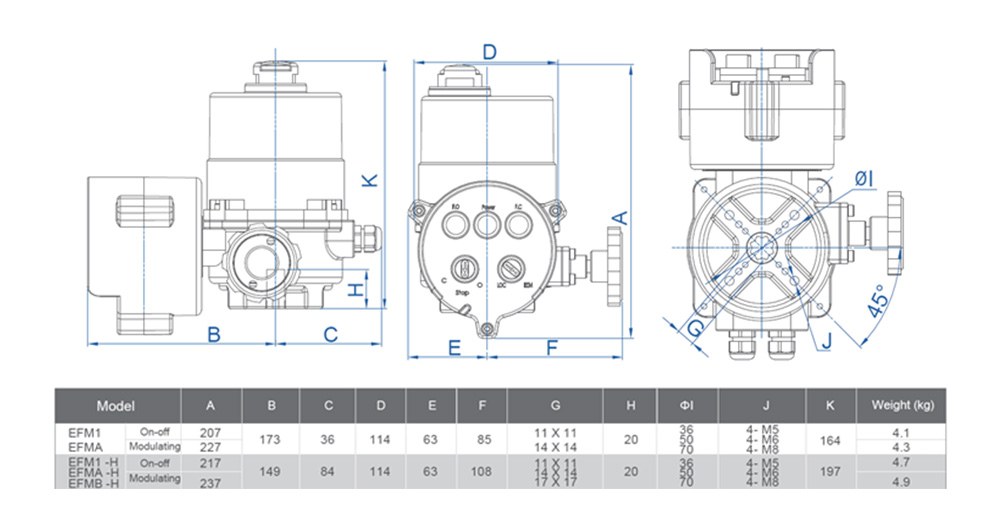

Dimension drawing

EFMB dimension drawing

Notes

Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering.

Description

The FLOWINN EFMB is a small quarter-turn (90°) electric actuator for small ball and butterfly valves, with an aluminium-alloy body, over-torque protection and a moisture heater. This model: max torque 35–80 N·m, on/off or modulating control, power supply 1-ph AC/DC24V, AC110–240V, IP65.

Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
