Quarter-turn electric actuator EOM2–EOM9, basic, 100–2300 N·m
Valve Actuators

Quarter-turn electric actuator EOM2–EOM9, basic, 100–2300 N·m

Part no.
BD-1301
Brand
FLOWINN
Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Quarter-turn electric
  • Series: EOM
  • Max torque: 100–2300 N·m
  • Control: On/off
  • Power supply: 1-ph AC/DC24V, AC110–240V; 3-ph AC220–550V; DC24V
  • Ingress protection: IP67 (optional IP68)
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1301
CategoryQuarter-Turn Electric Actuators
GroupValve Actuators
BrandFLOWINN
Technical
TypeQuarter-turn electric
SeriesEOM
Max torque100–2300 N·m
ControlOn/off
Power supply1-ph AC/DC24V, AC110–240V; 3-ph AC220–550V; DC24V
Ingress protectionIP67 (optional IP68)
ManufacturerFLOWINN (Shanghai)

Datasheet

FLOWINN EOM series

Technical features

Manufacturer warranty2 years
Overload ProtectionIf the valve becomes jammed, the power will automatically shut off to prevent any additional damage to the valve and actuator.
Operational SafetyThe motor's winding features a temperature control switch that detects the motor's temperature to protect against overheating and ensure safe operation of the F-grade insulation motor.
Voltage ProtectionThe design includes protection against voltage fluctuations, including both high and low levels.
Applicable valveBall Valve; Butterfly Valve
Anti-corrosion ProtectionThe epoxy resin enclosure is designed to meet NEMA 4X standards and can be painted with a customer-specific color.
Ingress ProtectionIP67 is standard, Optional: IP68( Maximum 7m; Max: 72 hours)
Fireproofing GradeIn a range of situations, a high-temperature enclosure that provides fire protection and meets requirements.

Standard specification

Material of Actuator BodyAluminum Alloy
Control ModeSwitch Type
Torque Range100-2300N·m
Running Time19-47s
Applicable Voltage1 phase:AC/DC24V / AC110V / AC220V / AC230V /AC240V 3 phase:AC220V-550V DC24V
Ambient Temperature-25°C…..70 °C; Optional: -40°C…..60 °C
Anti-vibration LevelJB/T8219
Noise LevelLess than 75 dB within 1m
Ingress ProtectionIP67, Optional: IP68( Maximum 7m; Max: 72 hours)
Connection SizeISO5211
Motor SpecificationsGrade F, with thermal protector up to +135°C (+275°F); Optional : Grade H
Working SystemSwitch Type: S2-15 min, no more than 600 times per hour start Optional: 1200 times per hour
On/off type signalInput: AC/DC24V input control or AC110/220V input control. Feedback: valve-closed contact; valve-open contact; optional closing-torque contact and local/remote contacts; integrated fault contact; 4–20 mA transmitter. Malfunction feedback: integrated fault alarm, motor overheating; optional undercurrent protection contact.
Modulating type signalInput 4–20 mA / 0–10 V / 2–10 V; input impedance 250 Ω (4–20 mA). Output 4–20 mA / 0–10 V / 2–10 V; output impedance ≤750 Ω (4–20 mA). Repeatability and linearity within ±1% of full valve stroke. Signal reverse: supported. Loss-of-signal mode setting: supported. Dead zone ≤2.5%.
IndicationPointer indicator
Other functionsPhase correction (3-phase supply only); torque protection; motor overheat protection; moisture-resistant heater

Performance parameters — EFMB / EFM / EOM series

ModelPower (W)Max torque N·m (AC110/220V, AC/DC24V)Max torque N·m (AC220/380V 3-ph)Max torque lbf·in (1-ph)Max torque lbf·in (3-ph)Running time s (AC110/220V 50 Hz)Running time s (AC380V 3-ph 50 Hz)Running time s (AC/DC24V)Running time s (fail-safe)ISO 5211Remarks
EOM24010010088588519191414F05/F07/F10/F12Handwheel, planetary gear
EOM3402002001770177039392828F05/F07/F10/F12Handwheel, planetary gear
EOM3A403003002655265539392828F05/F07/F10/F12Handwheel, planetary gear
EOM4904004003540354029292121F10/F12/F14Handwheel, planetary gear
EOM5906006005310531039392828F10/F12/F14Handwheel, planetary gear
EOM6908008007080708047473434F10/F12/F14Handwheel, planetary gear
EOM7120100010008850885047473434F10/F12/F14Handwheel, planetary gear
EOM7A12013001300115051150547473434F10/F12/F14Handwheel, planetary gear
EOM812017001700150451504534342525F12/F14/F16Handwheel, planetary gear

1. Standard configuration. 2. Rated torque is 75% of the max torque. 3. Motor insulation is class F; class H is optional. 4. Running time at 60 Hz is 5/6 of that at 50 Hz; max output torque is the same. 5. 3-phase output does not apply to EFM1-(H) and EFMA-(H). 6. EOM3A / 7A / 8A / 12: on/off type duty S2-8 min; modulating type S4-15%.

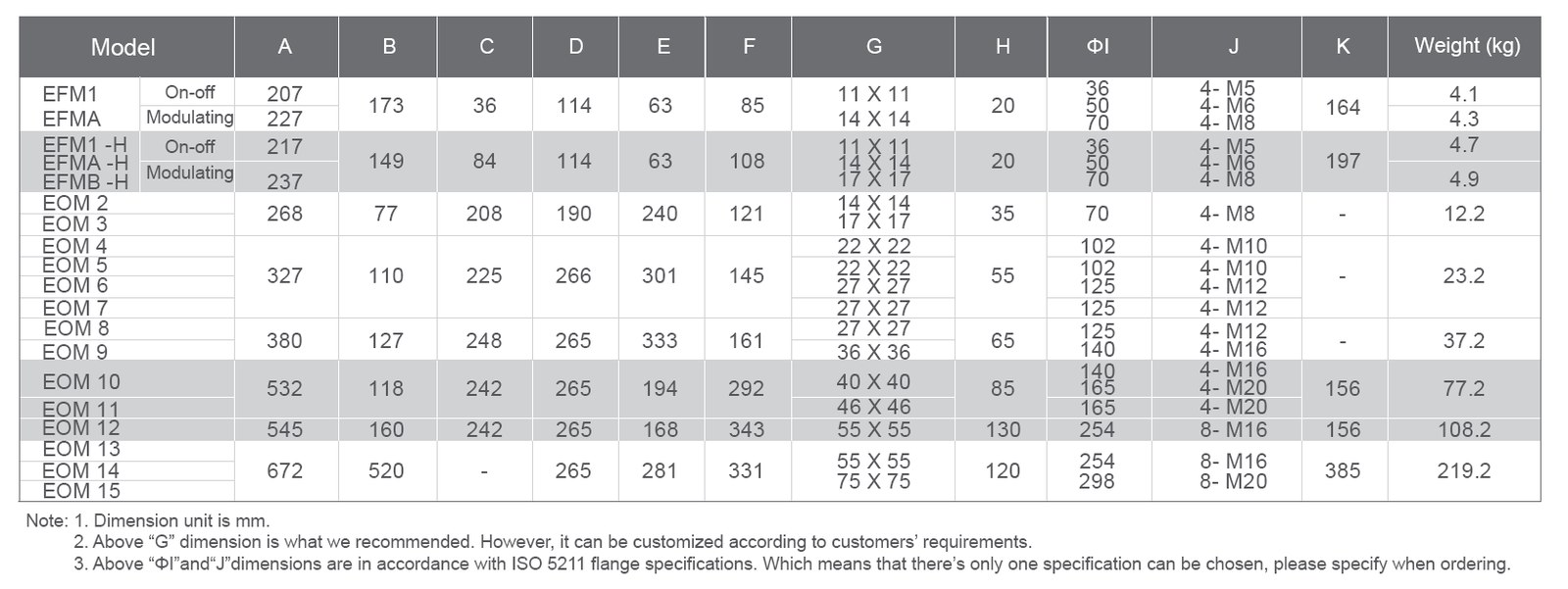

Dimension drawings

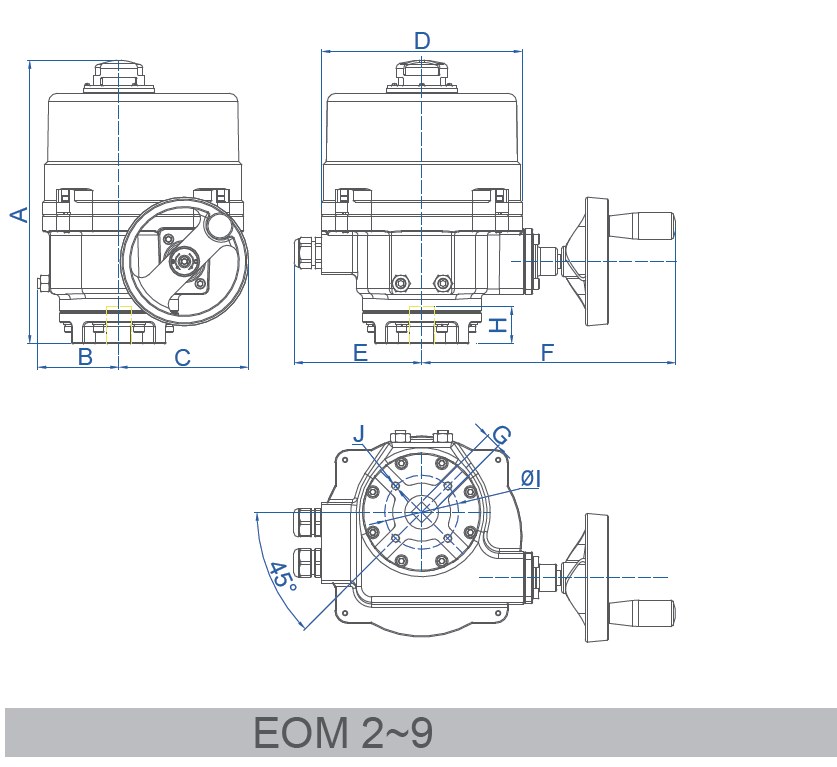

EOM dimension drawingEOM dimension drawing

Notes

Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering.

Description

The FLOWINN EOM is a quarter-turn (90°) electric actuator with a planetary-gear handwheel for ball, butterfly and plug valves, covering large valves up to very high torque. This model: max torque 100–2300 N·m, on/off control, power supply 1-ph AC/DC24V, AC110–240V; 3-ph AC220–550V; DC24V, IP67 (optional IP68).

Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
