Quarter-turn electric actuator EOM series, integration type, 100–20000 N·m
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Quarter-turn electric
- Series: EOM
- Max torque: 100–20000 N·m
- Control: On/off or modulating
- Power supply: 1-ph AC/DC24V, AC110–240V; 3-ph AC208–480V
- Ingress protection: IP65
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1304 |
| Category | Quarter-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Quarter-turn electric |
| Series | EOM |
| Max torque | 100–20000 N·m |
| Control | On/off or modulating |
| Power supply | 1-ph AC/DC24V, AC110–240V; 3-ph AC208–480V |
| Ingress protection | IP65 |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
FLOWINN EOM series
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| User Interaction Interface | Intelligent type is equipped with brand new UI control interface , with the specialized remote control, achieves a variety of function of the actuator configuration operation. |
| Energgy Efficiency | Single-phase and DC power supply is optional, ultra-low energy consumption, suitable for solar and wind powered applications. |
| Patent Mechanic Design | EOM series of electric actuators are equipped with manual/ electric automatic switching function. No clutch design thus enables the handwheel to be rotated while the machine is running; this is to ensure the safety of the operator. Such design will be the mainstream trend in the futrue. |
| 360° Position Indicator | Adopts high strength, anti- sunlight and RoHS-compliant plastic 3D window indicator. Users are able to observe the stroke position of the actuator within the 360° visual angle as there 's no dead angles. |
| Interchangeable Connecting Flange | The base connecting holes are in accordance with ISO5211 standard, also with various connecting flange sizes. It can be replaced and rotated for the same type of actuators in order to achieve with different hole positions and angles of the valve flange connection purposes. |
| Planetary Gears | Using high strength alloy steel for the planetary gear set. more compact and efficient, achieving greater output for the same volume. At the same time , having differential input for motor drive and hand wheel operation, we are therefore able to operate electrically and manually at the same time. |
| Sprocket Operation | Based on the features of operationg manually and electrically without clutch mechanism, sprocket operation is more convenient to operate the valve at higher positions. |
Standard specification
| Material of Actuator Body | Aluminum Alloy |
|---|---|
| Control Mode | On-off Type & Modulating Type |
| Torque Range | 35-20000N·m |
| Running Time | 11-155s |
| Applicable Voltage | 1 phase: AC/DC24V / AC110V / AC220V / AC230V /AC240V 3 phase: AC208-480V |
| Ambient Temperature | -25°C…..70 °C |
| Anti-vibration Level | JB/T8219 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP65 |
| Connection Size | ISO5211 |
| Motor Specifications | Class F, with thermal protector up to +135°C (+275°F); Optional : Class H |
| Working System | On-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start; Optional: 1200 times per hour |
| On/off Type Signal | Input Signal: AC/DC 24 auxiliary power input control or AC 110/220v input control Optoelectronic isolation Signal Feedback: 1. Close the valve contact 2. Open the valve contact 3. Standard: Opening torque signal contact 4. Closing torque signal contact Local/Remote contact 5. Optional: Integrated fault contact 4~20 mA to send. Malfunction Feedback: Integrated fault alarm;Power off; Motor overheating, lack of phase, over torque; signal off; ESD beyond protection , terminal output |
| Modulating Type Signal | Input Signal: 4-20mA; 0-10V; 2-10V Input impedance: 250Ω (4-20mA) Output signal: 4-20mA; 0-10V; 2-10V Output impedance: ≤750Ω (4-20mA); Repeatability and linearity within ±1% of full valve stroke Signal Reverse: Support Loss Signal Mode Setting: Support Dead Zone: 0.5-9.9% adjustable rate within full strok |
| Indication | 3D opening indicator On/off / remote control / fault indicator Open/ Close /power indicator |
| Other Function | 1. Phase correction(4-phase power supply only) 2. Torque protection 3. Motor overheat protection 4. Moisture- resistant heaters(anti-moisture device) |
Performance parameters — EFMB / EFM / EOM series
| Model | Power (W) | Max torque N·m (AC110/220V, AC/DC24V) | Max torque N·m (AC220/380V 3-ph) | Max torque lbf·in (1-ph) | Max torque lbf·in (3-ph) | Running time s (AC110/220V 50 Hz) | Running time s (AC380V 3-ph 50 Hz) | Running time s (AC/DC24V) | Running time s (fail-safe) | ISO 5211 | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EOM2 | 40 | 100 | 100 | 885 | 885 | 19 | 19 | 14 | 14 | F05/F07/F10/F12 | Handwheel, planetary gear |
| EOM3 | 40 | 200 | 200 | 1770 | 1770 | 39 | 39 | 28 | 28 | F05/F07/F10/F12 | Handwheel, planetary gear |
| EOM3A | 40 | 300 | 300 | 2655 | 2655 | 39 | 39 | 28 | 28 | F05/F07/F10/F12 | Handwheel, planetary gear |
| EOM4 | 90 | 400 | 400 | 3540 | 3540 | 29 | 29 | 21 | 21 | F10/F12/F14 | Handwheel, planetary gear |
| EOM5 | 90 | 600 | 600 | 5310 | 5310 | 39 | 39 | 28 | 28 | F10/F12/F14 | Handwheel, planetary gear |
| EOM6 | 90 | 800 | 800 | 7080 | 7080 | 47 | 47 | 34 | 34 | F10/F12/F14 | Handwheel, planetary gear |
| EOM7 | 120 | 1000 | 1000 | 8850 | 8850 | 47 | 47 | 34 | 34 | F10/F12/F14 | Handwheel, planetary gear |
| EOM7A | 120 | 1300 | 1300 | 11505 | 11505 | 47 | 47 | 34 | 34 | F10/F12/F14 | Handwheel, planetary gear |
| EOM8 | 120 | 1700 | 1700 | 15045 | 15045 | 34 | 34 | 25 | 25 | F12/F14/F16 | Handwheel, planetary gear |
| EOM8A | 120 | 2000 | 2000 | 17700 | 17700 | 34 | 34 | 25 | — | F12/F14/F16 | Handwheel, planetary gear |
| EOM9 | 200 | 2300 | 2300 | 20355 | 20355 | 47 | 47 | 34 | — | F14/F16 | Handwheel, planetary gear |
| EOM10 | 200 | 3500 | 3500 | 30975 | 30975 | 76 | 76 | 55 | — | F14/F16 | Handwheel, planetary gear |
| EOM11 | 200 | 5000 | 5000 | 44250 | 44250 | 105 | 105 | 76 | — | F14/F16 | Handwheel, planetary gear |
| EOM12 | 200 | 8000 | 8000 | 70800 | 70800 | 143 | 143 | 103 | — | F25 | Handwheel, planetary gear |
| EOM13 | 400 | — | 13000 | — | 115050 | — | 109 | — | — | F25/F30 | Handwheel, planetary gear |
| EOM14 | 400 | — | 16000 | — | 141600 | — | 129 | — | — | F25/F30 | Handwheel, planetary gear |
| EOM15 | 400 | — | 20000 | — | 177000 | — | 155 | — | — | F25/F30 | Handwheel, planetary gear |
1. Standard configuration. 2. Rated torque is 75% of the max torque. 3. Motor insulation is class F; class H is optional. 4. Running time at 60 Hz is 5/6 of that at 50 Hz; max output torque is the same. 5. 3-phase output does not apply to EFM1-(H) and EFMA-(H). 6. EOM3A / 7A / 8A / 12: on/off type duty S2-8 min; modulating type S4-15%.

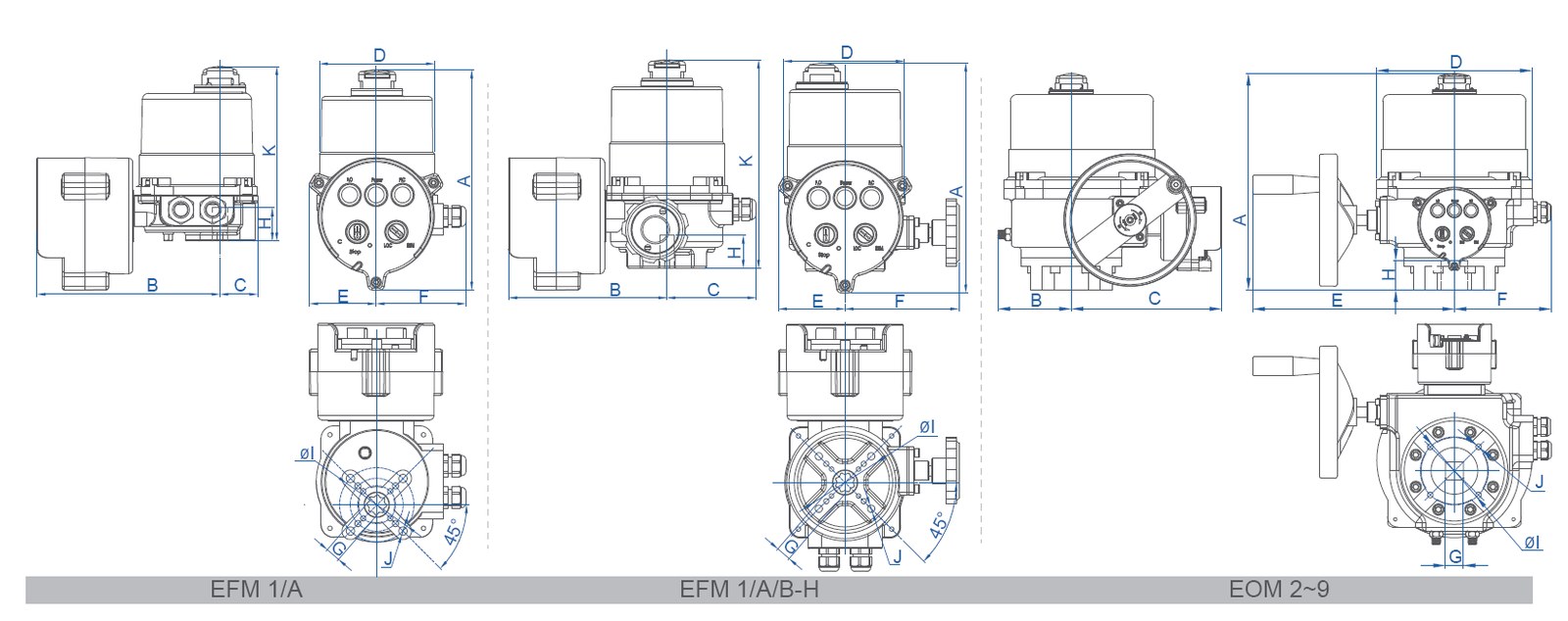

Dimension drawings
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EOM is a quarter-turn (90°) electric actuator with a planetary-gear handwheel for ball, butterfly and plug valves, covering large valves up to very high torque. This model: max torque 100–20000 N·m, on/off or modulating control, power supply 1-ph AC/DC24V, AC110–240V; 3-ph AC208–480V, IP65.
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
Questions & answers
Customer questions
No questions asked yet. Ask about specification, compatibility, lead time or anything else about this item.
Reviews
No reviews yet. Bought or used this item? Be the first to share your experience.
-
