Quarter-turn electric actuator EOM series, intelligent, LCD, 100–20000 N·m
Valve Actuators

Quarter-turn electric actuator EOM series, intelligent, LCD, 100–20000 N·m

Part no.
BD-1305
Brand
FLOWINN
Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Quarter-turn electric
  • Series: EOM
  • Max torque: 100–20000 N·m
  • Control: On/off or modulating
  • Power supply: 1-ph AC/DC24V, AC110–240V
  • Ingress protection: IP67 (optional IP68)
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1305
CategoryQuarter-Turn Electric Actuators
GroupValve Actuators
BrandFLOWINN
Technical
TypeQuarter-turn electric
SeriesEOM
Max torque100–20000 N·m
ControlOn/off or modulating
Power supply1-ph AC/DC24V, AC110–240V
Ingress protectionIP67 (optional IP68)
ManufacturerFLOWINN (Shanghai)

Datasheet

FLOWINN EOM series

Technical features

Manufacturer warranty2 years
Applicable valveBall Valve; Butterfly Valve, Plug valve
Anti-corrosion ProtectionEpoxy resin enclosure meets NEMA 4X, customer-special painting is available
Energy EfficiencyThe electric actuator is equipped with DC motor and drive technology, energy saving and environmental protection, can receive solar or wind power generation equipment power.
Intelligent operation interfaceThe intelligent electric actuator uses the LCD operating interface, and is used with the remote control for a variety of configuration operations. It can switch multiple languages to meet the needs of customers in different regions.
Pantent Mechanic DesignPlanetary gear design to realize the automatic switching function of flashlight. No clutch design, so that the actuator can be switched to manual state, flashlight non-interference. Ensure the safety of field operators. Planetary Sun wheel design has obtained a national patent
Infrared Remote ControlThe intelligent type actuator is able to provide differernt remote control sets based on different application requirements. Such as portable infrared remote control in general places, and explosion-proof remote control for hazardous locations.
3D window pointerThe operator can clearly observe the travel position of the electric actuator from 360° Angle without dead Angle. 3D window indicator body with high strength, anti - aging and RoHS - compliant

Standard specification

Material of Actuator BodyAluminum Alloy
Control ModeOn-off Type & Modulating Type
Torque Range100-20000N·m
Running Time19-155s
Applicable Voltage1 phase: AC/DC24V / AC110V / AC220V / AC230V /AC240V
Ambient Temperature-25°C…..70 °C; Optional: -40°C…..60 °C
Anti-vibration LevelJB/T8219
Noise LevelLess than 75 dB within 1m
Ingress ProtectionIP67, optional: IP68
Connection SizeISO5211
Motor SpecificationsClass F, with thermal protector up to +135°C (+275°F); Optional : Class H
Working SystemOn-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start; Optional: 1200 times per hour
On/off Type SignalInput Signal: AC/DC 24 input control or AC 110/220v input control Signal Feedback: 1. Close the valve contact 2. Open the valve contact 3. Optional: Closing torque signal contact Local/remote contacts 4. Integrated fault contact 4~20 mA to send. Malfunction Feedback: Integrated fault alarm; Motor overheating; Optional: Undercurrent protection contact
Modulating Type SignalInput Signal: 4-20mA; 0-10V; 2-10V Input impedance: 250Ω (4-20mA) Output signal: 4-20mA; 0-10V; 2-10V Output impedance: ≤750Ω (4-20mA); Repeatability and linearity within ±1% of full valve stroke Signal Reverse: Support Loss Signal Mode Setting: Support Dead Zone: ≤2.5%
IndicationLCD screen opening indicator
Other Function1. Phase correction(3-phase power supply only) 2. Torque protection 3. Motor overheat protection 4. Moisture- resistant heaters(anti-moisture device)

Performance parameters — EFMB / EFM / EOM series

ModelPower (W)Max torque N·m (AC110/220V, AC/DC24V)Max torque N·m (AC220/380V 3-ph)Max torque lbf·in (1-ph)Max torque lbf·in (3-ph)Running time s (AC110/220V 50 Hz)Running time s (AC380V 3-ph 50 Hz)Running time s (AC/DC24V)Running time s (fail-safe)ISO 5211Remarks
EOM24010010088588519191414F05/F07/F10/F12Handwheel, planetary gear
EOM3402002001770177039392828F05/F07/F10/F12Handwheel, planetary gear
EOM3A403003002655265539392828F05/F07/F10/F12Handwheel, planetary gear
EOM4904004003540354029292121F10/F12/F14Handwheel, planetary gear
EOM5906006005310531039392828F10/F12/F14Handwheel, planetary gear
EOM6908008007080708047473434F10/F12/F14Handwheel, planetary gear
EOM7120100010008850885047473434F10/F12/F14Handwheel, planetary gear
EOM7A12013001300115051150547473434F10/F12/F14Handwheel, planetary gear
EOM812017001700150451504534342525F12/F14/F16Handwheel, planetary gear
EOM8A120200020001770017700343425—F12/F14/F16Handwheel, planetary gear
EOM9200230023002035520355474734—F14/F16Handwheel, planetary gear
EOM10200350035003097530975767655—F14/F16Handwheel, planetary gear
EOM1120050005000442504425010510576—F14/F16Handwheel, planetary gear
EOM12200800080007080070800143143103—F25Handwheel, planetary gear
EOM13400—13000—115050—109——F25/F30Handwheel, planetary gear
EOM14400—16000—141600—129——F25/F30Handwheel, planetary gear
EOM15400—20000—177000—155——F25/F30Handwheel, planetary gear

1. Standard configuration. 2. Rated torque is 75% of the max torque. 3. Motor insulation is class F; class H is optional. 4. Running time at 60 Hz is 5/6 of that at 50 Hz; max output torque is the same. 5. 3-phase output does not apply to EFM1-(H) and EFMA-(H). 6. EOM3A / 7A / 8A / 12: on/off type duty S2-8 min; modulating type S4-15%.

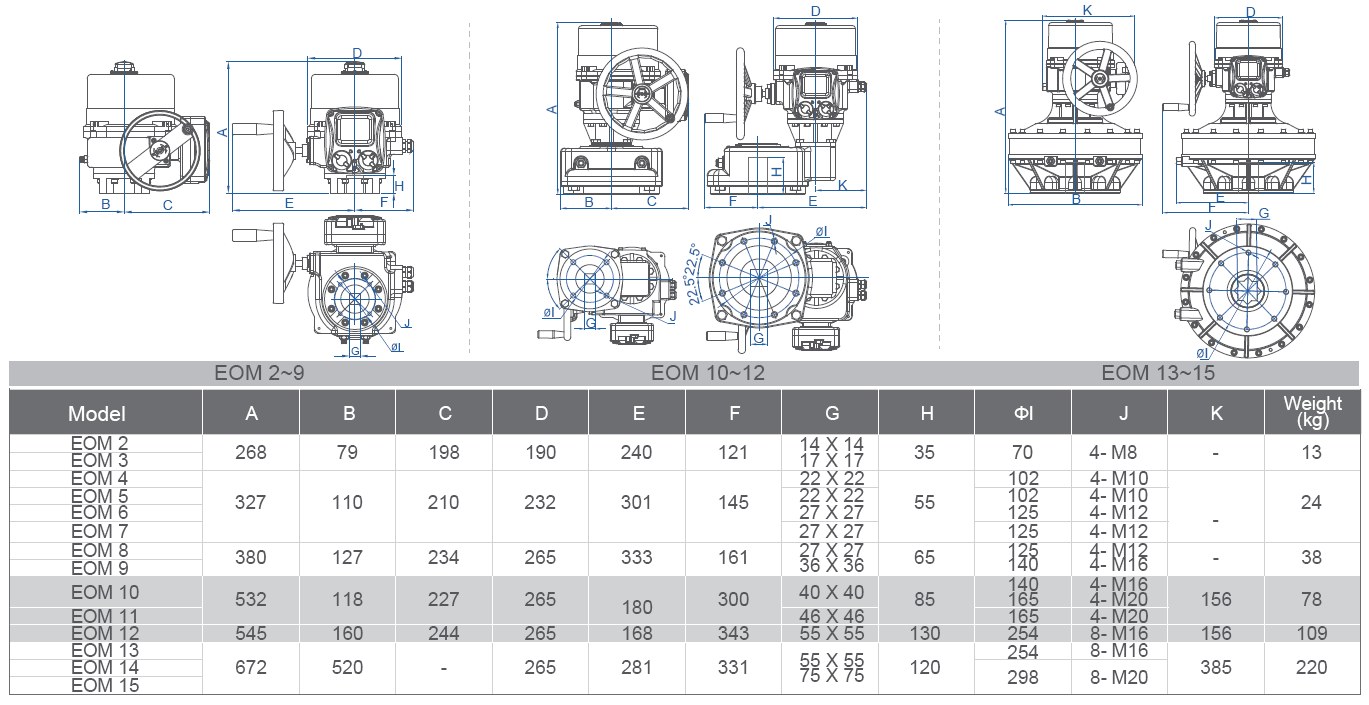

Dimension drawing

EOM dimension drawing

Notes

Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering.

Description

The FLOWINN EOM is a quarter-turn (90°) electric actuator with a planetary-gear handwheel for ball, butterfly and plug valves, covering large valves up to very high torque. This model: max torque 100–20000 N·m, on/off or modulating control, power supply 1-ph AC/DC24V, AC110–240V, IP67 (optional IP68).

Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
