Quarter-turn electric actuator EOM series, intelligent, Modbus, 100–20000 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Quarter-turn electric
- Series: EOM
- Max torque: 100–20000 N·m
- Control: On/off or modulating
- Power supply: 1-ph AC/DC24V, AC110–240V; 3-ph AC208–480V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1306 |
| Category | Quarter-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Quarter-turn electric |
| Series | EOM |
| Max torque | 100–20000 N·m |
| Control | On/off or modulating |
| Power supply | 1-ph AC/DC24V, AC110–240V; 3-ph AC208–480V |
| Ingress protection | IP67 (optional IP68) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Overload Protection | The power will automatically shut off when the valve jam occurs. Thus preventing further damage to the valve and actuator |
| Operational Safety | F grade insulation motor. The motor winding has a temperature control switch to sense the temperature of the motor to protect the overheating issues, thus ensures the operational safety of the motor. |
| Voltage Protection | Protection against the high and low voltage situations. |
| Applicable valve | Ball Valve; Butterfly Valve, |
| Anti-corrosion Protection | Epoxy resin enclosure meets NEMA 4X, customer-special painting is available |
| Ingress Protection | IP67 optional: IP68 |
| Fireproofing Grade | High temperature fireproof enclosure meets requirements in different situation |
Standard specification
| Material of Actuator Body | Aluminum Alloy |
|---|---|
| Control Mode | On-off Type & Modulating Type |
| Torque Range | 100-20000N·m |
| Running Time | 19-155s |
| Applicable Voltage | 1 phase: AC/DC24V / AC110V / AC220V / AC230V /AC240V 3 phase: AC208-480V |
| Ambient Temperature | -25°C…..70 °C; Optional: -40°C…..60 °C |
| Anti-vibration Level | JB/T8219 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP67 optional: IP68 ( Maximum 7m; Max: 72 hours) |
| Connection Size | ISO5211 |
| Bus | Modbus |
| Motor Specifications | Class F, with thermal protector up to +135°C (+275°F); Optional : Class H |
| Working System | On-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start; Optional: 1200 times per hour |
| On/off type signal | Input: AC/DC24V auxiliary power input control or AC110/220V input control; optoelectronic isolation. Feedback: valve-closed contact; valve-open contact; opening-torque contact (standard); closing-torque contact; local/remote contact; optional integrated fault contact and 4–20 mA transmitter. Malfunction feedback: integrated fault alarm; power off; motor overheating; phase loss; over-torque; signal off; ESD; terminal output. |
| Modulating type signal | Input 4–20 mA / 0–10 V / 2–10 V; input impedance 250 Ω (4–20 mA). Output 4–20 mA / 0–10 V / 2–10 V; output impedance ≤750 Ω (4–20 mA). Repeatability and linearity within ±1% of full valve stroke. Signal reverse and loss-of-signal mode: supported. Dead zone 0.5–9.9% adjustable within full stroke. |
| Indication | LCD screen (open the cover) |
| Other functions | Phase correction (3-phase supply only); alarm signal (local and remote); torque protection; motor overheat protection; moisture-resistant heater; infrared remote control |
Performance parameters — EFMB / EFM / EOM series
| Model | Power (W) | Max torque N·m (AC110/220V, AC/DC24V) | Max torque N·m (AC220/380V 3-ph) | Max torque lbf·in (1-ph) | Max torque lbf·in (3-ph) | Running time s (AC110/220V 50 Hz) | Running time s (AC380V 3-ph 50 Hz) | Running time s (AC/DC24V) | Running time s (fail-safe) | ISO 5211 | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EOM2 | 40 | 100 | 100 | 885 | 885 | 19 | 19 | 14 | 14 | F05/F07/F10/F12 | Handwheel, planetary gear |
| EOM3 | 40 | 200 | 200 | 1770 | 1770 | 39 | 39 | 28 | 28 | F05/F07/F10/F12 | Handwheel, planetary gear |
| EOM3A | 40 | 300 | 300 | 2655 | 2655 | 39 | 39 | 28 | 28 | F05/F07/F10/F12 | Handwheel, planetary gear |
| EOM4 | 90 | 400 | 400 | 3540 | 3540 | 29 | 29 | 21 | 21 | F10/F12/F14 | Handwheel, planetary gear |
| EOM5 | 90 | 600 | 600 | 5310 | 5310 | 39 | 39 | 28 | 28 | F10/F12/F14 | Handwheel, planetary gear |
| EOM6 | 90 | 800 | 800 | 7080 | 7080 | 47 | 47 | 34 | 34 | F10/F12/F14 | Handwheel, planetary gear |
| EOM7 | 120 | 1000 | 1000 | 8850 | 8850 | 47 | 47 | 34 | 34 | F10/F12/F14 | Handwheel, planetary gear |
| EOM7A | 120 | 1300 | 1300 | 11505 | 11505 | 47 | 47 | 34 | 34 | F10/F12/F14 | Handwheel, planetary gear |
| EOM8 | 120 | 1700 | 1700 | 15045 | 15045 | 34 | 34 | 25 | 25 | F12/F14/F16 | Handwheel, planetary gear |
| EOM8A | 120 | 2000 | 2000 | 17700 | 17700 | 34 | 34 | 25 | — | F12/F14/F16 | Handwheel, planetary gear |
| EOM9 | 200 | 2300 | 2300 | 20355 | 20355 | 47 | 47 | 34 | — | F14/F16 | Handwheel, planetary gear |
| EOM10 | 200 | 3500 | 3500 | 30975 | 30975 | 76 | 76 | 55 | — | F14/F16 | Handwheel, planetary gear |
| EOM11 | 200 | 5000 | 5000 | 44250 | 44250 | 105 | 105 | 76 | — | F14/F16 | Handwheel, planetary gear |
| EOM12 | 200 | 8000 | 8000 | 70800 | 70800 | 143 | 143 | 103 | — | F25 | Handwheel, planetary gear |
| EOM13 | 400 | — | 13000 | — | 115050 | — | 109 | — | — | F25/F30 | Handwheel, planetary gear |
| EOM14 | 400 | — | 16000 | — | 141600 | — | 129 | — | — | F25/F30 | Handwheel, planetary gear |
| EOM15 | 400 | — | 20000 | — | 177000 | — | 155 | — | — | F25/F30 | Handwheel, planetary gear |
1. Standard configuration. 2. Rated torque is 75% of the max torque. 3. Motor insulation is class F; class H is optional. 4. Running time at 60 Hz is 5/6 of that at 50 Hz; max output torque is the same. 5. 3-phase output does not apply to EFM1-(H) and EFMA-(H). 6. EOM3A / 7A / 8A / 12: on/off type duty S2-8 min; modulating type S4-15%.

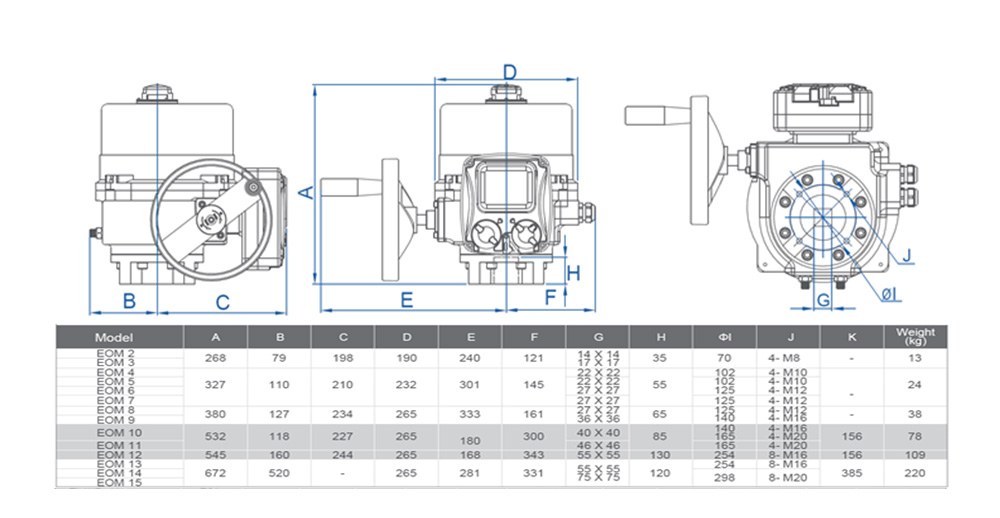

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EOM is a quarter-turn (90°) electric actuator with a planetary-gear handwheel for ball, butterfly and plug valves, covering large valves up to very high torque. This model: max torque 100–20000 N·m, on/off or modulating control, power supply 1-ph AC/DC24V, AC110–240V; 3-ph AC208–480V, IP67 (optional IP68).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
