Multi-turn electric actuator EMD, basic, 50–900 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Multi-turn electric
- Series: EMD
- Max torque: 50–900 N·m
- Control: On/off
- Power supply: AC380V, AC220V, AC/DC24V
- Ingress protection: IP67
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1308 |
| Category | Multi-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Multi-turn electric |
| Series | EMD |
| Max torque | 50–900 N·m |
| Control | On/off |
| Power supply | AC380V, AC220V, AC/DC24V |
| Ingress protection | IP67 |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Motor Protection | F class insulated motor . 2 built in temperature sensor to prevent over heat.(Class H motor can be customized) |
| Anti Moisture Protection | Standard built in anti moisture resistance to protect internal electronics from condensation. |
| Absolute Encoder | 24 bits absolute encoder can record up to 1024 positions. This enables precise record of position even in lost power mode. Available on integration and intelligent type. |
| High Strength Worm Gear and Worm Shaft:High strength alloy worm shaft and gear for long durability. The meshing between worm shaft and gear had been specificaly examined to ensure maximum efficiency. | |
| High RPM output | High RPM enables applications on large diameter valves. |
| Non-Intrusive set up | Integration an Intelligent type can be set up by remote control. They also come with LCD display and local control button/ knobs for easy access. Valve position can be set without opening actuator mechanically. |
| Performance Processor | Intelligent type adopts high performance micro processor, this which enables efficient and reliable monitoring of valve position/ torque and operational status. |
Standard specification
| Material of Actuator Body | Aluminum Alloy |
|---|---|
| Control Mode | On-off Type |
| Torque Range | 50-900 N·m Direct Output |
| Speed | 18-144 rpm |
| Applicable Voltage | AC380V AC220V AC/DC 24V |
| Ambient Temperature | -30°C…..70 °C |
| Anti-vibration Level | JB2920 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP67 |
| Optional | IP68( Maximum 7m; Max 72 hours) |
| Connection Size | ISO5210 |
| Motor Specifications | Class F, with thermal protector up to +135°C (+275°F) |
| Working System | On-off Type, S2-15 min, no more than 600 times per hour start |
| Input Signal | On/off type built in contacts 5A@250Vac |
| Feedback Signal | On/off type, Open stroke limit, close stroke limit; Open over torque, close over torque; Flash signal(contact capacity 5A at 250 Vac); Position feedback potentiometer. |
| Position Display | Mechanical Pointer. |

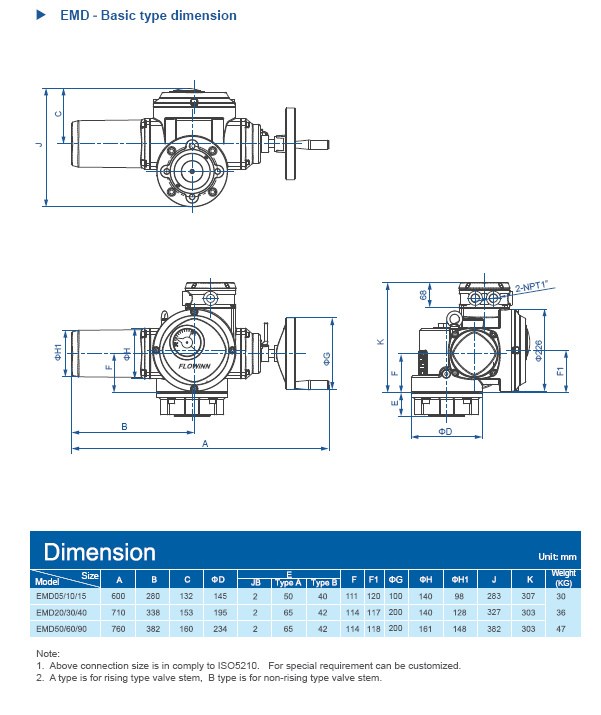

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EMD is a multi-turn electric actuator for gate, globe, sluice and penstock valves, with ISO 5210 mounting. This model: max torque 50–900 N·m, on/off control, power supply AC380V, AC220V, AC/DC24V, IP67.
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
