Multi-turn electric actuator EMD, integration type, 100–900 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Multi-turn electric
- Series: EMD
- Max torque: 100–900 N·m
- Control: On/off or modulating
- Power supply: AC380V, AC220V, AC/DC24V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1309 |
| Category | Multi-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Multi-turn electric |
| Series | EMD |
| Max torque | 100–900 N·m |
| Control | On/off or modulating |
| Power supply | AC380V, AC220V, AC/DC24V |
| Ingress protection | IP67 (optional IP68) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Motor Protection | An F-class insulated motor is equipped with two temperature sensors to prevent overheating. (Class H motor can be customized) |
| Anti Moisture Protection | It also has a standard anti-moisture feature to protect internal electronics from condensation. |
| Absolute Encoder | The motor features a 24-bit absolute encoder that can accurately record up to 1024 positions, even in the event of a power loss. Available in both integration and intelligent types. |
| High Strength Worm Gear and Worm Shaft | The motor also boasts a high-strength alloy worm shaft and gear for increased durability. The meshing between the worm shaft and gear has been carefully examined to ensure maximum efficiency. |
| High RPM output | The motor's high RPM makes it ideal for use with large diameter valves. |
| Non-Intrusive set up | The integration and intelligent types can be remotely controlled and come with an LCD display and local control buttons/knobs for easy access. Valve position can be set without the need to manually open the actuator. |
| Performance Processor | The intelligent type utilizes a high-performance microprocessor, allowing for efficient and reliable monitoring of valve position, torque, and operational status. |
Standard specification
| Material of Actuator Body | Aluminum Alloy |
|---|---|
| Control Mode | On-off Type & Modulating Type |
| Torque Range | 100-900 N·m Direct Output |
| Speed | 18-144 rpm |
| Applicable Voltage | AC380V AC220V AC/DC 24V |
| Ambient Temperature | -30°C…..70 °C |
| Anti-vibration Level | JB2920 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP67, Optional , IP68( Maximum 7m; Max 72 hours) |
| Connection Size | ISO5210 |
| Motor Specifications | Class F, with thermal protector up to +135°C (+275°F) |
| Working System | On-off Type, S2-15 min, no more than 600 times per hour start |
| Modulating Type | S4-25%, no more than 600 times per hour start |
| Input Signal | On/offtype, AC110/220V(optional);opticalsignal isolation |
| Modulating type | Input signal,4-20mA;0-10V; 2-10V |
| Input impedance | 150Ω (4-20mA) |
| Feedback Signal | On/off, type,5configurable, contacts,1integrated, fault(contactcapacity5A@250Vac) |
| Modulating type | 4-20mA |
| Input signal | 0-10V; 2-10V |
| Output impedance | ≤750Ω(4-20mA) Repeatability, and, linearity, within ±1% of full valve stroke. |
| Position Display | LCD screen display / Position percentage display |

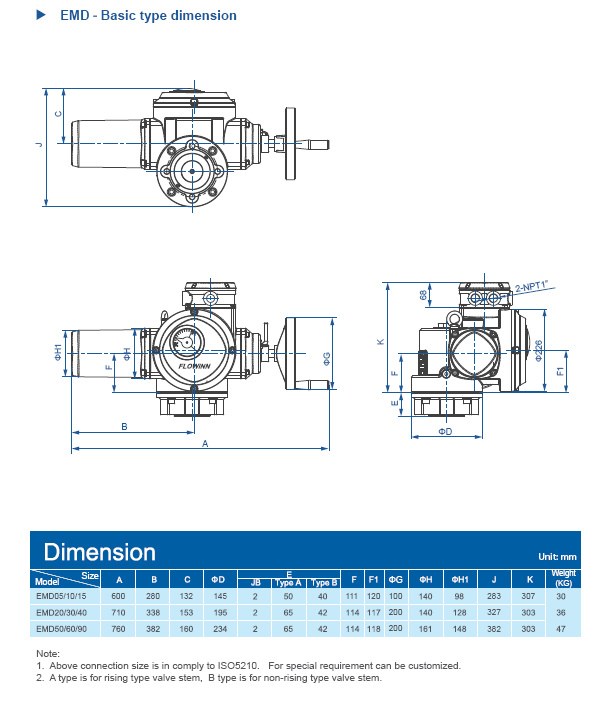

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EMD is a multi-turn electric actuator for gate, globe, sluice and penstock valves, with ISO 5210 mounting. This model: max torque 100–900 N·m, on/off or modulating control, power supply AC380V, AC220V, AC/DC24V, IP67 (optional IP68).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
