Multi-turn electric actuator EMD, intelligent, 100–900 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Multi-turn electric
- Series: EMD
- Max torque: 100–900 N·m
- Control: On/off or modulating
- Power supply: AC380V, AC220V, AC/DC24V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1310 |
| Category | Multi-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Multi-turn electric |
| Series | EMD |
| Max torque | 100–900 N·m |
| Control | On/off or modulating |
| Power supply | AC380V, AC220V, AC/DC24V |
| Ingress protection | IP67 (optional IP68) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Motor Protection | The F-class insulated motor is designed with two built-in temperature sensors that prevent overheating. (Class H motor can be customized) |
| Anti Moisture Protection | Its standard anti-moisture feature also protects internal electronics from condensation. |
| Absolute Encoder | With a 24-bit absolute encoder, the motor can accurately record up to 1024 positions, even during power loss. It is available in both integration and intelligent types. |
| High Strength Worm Gear and Worm Shaft | Its high-strength alloy worm shaft and gear ensure long durability. The worm shaft and gear have been specifically examined to maximize efficiency. |
| High RPM output | Additionally, its high RPM allows for use with large diameter valves. |
| Non-Intrusive set up | The integration and intelligent types can be remotely controlled and come with an LCD display and local control buttons/knobs. Valve position can be set without the need for mechanical actuation. |
| Performance Processor | The intelligent type employs a high-performance microprocessor for efficient and reliable monitoring of valve position, torque, and operational status. |
Standard specification
| Material of Actuator Body | Aluminum Alloy |
|---|---|
| Control Mode | On-off Type & Modulating Type |
| Torque Range | 100-900 N·m Direct Output |
| Speed | 18-144 rpm |
| Applicable Voltage | AC380V AC220V AC/DC 24V |
| Ambient Temperature | -30°C…..70 °C |
| Anti-vibration level | JB2920 |
| Noise level | Less than 75 dB within 1 m |
| Ingress protection | IP67; optional IP68 (max 7 m, max 72 hours) |
| Connection size | ISO 5210 |
| Motor | Class F, thermal protector up to +135 °C (+275 °F) |
| Working system | On/off type S2-15 min, no more than 600 starts per hour |
| Modulating type | S4-25%, no more than 600 starts per hour |
| Input signal | On/off type AC110/220V (optional); optical signal isolation. Modulating type 4–20 mA / 0–10 V / 2–10 V |
| Input impedance | 150 Ω (4–20 mA) |
| Feedback signal | On/off type: 5 configurable contacts, 1 integrated fault contact (contact capacity 5 A @ 250 VAC). Modulating type: 4–20 mA |
| Output impedance | ≤750 Ω (4–20 mA); repeatability and linearity within ±1% of full valve stroke |
| Position display | LCD screen / position percentage display |

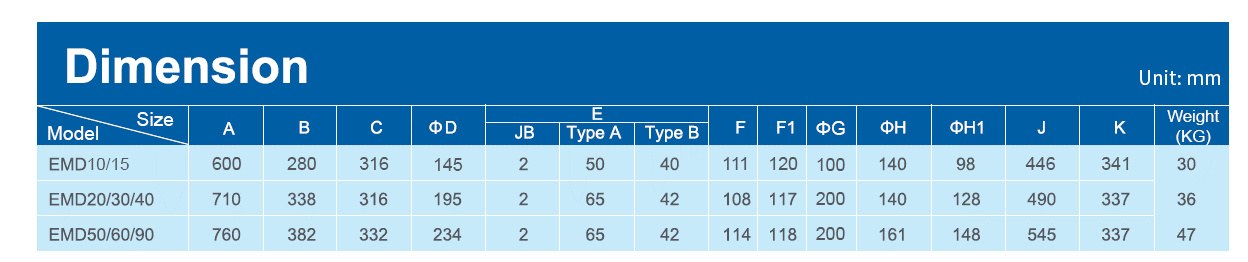

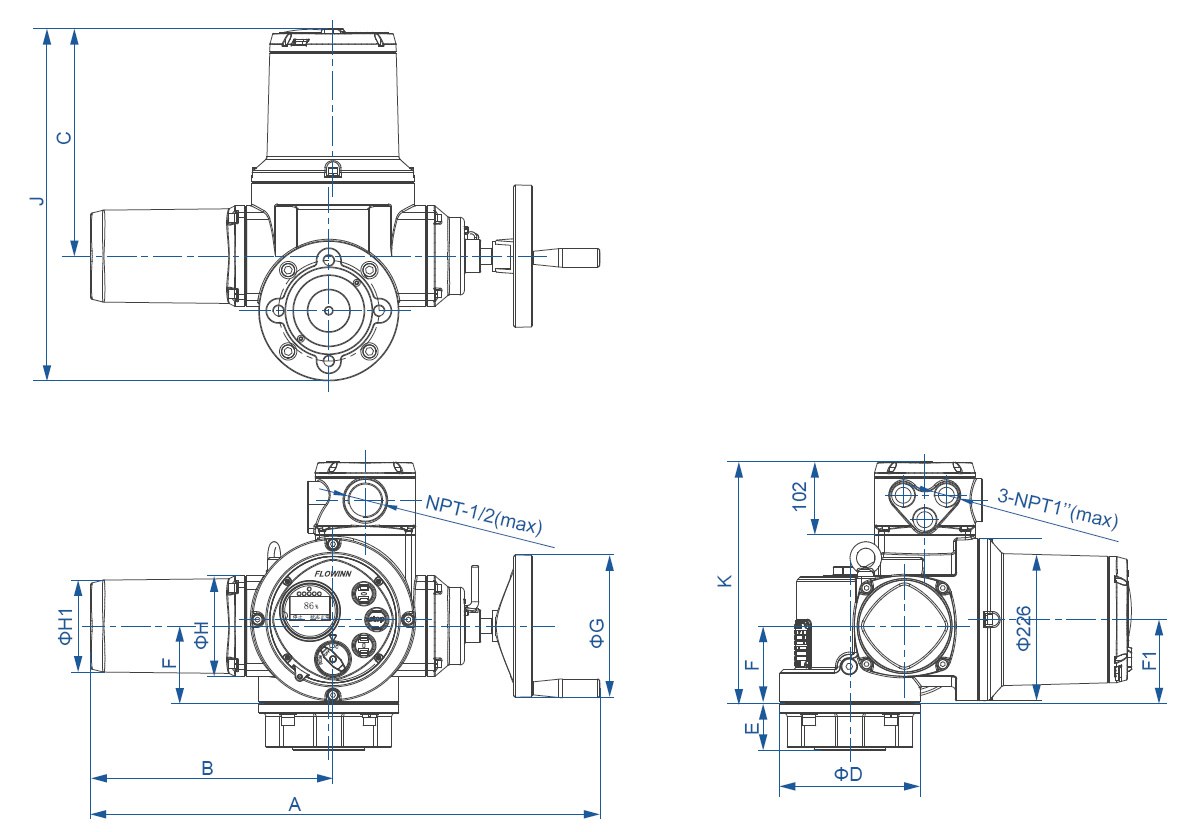

Dimension drawings
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EMD is a multi-turn electric actuator for gate, globe, sluice and penstock valves, with ISO 5210 mounting. This model: max torque 100–900 N·m, on/off or modulating control, power supply AC380V, AC220V, AC/DC24V, IP67 (optional IP68).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
