Valve Actuators

Multi-turn electric actuator EMT, basic, 35–3000 N·m

Part no.: BD-1311
Brand: FLOWINN

Available on order · sourced to your specification

Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

Type: Multi-turn electric
Series: EMT
Max torque: 35–3000 N·m
Control: On/off
Power supply: AC380V, AC220V
Ingress protection: IP67 (optional IP68)

Call +880 1713 552466

Genuine productsSourced from the manufacturer or authorised channels
Delivery across BangladeshDhaka, Chattogram and all industrial zones
After-sales supportInstallation guidance and warranty handling
Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.	BD-1311
Category	Multi-Turn Electric Actuators
Group	Valve Actuators
Brand	FLOWINN
Technical
Type	Multi-turn electric
Series	EMT
Max torque	35–3000 N·m
Control	On/off
Power supply	AC380V, AC220V
Ingress protection	IP67 (optional IP68)
Manufacturer	FLOWINN (Shanghai)

Datasheet

FLOWINN EMT series

Technical features

Manufacturer warranty	2 years
Motor Protection	F class insulated motor . 2 built in temperature sensor to prevent over heat.(Class H motor can be customized)
Anti Moisture Protection	Standard built in anti moisture resistance to protect internal electronics from condensation.
Absolute Encoder	24 bits absolute encoder can record up to 1024 positions. This enables precise record of position even in lost power mode. Available on integration and intelligent type.
High Strength Worm Gear and Worm Shaft	High strength alloy worm shaft and gear for long durability. The meshing between worm shaft and gear had been specificaly examined to ensure maximum efficiency.
High RPM output	High RPM enables applications on large diameter valves.
Safe Manual Override	Manula override clutch to disengage motor and enables manual operation of the actuator

Standard specification

Material of Actuator Body	Aluminum Alloy
Control Mode	On-off Type
Torque Range	35-3000 N·m
Speed	18-192 rpm
Applicable Voltage	AC380V AC220V
Ambient Temperature	-30°C…..+70 °C
Explosion-proof Temperature	-40℃……+55℃、-40℃……+60℃
Noise Level	Less than 75 dB within 1m
Ingress Protection	1P67:Explosio-proof:lP68
Optional	IP68( Maximum 7m; Max 72 hours)
Connection Size	ISO5210
Motor Specifications	Class F, with thermal protector up to +135°C (+275°F)
Working System	On-off Type S2-15 min, no more than 60 times per hour start
Input signal	On/off type, built-in contacts 5 A @ 250 VAC
Feedback signal	On/off type: opening and closing stroke limit; opening and closing over-torque; flash signal (contact 5 A @ 250 VAC)
Fault signal	On/off type: integrated fault alarm; motor overheating; over-torque contacts. Optional phase protection contact
Position display	Mechanical pointer

EMT — 3-phase on/off control

Model	Speed rpm (50 Hz)	Speed rpm (60 Hz)	Torque (N·m)	Power (kW)	Rated current A (220V)	Rated current A (380V)	Start current A (220V)	Start current A (380V)	Stall current A (220V)	Stall current A (380V)	Max stem Ø A-type (mm)	Max stem Ø B-type (mm)
EMT11	18	21	35	0.2	1.0	0.4	2.5	0.9	2.0	0.7	32	22
EMT11	24	29	35	0.2	1.4	0.5	3.6	1.2	2.9	0.9	32	22
EMT11	36	43	35	0.2	1.4	0.7	3.5	1.8	2.8	1.4	32	22
EMT11	48	57	35	0.2	1.4	0.9	3.5	2.4	2.8	1.9	32	22
EMT11	72	86	35	0.35	2.3	1.4	5.7	3.6	4.5	2.9	32	22
EMT11	96	115	35	0.35	2.9	1.9	7.2	4.8	5.8	3.8	32	22
EMT11	*144	173	30	0.5	4.4	2.5	11	6.1	8.8	4.9	32	22
EMT11	*192	230	25	0.5	4.5	2.7	11.5	6.8	9.0	5.5	32	22
EMT12	18	21	80	0.35	2.2	0.8	5.4	2.1	4.8	1.8	32	22
EMT12	24	29	80	0.35	2.5	1.1	6.2	2.7	5.4	2.4	32	22
EMT12	36	43	80	0.35	2.5	1.6	6.3	4.1	5.5	3.6	32	22
EMT12	48	57	70	0.35	2.5	1.9	6.3	4.8	5.5	4.2	32	22
EMT12	72	86	50	0.35	2.5	2.1	6.3	5.1	5.5	4.5	32	22
EMT12	96	115	40	0.35	2.5	2.2	6.3	5.5	5.5	4.8	32	22
EMT12	*144	173	35	0.6	3.9	2.9	9.8	7.2	8.6	6.3	32	22
EMT12	*192	230	30	0.6	3.9	3.3	9.8	8.2	8.6	7.2	32	22
EMT13	18	21	105	0.45	2.7	1.1	6.8	2.7	5.4	2.2	32	22
EMT13	24	29	105	0.45	2.7	1.4	6.8	3.6	5.4	2.9	32	22
EMT13	36	43	100	0.45	3.0	2.1	7.5	5.1	6.0	4.1	32	22
EMT13	48	57	90	0.45	3.0	2.5	7.5	6.1	6.0	4.9	32	22
EMT13	72	86	60	0.45	3.0	2.5	7.5	6.1	6.0	4.9	32	22
EMT13	96	115	50	0.45	3.0	2.7	7.5	6.8	6.0	5.5	32	22
EMT13	*144	173	40	0.7	4.6	3.3	11.5	8.2	9.2	6.6	32	22
EMT13	*192	230	35	0.7	4.6	3.8	11.5	9.6	9.2	7.6	32	22
EMT21	18	21	200	1.1	5.6	2.1	14	5.1	11.2	4.1	47	32
EMT21	24	29	200	1.1	5.6	2.7	14.0	6.8	11.2	5.5	47	32
EMT21	36	43	200	1.1	6.2	4.1	13.8	9.1	11.0	7.3	47	32
EMT21	48	57	200	1.1	6.7	5.5	14.9	12.1	13.1	10.7	47	32
EMT21	72	86	170	1.1	7.9	6.9	17.6	15.5	15.5	13.6	47	32
EMT21	96	115	150	1.1	7.9	7.6	17.6	16.9	15.5	14.9	47	32
EMT21	*144	173	100	1.5	9.4	8.2	20.9	18.2	18.4	14.9	47	32
EMT21	*192	230	60	1.5	9.4	6.6	20.9	14.6	18.4	12.8	47	32
EMT22	18	21	300	1.1	6.8	3.1	17	7.7	13.6	6.1	47	32
EMT22	24	29	300	1.1	6.8	4.1	17	10.2	13.6	8.2	47	32
EMT22	36	43	250	1.1	7.8	5.1	17.2	11.4	15.2	10.0	47	32
EMT22	48	57	220	1.1	7.4	6	14.7	12	12.9	10.6	47	32
EMT22	72	86	200	1.1	7.4	8.2	14.8	16.4	13.0	14.4	47	32
EMT22	96	115	170	1.1	7.4	9.3	14.8	18.6	13.0	16.3	47	32
EMT22	*144	173	120	1.8	11.3	9.8	22.6	19.6	19.9	17.3	47	32
EMT22	*192	230	80	1.8	11.3	8.7	22.6	17.5	19.9	15.4	47	32
EMT23	18	21	400	1.25	8.8	4.1	22	10.2	17.6	8.2	47	32
EMT23	24	29	400	1.25	8.8	5.5	17.6	10.9	14.0	8.7	47	32
EMT23	36	43	300	1.25	8.8	6.1	17.5	12.3	15.4	10.8	47	32
EMT23	48	57	250	1.25	9.3	6.8	18.7	13.6	16.4	12.0	47	32
EMT23	72	86	250	2	12.8	10.2	25.6	20.5	22.5	18.0	47	32
EMT23	96	115	230	2	14.7	12.6	29.4	25.1	25.9	22.1	47	32
EMT23	*144	173	150	2.3	13.8	12.3	27.6	24.6	24.3	21.6	47	32
EMT23	*192	230	90	2.3	13.8	9.8	27.6	19.6	24.3	17.3	47	32
EMT31	18	21	620	2.4	14.7	5.1	36.8	12.7	29.5	10.2	60	45
EMT31	24	29	620	2.4	12.2	5.9	30.5	14.8	24.4	11.8	60	45
EMT31	36	43	550	2.4	13.8	7.9	30.7	17.5	27.0	15.4	60	45
EMT31	48	57	480	2.4	17.4	9.2	38.7	20.4	34.0	17.9	60	45
EMT31	72	86	480	3	17.4	13.8	38.7	30.6	34.0	26.9	60	45
EMT31	96	115	370	3	17.4	14.1	38.7	31.4	34.0	27.6	60	45
EMT31	*144	173	250	4	24.3	14.3	54.0	31.8	47.6	29.9	60	45
EMT31	*192	230	200	4	15.3	16.1	33.9	35.7	29.9	31.4	60	45
EMT41	18	21	1050	3.5	7.5	7.5	18.8	18.8	16.5	16.5	83	60
EMT41	24	29	1050	3.5	10.0	10.0	22.3	22.3	20.1	20.1	83	60
EMT41	36	43	850	3.5	12.2	12.2	27.1	27.1	24.3	24.3	83	60
EMT41	48	57	700	3.5	13.4	13.4	29.7	29.7	26.7	26.7	83	60
EMT41	72	86	700	3.5	20.1	20.1	44.6	44.6	41.4	41.4	83	60
EMT41	96	115	550	3.5	21.0	21.0	46.7	46.7	43.4	43.4	83	60
EMT41	*144	173	420	6.5	24.1	24.1	53.5	53.5	49.7	49.7	83	60
EMT41	*192	230	250	6.5	19.1	19.1	42.4	42.4	39.5	39.5	83	60
EMT42	18	21	1500	5.3	8.6	15.2	21.5	21.5	19.3	19.3	83	60
EMT42	24	29	1500	5.3	11.5	16.5	25.5	25.5	22.9	22.9	83	60
EMT42	36	43	1300	5.3	14.9	22.3	33.1	33.1	31.4	31.4	83	60
EMT42	48	57	1050	5.3	16.0	19.7	35.6	35.6	33.9	33.9	83	60
EMT42	72	86	1050	5.3	18.5	24.0	41.1	41.1	39.1	39.1	83	60
EMT42	96	115	750	5.3	17.6	23.0	39.2	39.2	37.2	37.2	83	60
EMT42	*144	173	650	11	22.9	25.5	50.9	50.9	48.4	48.4	83	60
EMT42	*192	230	550	11	25.9	28.3	57.4	57.4	54.6	54.6	83	60
EMT43	18	21	2050	7.5	10.7	17.0	26.7	26.7	24.0	24.0	83	60
EMT43	24	29	2050	7.5	14.2	22.3	29.7	29.7	26.7	26.7	83	60
EMT43	36	43	1750	7.5	18.2	24.0	37.9	38.0	35.3	35.3	83	60
EMT43	48	57	1400	7.5	17.8	24.3	37.1	37.1	34.5	34.5	83	60
EMT43	72	86	1400	7.5	22.9	36.2	47.7	47.7	45.3	45.3	83	60
EMT43	96	115	1050	7.5	22.9	30.9	47.7	47.7	45.3	45.3	83	60
EMT43	*144	173	880	15	28.8	37.3	60.0	60.0	57.0	57.0	83	60
EMT43	*192	230	750	15	32.7	38.5	68.2	68.2	64.8	64.8	83	60
EMT44	18	21	3000	7.5	14.3	14.3	31.8	31.8	30.2	25.9	83	60
EMT44	24	29	3000	7.5	19.1	19.1	42.4	42.4	40.3	34.6	83	60
EMT44	36	43	2050	9	19.6	22.6	43.5	50.2	41.3	48.2	83	60
EMT44	48	57	1750	9	26.7	25.7	59.4	57.1	56.4	54.8	83	60
EMT44	72	86	1750	9	40.1	38.6	89.1	96.4	84.6	92.5	83	60
EMT44	96	115	1450	9	49.2	42.6	109.4	106.5	107.2	75.9	83	60
EMT44	*144	173	1360	20	62.3	59.9	138.5	171.2	135.7	122.1	83	60
EMT44	*192	230	1360	20	23.1	79.9	184.6	242.1	180.9	172.7	83	60

1. Torque values are the actuator's maximum torque. 2. Complies with EN 15714-2:2009 Class A and B. EMT1–3 duty cycle S2-15 min; EMT4 duty cycle S2-10 min. 3. Speeds marked * have higher momentum and are not recommended for direct drive of a valve. For rising-stem valves the maximum allowable speed is 500 mm/min for gate valves and 250 mm/min for globe valves (max 45 rpm). 4. Modulating version available: start frequency below 25%, no more than 600 starts per hour. 5. A-type stem = rising stem; B-type = non-rising stem.

EMT — 1-phase on/off control

Model	Speed rpm (50 Hz)	Speed rpm (60 Hz)	Torque (N·m)	Power (kW)	Rated current A (220V)	Start current A (220V)	Stall current A (220V)	Max stem Ø A-type (mm)	Max stem Ø B-type (mm)
EMT11	18	21	60	0.3	0.91	2.27	2.27	32	22
EMT11	24	29	60	0.3	1.21	3.03	3.03	32	22
EMT11	36	43	50	0.4	1.82	4.54	4.54	32	22
EMT11	48	57	50	0.4	2.42	6.06	6.06	32	22
EMT11	72	86	35	0.4	2.67	6.66	6.66	32	22
EMT11	96	115	35	0.4	3.55	8.88	8.88	32	22
EMT21	18	21	150	0.75	5.19	12.98	11.4	47	32
EMT21	24	29	150	0.75	6.92	17.31	15.2	47	32
EMT21	36	43	130	1	7.62	19.04	16.8	47	32
EMT21	48	57	100	1	10.15	22.56	19.9	47	32
EMT21	72	86	100	1	12.95	28.77	25.3	47	32
EMT21	96	115	50	1	15.23	33.85	31.1	47	32
EMT31	18	21	250	1.25	13.28	26.56	24.7	60	45
EMT31	24	29	250	1.25	12.88	25.75	24.0	60	45
EMT31	36	43	200	1.5	17.13	34.27	31.9	60	45
EMT31	48	57	170	1.5	18.28	40.62	38.6	60	45
EMT31	72	86	130	1.5	27.42	60.92	57.9	60	45
EMT31	96	115	100	1.5	28.18	62.62	59.5	60	45

1. Torque values are the actuator's maximum torque. 2. Complies with EN 15714-2:2009 Class A and B; duty cycle S2-10 min.

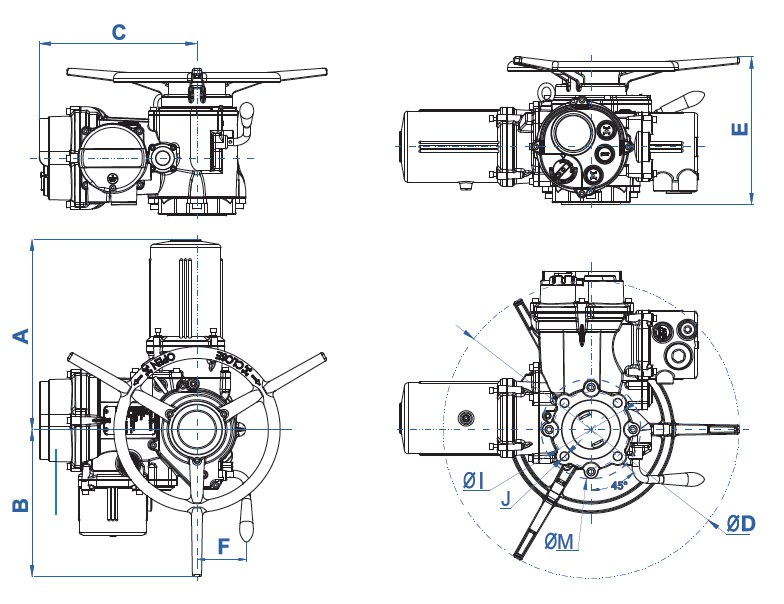

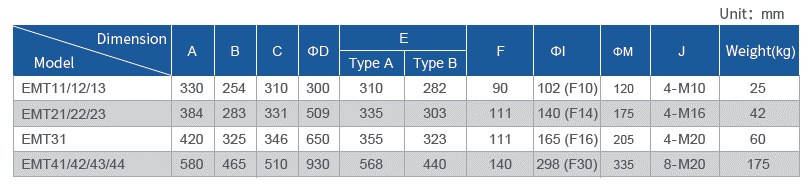

Dimension drawings

Notes

Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering.

Description

The FLOWINN EMT is a multi-turn electric actuator for gate, globe, sluice and penstock valves, with ISO 5210 mounting and a wide choice of output speeds (18–192 rpm). This model: max torque 35–3000 N·m, on/off control, power supply AC380V, AC220V, IP67 (optional IP68).

Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
