Valve Actuators

Multi-turn electric actuator EMT, integration type, 35–3000 N·m

Part no.: BD-1312
Brand: FLOWINN

Available on order · sourced to your specification

Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

Type: Multi-turn electric
Series: EMT
Max torque: 35–3000 N·m
Control: On/off or modulating
Power supply: AC380V, AC220V
Ingress protection: IP68

Call +880 1713 552466

Genuine productsSourced from the manufacturer or authorised channels
Delivery across BangladeshDhaka, Chattogram and all industrial zones
After-sales supportInstallation guidance and warranty handling
Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.	BD-1312
Category	Multi-Turn Electric Actuators
Group	Valve Actuators
Brand	FLOWINN
Technical
Type	Multi-turn electric
Series	EMT
Max torque	35–3000 N·m
Control	On/off or modulating
Power supply	AC380V, AC220V
Ingress protection	IP68
Manufacturer	FLOWINN (Shanghai)

Datasheet

FLOWINN EMT series

Technical features

Manufacturer warranty	2 years
Motor Protection	Equipped with two temperature sensors, an F-class insulated motor can prevent overheating. (Class H motor can be customized)
Anti Moisture Protection	It has a standard anti-moisture feature to protect internal electronics from condensation.
Absolute Encoder	It has a 24-bit absolute encoder capable of accurately recording up to 1024 positions, even in power loss mode. The motor is available in both integration and intelligent types.
High Strength Worm Gear and Worm Shaft	It is built with a high-strength alloy worm shaft and gear for extended durability. The meshing between the worm shaft and gear has been closely examined to ensure maximum efficiency.
High RPM output	Its high RPM makes it ideal for use with large diameter valves.
Performance Processor	The intelligent type uses a high-performance microprocessor for efficient and reliable monitoring of valve position, torque, and operational status.
Safe Manual Override	Manula override clutch to disengage motor and enables manual operation of the actuator
Infrared Remote Control	Integration and Intelligent type come with infrated remote control for easy menu access.
Non-Intrusive set up	The integration and intelligent types can be remotely controlled, and come with an LCD display and local control buttons/knobs for easy access. Valve position can be set without the need for mechanical actuation.

Standard specification

Material of actuator body	Aluminium alloy
Control mode	On/off type & modulating type
Torque range	35–3000 N·m
Speed	18–192 rpm
Applicable voltage	AC380V, AC220V
Ambient temperature	-30 °C to +70 °C; explosion-proof: -40 °C to +55 °C, -40 °C to +60 °C
Noise level	Less than 75 dB within 1 m
Ingress protection	IP68 (max 7 m, max 72 hours)
Connection size	ISO 5210
Motor	Class F, thermal protector up to +135 °C (+275 °F)
Working system	On/off type S2-15 min, no more than 60 starts per hour
Modulating type	S4-50%, no more than 600 starts per hour
Input signal	On/off type 20–60 VAC/DC or 60–120 VAC, optical signal isolation. Modulating type 4–20 mA / 0–10 V / 2–10 V; accuracy 1%; dead zone 0–25.5% adjustable in full stroke; input impedance 75 Ω (4–20 mA)
Feedback signal	On/off type: relay ×5 (single or multi-phase power down; control circuit power failure; selector switch in local or stop position; motor temperature protector tripped). Modulating type: 4–20 mA / 0–10 V / 2–10 V; output impedance ≤750 Ω (4–20 mA); repeatability and linearity within ±1% of full valve stroke
Fault signal	Phase correction; torque switch; thermal protection; jammed valve protection; loss-of-signal protection; instantaneous reverse protection
Modulating functions	Signal reverse; loss-of-signal setting; dead zone 0–25.5% adjustable; time lag 0–25.5% adjustable
Position display	4-level greyscale LCD opening indicator; fully open / fully closed / remote / fault indicator

EMT — 3-phase on/off control

Model	Speed rpm (50 Hz)	Speed rpm (60 Hz)	Torque (N·m)	Power (kW)	Rated current A (220V)	Rated current A (380V)	Start current A (220V)	Start current A (380V)	Stall current A (220V)	Stall current A (380V)	Max stem Ø A-type (mm)	Max stem Ø B-type (mm)
EMT11	18	21	35	0.2	1.0	0.4	2.5	0.9	2.0	0.7	32	22
EMT11	24	29	35	0.2	1.4	0.5	3.6	1.2	2.9	0.9	32	22
EMT11	36	43	35	0.2	1.4	0.7	3.5	1.8	2.8	1.4	32	22
EMT11	48	57	35	0.2	1.4	0.9	3.5	2.4	2.8	1.9	32	22
EMT11	72	86	35	0.35	2.3	1.4	5.7	3.6	4.5	2.9	32	22
EMT11	96	115	35	0.35	2.9	1.9	7.2	4.8	5.8	3.8	32	22
EMT11	*144	173	30	0.5	4.4	2.5	11	6.1	8.8	4.9	32	22
EMT11	*192	230	25	0.5	4.5	2.7	11.5	6.8	9.0	5.5	32	22
EMT12	18	21	80	0.35	2.2	0.8	5.4	2.1	4.8	1.8	32	22
EMT12	24	29	80	0.35	2.5	1.1	6.2	2.7	5.4	2.4	32	22
EMT12	36	43	80	0.35	2.5	1.6	6.3	4.1	5.5	3.6	32	22
EMT12	48	57	70	0.35	2.5	1.9	6.3	4.8	5.5	4.2	32	22
EMT12	72	86	50	0.35	2.5	2.1	6.3	5.1	5.5	4.5	32	22
EMT12	96	115	40	0.35	2.5	2.2	6.3	5.5	5.5	4.8	32	22
EMT12	*144	173	35	0.6	3.9	2.9	9.8	7.2	8.6	6.3	32	22
EMT12	*192	230	30	0.6	3.9	3.3	9.8	8.2	8.6	7.2	32	22
EMT13	18	21	105	0.45	2.7	1.1	6.8	2.7	5.4	2.2	32	22
EMT13	24	29	105	0.45	2.7	1.4	6.8	3.6	5.4	2.9	32	22
EMT13	36	43	100	0.45	3.0	2.1	7.5	5.1	6.0	4.1	32	22
EMT13	48	57	90	0.45	3.0	2.5	7.5	6.1	6.0	4.9	32	22
EMT13	72	86	60	0.45	3.0	2.5	7.5	6.1	6.0	4.9	32	22
EMT13	96	115	50	0.45	3.0	2.7	7.5	6.8	6.0	5.5	32	22
EMT13	*144	173	40	0.7	4.6	3.3	11.5	8.2	9.2	6.6	32	22
EMT13	*192	230	35	0.7	4.6	3.8	11.5	9.6	9.2	7.6	32	22
EMT21	18	21	200	1.1	5.6	2.1	14	5.1	11.2	4.1	47	32
EMT21	24	29	200	1.1	5.6	2.7	14.0	6.8	11.2	5.5	47	32
EMT21	36	43	200	1.1	6.2	4.1	13.8	9.1	11.0	7.3	47	32
EMT21	48	57	200	1.1	6.7	5.5	14.9	12.1	13.1	10.7	47	32
EMT21	72	86	170	1.1	7.9	6.9	17.6	15.5	15.5	13.6	47	32
EMT21	96	115	150	1.1	7.9	7.6	17.6	16.9	15.5	14.9	47	32
EMT21	*144	173	100	1.5	9.4	8.2	20.9	18.2	18.4	14.9	47	32
EMT21	*192	230	60	1.5	9.4	6.6	20.9	14.6	18.4	12.8	47	32
EMT22	18	21	300	1.1	6.8	3.1	17	7.7	13.6	6.1	47	32
EMT22	24	29	300	1.1	6.8	4.1	17	10.2	13.6	8.2	47	32
EMT22	36	43	250	1.1	7.8	5.1	17.2	11.4	15.2	10.0	47	32
EMT22	48	57	220	1.1	7.4	6	14.7	12	12.9	10.6	47	32
EMT22	72	86	200	1.1	7.4	8.2	14.8	16.4	13.0	14.4	47	32
EMT22	96	115	170	1.1	7.4	9.3	14.8	18.6	13.0	16.3	47	32
EMT22	*144	173	120	1.8	11.3	9.8	22.6	19.6	19.9	17.3	47	32
EMT22	*192	230	80	1.8	11.3	8.7	22.6	17.5	19.9	15.4	47	32
EMT23	18	21	400	1.25	8.8	4.1	22	10.2	17.6	8.2	47	32
EMT23	24	29	400	1.25	8.8	5.5	17.6	10.9	14.0	8.7	47	32
EMT23	36	43	300	1.25	8.8	6.1	17.5	12.3	15.4	10.8	47	32
EMT23	48	57	250	1.25	9.3	6.8	18.7	13.6	16.4	12.0	47	32
EMT23	72	86	250	2	12.8	10.2	25.6	20.5	22.5	18.0	47	32
EMT23	96	115	230	2	14.7	12.6	29.4	25.1	25.9	22.1	47	32
EMT23	*144	173	150	2.3	13.8	12.3	27.6	24.6	24.3	21.6	47	32
EMT23	*192	230	90	2.3	13.8	9.8	27.6	19.6	24.3	17.3	47	32
EMT31	18	21	620	2.4	14.7	5.1	36.8	12.7	29.5	10.2	60	45
EMT31	24	29	620	2.4	12.2	5.9	30.5	14.8	24.4	11.8	60	45
EMT31	36	43	550	2.4	13.8	7.9	30.7	17.5	27.0	15.4	60	45
EMT31	48	57	480	2.4	17.4	9.2	38.7	20.4	34.0	17.9	60	45
EMT31	72	86	480	3	17.4	13.8	38.7	30.6	34.0	26.9	60	45
EMT31	96	115	370	3	17.4	14.1	38.7	31.4	34.0	27.6	60	45
EMT31	*144	173	250	4	24.3	14.3	54.0	31.8	47.6	29.9	60	45
EMT31	*192	230	200	4	15.3	16.1	33.9	35.7	29.9	31.4	60	45
EMT41	18	21	1050	3.5	7.5	7.5	18.8	18.8	16.5	16.5	83	60
EMT41	24	29	1050	3.5	10.0	10.0	22.3	22.3	20.1	20.1	83	60
EMT41	36	43	850	3.5	12.2	12.2	27.1	27.1	24.3	24.3	83	60
EMT41	48	57	700	3.5	13.4	13.4	29.7	29.7	26.7	26.7	83	60
EMT41	72	86	700	3.5	20.1	20.1	44.6	44.6	41.4	41.4	83	60
EMT41	96	115	550	3.5	21.0	21.0	46.7	46.7	43.4	43.4	83	60
EMT41	*144	173	420	6.5	24.1	24.1	53.5	53.5	49.7	49.7	83	60
EMT41	*192	230	250	6.5	19.1	19.1	42.4	42.4	39.5	39.5	83	60
EMT42	18	21	1500	5.3	8.6	15.2	21.5	21.5	19.3	19.3	83	60
EMT42	24	29	1500	5.3	11.5	16.5	25.5	25.5	22.9	22.9	83	60
EMT42	36	43	1300	5.3	14.9	22.3	33.1	33.1	31.4	31.4	83	60
EMT42	48	57	1050	5.3	16.0	19.7	35.6	35.6	33.9	33.9	83	60
EMT42	72	86	1050	5.3	18.5	24.0	41.1	41.1	39.1	39.1	83	60
EMT42	96	115	750	5.3	17.6	23.0	39.2	39.2	37.2	37.2	83	60
EMT42	*144	173	650	11	22.9	25.5	50.9	50.9	48.4	48.4	83	60
EMT42	*192	230	550	11	25.9	28.3	57.4	57.4	54.6	54.6	83	60
EMT43	18	21	2050	7.5	10.7	17.0	26.7	26.7	24.0	24.0	83	60
EMT43	24	29	2050	7.5	14.2	22.3	29.7	29.7	26.7	26.7	83	60
EMT43	36	43	1750	7.5	18.2	24.0	37.9	38.0	35.3	35.3	83	60
EMT43	48	57	1400	7.5	17.8	24.3	37.1	37.1	34.5	34.5	83	60
EMT43	72	86	1400	7.5	22.9	36.2	47.7	47.7	45.3	45.3	83	60
EMT43	96	115	1050	7.5	22.9	30.9	47.7	47.7	45.3	45.3	83	60
EMT43	*144	173	880	15	28.8	37.3	60.0	60.0	57.0	57.0	83	60
EMT43	*192	230	750	15	32.7	38.5	68.2	68.2	64.8	64.8	83	60
EMT44	18	21	3000	7.5	14.3	14.3	31.8	31.8	30.2	25.9	83	60
EMT44	24	29	3000	7.5	19.1	19.1	42.4	42.4	40.3	34.6	83	60
EMT44	36	43	2050	9	19.6	22.6	43.5	50.2	41.3	48.2	83	60
EMT44	48	57	1750	9	26.7	25.7	59.4	57.1	56.4	54.8	83	60
EMT44	72	86	1750	9	40.1	38.6	89.1	96.4	84.6	92.5	83	60
EMT44	96	115	1450	9	49.2	42.6	109.4	106.5	107.2	75.9	83	60
EMT44	*144	173	1360	20	62.3	59.9	138.5	171.2	135.7	122.1	83	60
EMT44	*192	230	1360	20	23.1	79.9	184.6	242.1	180.9	172.7	83	60

1. Torque values are the actuator's maximum torque. 2. Complies with EN 15714-2:2009 Class A and B. EMT1–3 duty cycle S2-15 min; EMT4 duty cycle S2-10 min. 3. Speeds marked * have higher momentum and are not recommended for direct drive of a valve. For rising-stem valves the maximum allowable speed is 500 mm/min for gate valves and 250 mm/min for globe valves (max 45 rpm). 4. Modulating version available: start frequency below 25%, no more than 600 starts per hour. 5. A-type stem = rising stem; B-type = non-rising stem.

EMT — 1-phase on/off control

Model	Speed rpm (50 Hz)	Speed rpm (60 Hz)	Torque (N·m)	Power (kW)	Rated current A (220V)	Start current A (220V)	Stall current A (220V)	Max stem Ø A-type (mm)	Max stem Ø B-type (mm)
EMT11	18	21	60	0.3	0.91	2.27	2.27	32	22
EMT11	24	29	60	0.3	1.21	3.03	3.03	32	22
EMT11	36	43	50	0.4	1.82	4.54	4.54	32	22
EMT11	48	57	50	0.4	2.42	6.06	6.06	32	22
EMT11	72	86	35	0.4	2.67	6.66	6.66	32	22
EMT11	96	115	35	0.4	3.55	8.88	8.88	32	22
EMT21	18	21	150	0.75	5.19	12.98	11.4	47	32
EMT21	24	29	150	0.75	6.92	17.31	15.2	47	32
EMT21	36	43	130	1	7.62	19.04	16.8	47	32
EMT21	48	57	100	1	10.15	22.56	19.9	47	32
EMT21	72	86	100	1	12.95	28.77	25.3	47	32
EMT21	96	115	50	1	15.23	33.85	31.1	47	32
EMT31	18	21	250	1.25	13.28	26.56	24.7	60	45
EMT31	24	29	250	1.25	12.88	25.75	24.0	60	45
EMT31	36	43	200	1.5	17.13	34.27	31.9	60	45
EMT31	48	57	170	1.5	18.28	40.62	38.6	60	45
EMT31	72	86	130	1.5	27.42	60.92	57.9	60	45
EMT31	96	115	100	1.5	28.18	62.62	59.5	60	45

1. Torque values are the actuator's maximum torque. 2. Complies with EN 15714-2:2009 Class A and B; duty cycle S2-10 min.

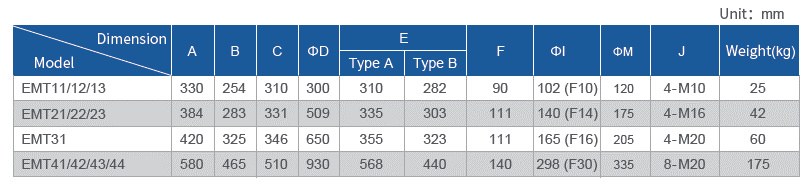

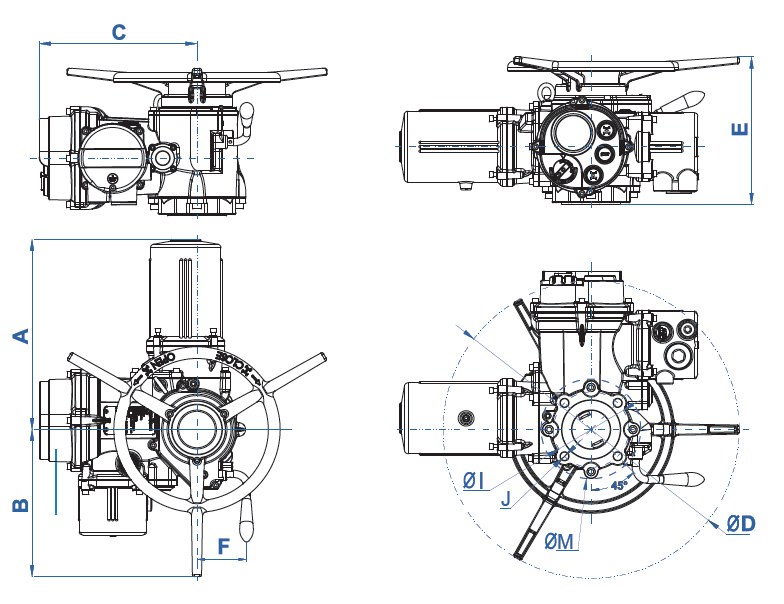

Dimension drawings

Notes

Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering.

Description

The FLOWINN EMT is a multi-turn electric actuator for gate, globe, sluice and penstock valves, with ISO 5210 mounting and a wide choice of output speeds (18–192 rpm). This model: max torque 35–3000 N·m, on/off or modulating control, power supply AC380V, AC220V, IP68.

Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
