Metering pump stroke actuator, explosion-proof Ex d IIC T4, 30 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Multi-turn electric
- Series: Metering pump actuator
- Max torque: 30 N·m
- Control: Modulating, 4–20 mA
- Power supply: 220 VAC, 50 Hz
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1314 |
| Category | Multi-Turn Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Multi-turn electric |
| Series | Metering pump actuator |
| Max torque | 30 N·m |
| Control | Modulating, 4–20 mA |
| Power supply | 220 VAC, 50 Hz |
| Ingress protection | IP67 (optional IP68) |
| Explosion protection | Ex d IIC T4 Gb |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Product Video |
Standard specification
| Rated torque | 30 N·m |
|---|---|
| Rated speed | 22 rpm |
| Motor power | 60 W |
| Voltage | 220 VAC |
| Frequency | 50 Hz |
| Operating mode | Modulating S4-25% |
| Stroke | Metering pump stroke is 20 turns; displacement 30 mm |
| Start time | No more than 56 s; 50 s actual |
| Output flange (ISO 5211) | F07/F10 |
| Ambient temperature | -20 to 65 °C |
| Ambient humidity (25 °C) | 95% |
| Ingress protection | IP67 or IP68 |
| Explosion protection | Ex d IIC T4 Gb |
| Manual operation | Manual operation without a clutch; optional handwheel |
| Unexpected stop | Electromagnetic braking control; power-down braking |
| Cable gland | 2 × NPT 3/4" |
| Lubrication | Flowserve grease CLX2 |
| Position display | Mechanical scale pointer 0–100%; optional LCD display |
| Modulating signal | Output and feedback 4–20 mA |
| Weight | 25 kg |

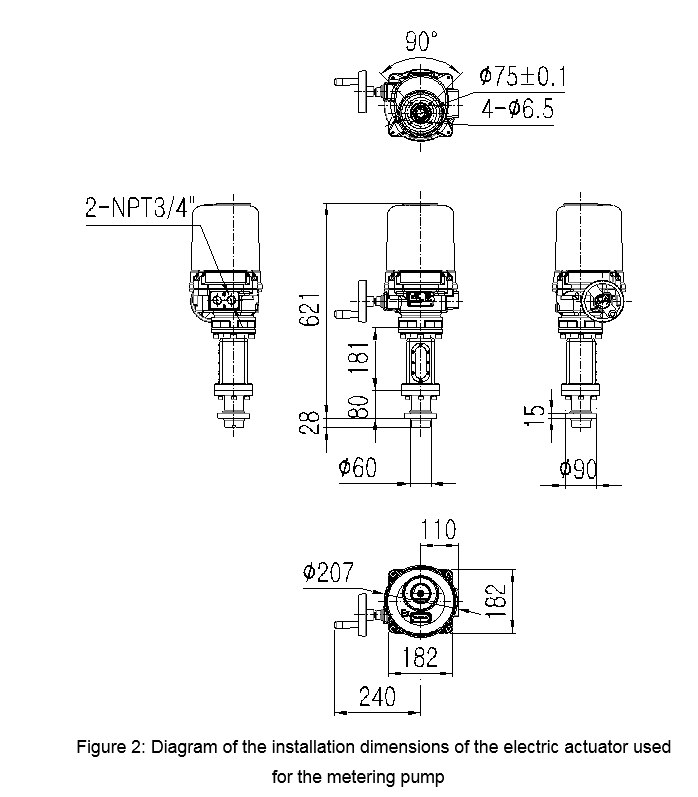

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN Metering pump actuator is an explosion-proof electric actuator that sets the stroke of a metering (dosing) pump, controlled by a 4–20 mA signal. This model: max torque 30 N·m, modulating, 4–20 ma control, power supply 220 VAC, 50 Hz, IP67 (optional IP68), Ex d IIC T4 Gb.
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
