Linear electric actuator ELM, integral type, 1000–8000 N
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Linear electric
- Series: ELM
- Max thrust: 1000–8000 N
- Max stroke: 60–100 mm
- Power supply: 24–240V; DC24V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1315 |
| Category | Linear Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Linear electric |
| Series | ELM |
| Max thrust | 1000–8000 N |
| Max stroke | 60–100 mm |
| Power supply | 24–240V; DC24V |
| Ingress protection | IP67 (optional IP68) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
FLOWINN ELM series
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Manual Operation | Full range of products are equipped with hand wheel operating mechanism to facilitate the commissioning and emergency manual operation, manual/ electric automatic switching, safe and reliable. |
| Infrared remote control | The intelligent type actuator is able to provide different remote conrol based on different application requirements. Such as portable infrated remote control in ordinary locations and explosion-proof remote control for hazardous locations. |
| Operational Safety | F grade (H grade is optional) insulation motor. The motor windings are equipped with temperature control switches to sense the temperature of the motor and provide over temperature protection, which ensures the operational safety of the motor. |
| Anti-humidity Resistance | Installed with heater inside the actuator used to remove the internal condensation which cause damages to electrical parts. |
| Phase Protection | Phase detection and correction functions avoid the actuator being damaged by connecting to the wrong power phase. |
| Voltage Protection | Protection against high and low voltage situations. |
| Overload Protection | The power will automatically shut off when valve jam occurs. Thus preventing further damage to the valve and actuator. |
| Operational Diagnosis | Intelligent actuators are equipped with multiple sensing devices. With the functions of real-time reflections ot the control signal received by the actuator, fault alarm, opearating parameters, status indication and other status. Multi-diagnostionc function can locate the fault, thus making it easy for the users. |
| Password Protection | Intelligent actuators possess classifiable password protection, which can be authorized to different operators to avoid misuse which causing the acutuator failure. |
Standard specification
| Force range | 1000-8000N |
|---|---|
| Max stroke | 60-100mm |
| Running time | 40-122S |
| Ambient temperature | -25°C---+70°C |
| Anti-vibration level | JB/T 8219 |
| Noise level | Less than 75dB within 1m |
| Electrical interface | Two PG16 |
| Ingress Protection | IP67;Optional:IP68 |
| Motor Specifications | Class F.with thermal protector up to +135°C optional:Class H |
| Working System | On/off type, S2-15min, no more than 600 times per hour start; Modulating type:S4-50%, up to 600 triggers per hour, Optional : 1200 times per hour |
| Applicable Voltage | 24V-240V;Single phase:DC24V |
| Input signal | On/off type, AC24 auxiliary power input control;Optoelectronic isolation; Modulating type, 4-20mA; 0-10V; 2-10V |
| Input signal | Input impedance; 250Ω (4-20mA) |
| Signal Feedback | On/off type; Close valve contact; Open valve contact; Optional:Opening torque signal contact; closing torque signal contact, Local/remote signal contact; Integrated fault signal contact 4-20mA transmit. |
| Malfunction Feedback | On/off type; Integrated fault alarm; Power off, motor overheating, lack of phase , over torque, broken signal. |
| Output Signal | 0-10V |
| Modulating type | 4-20mA |
| Output signal | 2-10VOutput |
| Impedance | ≤750Ω (4-20mA) |
| Indication | Stroke indicator. |
Performance parameters — ELM linear series (ELM010–ELM080)
| Model | Power (W) | Max stroke (mm) | Max force (N) | Stroke speed s/mm (AC110/220V 50 Hz) | Stroke speed s/mm (AC/DC24V) | Stroke speed mm/s (AC110/220V 50 Hz) | Stroke speed mm/s (AC/DC24V) | Remark |
|---|---|---|---|---|---|---|---|---|
| ELM010 | 10 | 60 | 1000 | 0.83 | 0.64 | 1.20 | 1.56 | Handwheel; manual/electric switch mechanism |
| ELM020 | 10 | 60 | 2000 | 0.83 | 0.64 | 1.20 | 1.56 | Handwheel; manual/electric switch mechanism |
| ELM040 | 10 | 60 | 4000 | 1.58 | 1.23 | 0.63 | 0.81 | Handwheel; manual/electric switch mechanism |
| ELM080 | 15 | 60 | 8000 | 2.04 | 1.58 | 0.49 | 0.63 | Handwheel; manual/electric switch mechanism |
1. Rated output is 0.75 × the maximum force. 2. Standard colour is black; other colours on request.

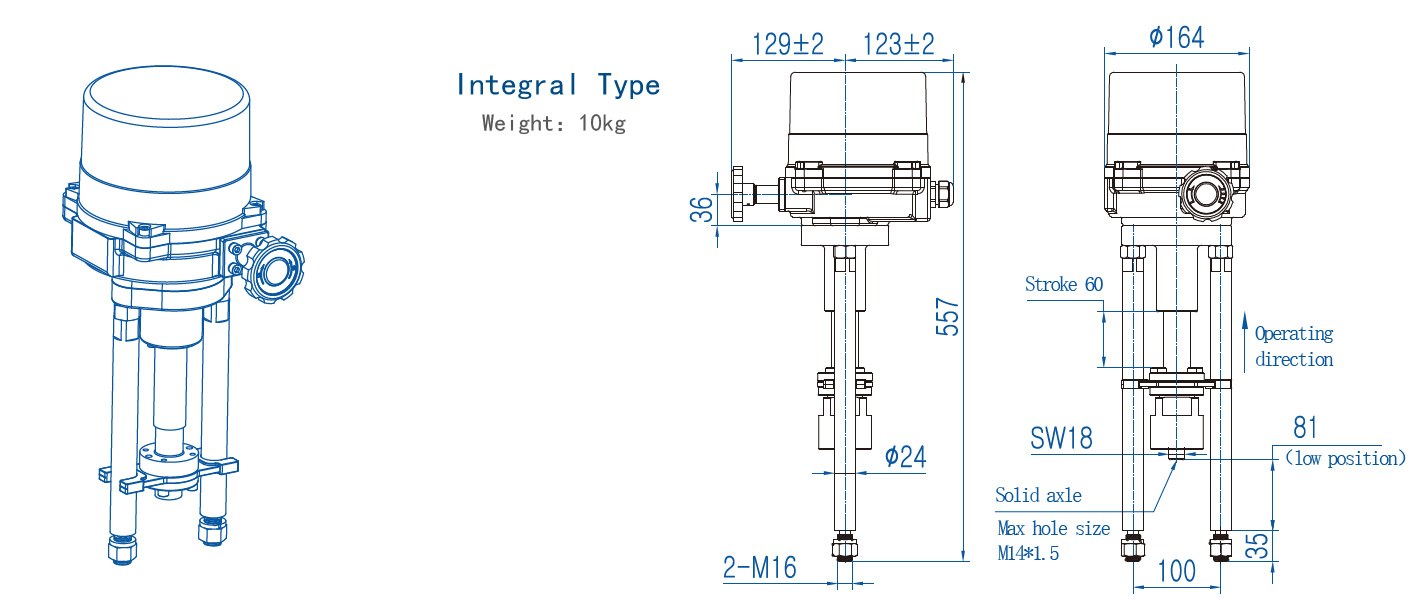

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN ELM is a linear electric actuator for globe valves and control valves, with a handwheel for commissioning and emergency manual operation. This model: max thrust 1000–8000 N, stroke 60–100 mm, power supply 24–240V; DC24V, IP67 (optional IP68).
