Valve Actuators
Linear electric actuator ELM, intelligent, 1000–8000 N
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Linear electric
- Series: ELM
- Max thrust: 1000–8000 N
- Max stroke: 60–100 mm
- Power supply: 24–240V
- Ingress protection: IP67
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1316 |
| Category | Linear Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Linear electric |
| Series | ELM |
| Max thrust | 1000–8000 N |
| Max stroke | 60–100 mm |
| Power supply | 24–240V |
| Ingress protection | IP67 |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
FLOWINN ELM series
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Manual Operation | The entire product line has a hand wheel operation mechanism to make commissioning and emergency manual operation easier, as well as safe and dependable manual/electric automated changeover. |
| Infrared remote control | Depending on the needs of the application, the intelligent type actuator can offer various remote controls. Such as an explosion-proof remote control for dangerous sites and a portable infrared remote control for common locations. |
| Operational Safety | Motor with insulation of grade F (H grade is optional). The temperature control switches installed in the motor windings sense the motor's temperature and provide over-temperature protection, ensuring the motor's operational safety. |
| Anti-humidity Resistance | The actuator has a heater built into it that's used to get rid of internal dampness that harms electrical components. |
| Phase Protection | Phase detection and correction functions avoid the actuator being damaged by connecting to the wrong power phase. |
| Voltage Protection | When a valve jams, the power will automatically be turned off. Hence, the valve and actuator are shielded from additional harm. |
| Operational Diagnosis | Several sensor devices are included with intelligent actuators. With the capabilities of fault alarm, operating parameters, real-time reflections of the control signal received by the actuator, status indicator, and other status. The defect can be found using a multi-diagnostic function, which makes it simple for the consumers. |
| Password Protection | To prevent misuse that could lead to an actuator failure, intelligent actuators include classifiable password protection that can be allowed to multiple operators. |
Standard specification
| Force range | 1000-8000N |
|---|---|
| Max stroke | 60-100mm |
| Running time | 40-122S |
| Ambient temperature | -25°C---+70°C |
| Anti-vibration level | JB/T 8219 |
| Noise level | Less than 75dB within 1m |
| Electrical interface | Two PG16 |
| Ingress Protection | IP67 |
| Optional | IP68 |
| Motor Specifications | Class F.with thermal protector up to +135° |
| Coptional | Class H |
| Working System | On/off type, S2-15min, no more than 600 times per hour start |
| Modulating type | S4-50%, up to 600 triggers per hour |
| Optional | 1200 times per hour. |
| Applicable Voltage | 24V-240V |
| Single phase | DC24V |
| Input signal | On/off type, AC24 auxiliary power input control;Optoelectronic isolation; Modulating type, 4-20mA; 0-10V; 2-10V |
| Input signal | Input impedance; 250Ω (4-20mA) |
| Signal Feedback | On/off type; Close valve contact; Open valve contact |
| Optional | Opening torque signal contact; closing torque signal contact, Local/remote signal contact; Integrated fault signal contact 4-20mA transmit. |
| Malfunction Feedback | On/off type; Integrated fault alarm; Power off, motor overheating, lack of phase , over torque, broken signal. |
| Output Signal | 0-10V |
| Modulating type | 4-20mA |
| Output signal | 2-10VOutput |
| Impedance | ≤750Ω (4-20mA) |
| Indication | LCD screen opening indicator |
Performance parameters — ELM linear series (ELM010–ELM080)
| Model | Power (W) | Max stroke (mm) | Max force (N) | Stroke speed s/mm (AC110/220V 50 Hz) | Stroke speed s/mm (AC/DC24V) | Stroke speed mm/s (AC110/220V 50 Hz) | Stroke speed mm/s (AC/DC24V) | Remark |
|---|---|---|---|---|---|---|---|---|
| ELM010 | 10 | 60 | 1000 | 0.83 | 0.64 | 1.20 | 1.56 | Handwheel; manual/electric switch mechanism |
| ELM020 | 10 | 60 | 2000 | 0.83 | 0.64 | 1.20 | 1.56 | Handwheel; manual/electric switch mechanism |
| ELM040 | 10 | 60 | 4000 | 1.58 | 1.23 | 0.63 | 0.81 | Handwheel; manual/electric switch mechanism |
| ELM080 | 15 | 60 | 8000 | 2.04 | 1.58 | 0.49 | 0.63 | Handwheel; manual/electric switch mechanism |
1. Rated output is 0.75 × the maximum force. 2. Standard colour is black; other colours on request.

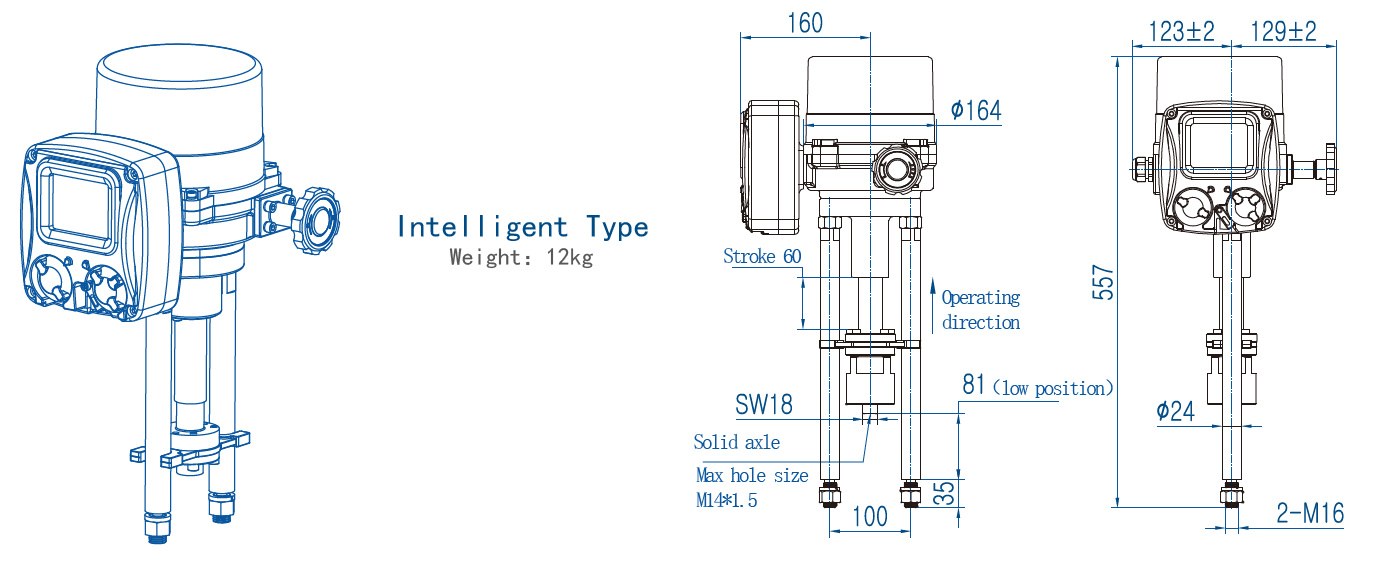

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN ELM is a linear electric actuator for globe valves and control valves, with a handwheel for commissioning and emergency manual operation. This model: max thrust 1000–8000 N, stroke 60–100 mm, power supply 24–240V, IP67.
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
