Linear electric actuator ELM, super intelligent, Modbus, up to 25000 N
Valve Actuators

Linear electric actuator ELM, super intelligent, Modbus, up to 25000 N

Part no.
BD-1318
Brand
FLOWINN
Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Linear electric
  • Series: ELM
  • Max thrust: 1000–25000 N
  • Max stroke: 100 mm
  • Power supply: 4–240V (as stated by manufacturer)
  • Ingress protection: IP67
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1318
CategoryLinear Electric Actuators
GroupValve Actuators
BrandFLOWINN
Technical
TypeLinear electric
SeriesELM
Max thrust1000–25000 N
Max stroke100 mm
Power supply4–240V (as stated by manufacturer)
Ingress protectionIP67
ManufacturerFLOWINN (Shanghai)

Datasheet

FLOWINN ELM series

Technical features

Manufacturer warranty2 years
Manual OperationThe whole series of products are equipped with handwheel operating mechanism, which is convenient for debugging and emergency manual operation, and the flashlight is automatically switched, which is safe and reliable.
Infrared remote controlSmart actuators can provide different remote controls according to different application requirements, such as portable infrared remote controls for ordinary places and explosion-proof remote controls for hazardous places.
Operational SafetyClass F (class H optional) insulated motor. The motor winding is equipped with a temperature control switch, which can sense the temperature of the motor and provide overheat protection to ensure the safe operation of the motor.
Anti-humidity ResistanceA heater is mounted inside the actuator to eliminate damage to electrical components from internal condensation.
Phase ProtectionThe phase detection and correction function can avoid damage to the driver due to wrong power supply phase connection.
Voltage ProtectionProtects against high and low pressure conditions.
Overload ProtectionWhen the valve is blocked, the power is automatically shut off to prevent further damage to the valve and actuator.
Operational DiagnosisThe intelligent actuator is equipped with a variety of sensing devices, which can reflect the control signal received by the actuator, fault alarm, operating parameters, status indication and other functions in real time. The multiple diagnostic functions are convenient for users to locate faults.
Password ProtectionThe intelligent actuator is equipped with hierarchical password protection, which can be authorized to different operators to prevent misoperation caused by improper use.

Standard specification

Force range1000-25000N
Max stroke100mm
Running time55-179S
Ambient temperature-25°C---+70°C
Anti-vibration levelJB/T 8219
Noise levelLess than 75dB within 1m
Electrical interfaceTwo PG16
Ingress ProtectionIP67
OptionalIP68
Motor SpecificationsClass F.with thermal protector up to +135°
CoptionalClass H
Working SystemOn/off type, S2-15min, no more than 600 times per hour start
Modulating typeS4-50%, up to 600 triggers per hour
Optional1200 and 1800 times per hour.
Applicable Voltage4V-240V
Single phaseDC24V2
BusModbus
Input signalOn/off type,20-60VAC/DC or 60-120VAC; Optoelectronic isolation; Modulating type.
Input signal4-20mA; 0-10V; 2-10V;Accuracy 1%
Dead zone0-25.5% adjustable rate in full stroke.
Input impedance75Ω (4-20mA)
Signal FeedbackOn/off
Type Relay ×51.on/off in place;2.on/off over torque; 3.Local/remote;4.Center position;5.Multiple malfuntions to choose from
Optional4-20mA transmit.
Malfunction FeedbackOn/off, typeTorqueprotection;Motor, overheat protection;Jammed, valve, protection; Instantaneous, reverse, protection;Broken, signal protection; Other alarms
Output Signal4-20mA
Modulating type0-10V
Output signal2-10V
Output impedance≤750Ω (4-20mA)
IndicationLCD screen opening indicator; On/off remote control/fault indicator

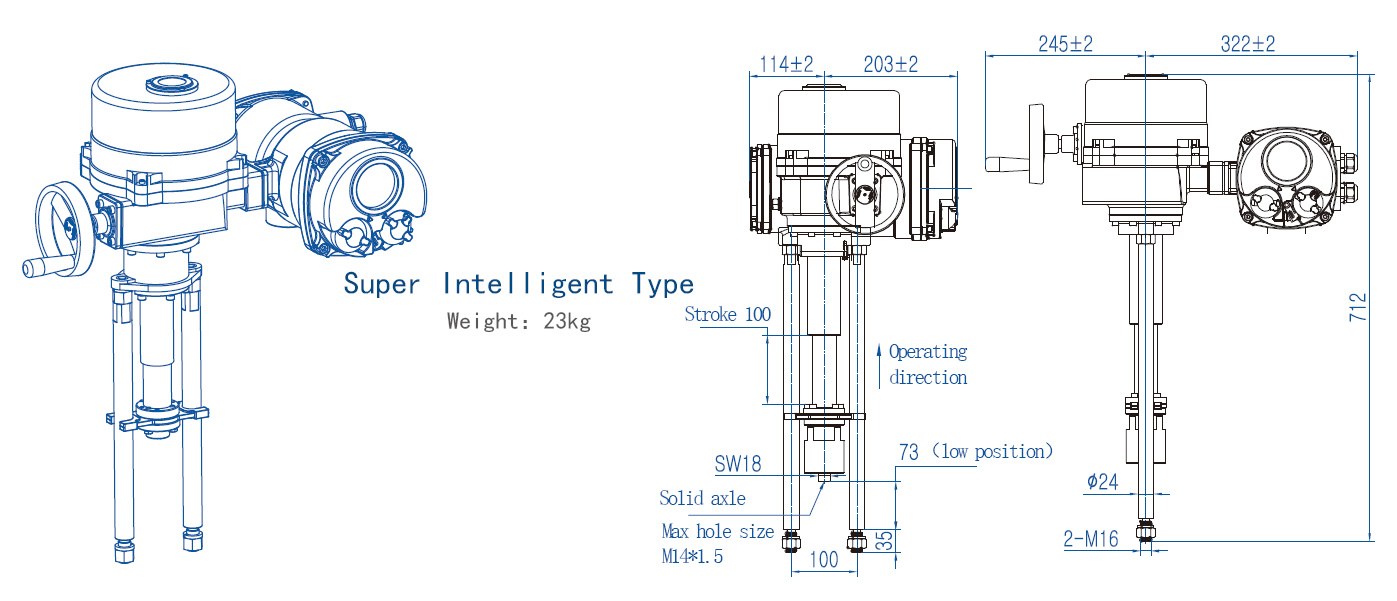

Dimension drawing

ELM dimension drawing

Notes

The supplier publishes performance data only for ELM010–ELM080 (up to 8000 N, 60 mm stroke). Data for the larger 10–25 kN models is available on request.
Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering.

Description

The FLOWINN ELM is a linear electric actuator for globe valves and control valves, with a handwheel for commissioning and emergency manual operation. This model: max thrust 1000–25000 N, stroke 100 mm, power supply 4–240V (as stated by manufacturer), IP67.

Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
