Valve Actuators
Explosion-proof quarter-turn electric actuator EXB(C)2–12, 100–8000 N·m
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Explosion-proof quarter-turn
- Series: EXB(C)
- Max torque: 100–8000 N·m
- Control: On/off or modulating
- Power supply: 1-ph AC/DC24V, AC110–240V; 3-ph 380–480V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1319 |
| Category | Explosion-Proof Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Explosion-proof quarter-turn |
| Series | EXB(C) |
| Max torque | 100–8000 N·m |
| Control | On/off or modulating |
| Power supply | 1-ph AC/DC24V, AC110–240V; 3-ph 380–480V |
| Ingress protection | IP67 (optional IP68) |
| Explosion protection | Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
FLOWINN EXB(C) series
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Overload Protection | The power will automatically shut off when the valve jam occurs. Thus preventing further damage to the valve and actuator |
| Explosion-proof Rating | Ex d IIC T6 design and NEPSI & 3C certifications which satisfy the requirements in hazaradous locations. |
| Operational Safety | F insulation class, equipped with temperature control switch at the motor winding, to protect the motor running safety. |
| Voltage Protection | Protection against high and low voltage conditions. |
| Applicable valve | Plug valve; Ball Valve; Butterfly Valve, |
| Anti-corrosion Protection | Epoxy resin enclosure meets NEMA 4X, customer-special painting is available |
| Ingress Protection | IP67 optional: IP68; IP68 is defined as a rating of 7m underwater, impermeable for 72 hours |
| Fireproofing Grade | FLOWINN high temperature fire-proof cover for special use. |
Standard specification
| Explosion protection | Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement) |
|---|---|
| Material of Actuator Body | Aluminum Alloy |
| Control Mode | On-off Type & Modulating Type |
| Torque Range | 100-8000N·m |
| Running Time | 14-143s |
| Applicable Voltage | 1 phase:AC/DC24V / AC110V / AC220V / AC230V /AC240V 3P:380V/440V/460/480V |
| Ambient Temperature | -20°C…..+65 °C; Optional: -40°C…..+65 °C |
| Anti-vibration Level | JB/T8219 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP67 optional: IP68 ( Maximum 7m; Max: 72 hours) |
| Connection Size | ISO5211 |
| Motor Specifications | Class F, with thermal protector up to +135°C (+275°F) |
| Working System | On-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start |
| On/off type signal | Input: AC/DC24V input control or AC110/220V input control. Feedback: valve-closed contact; valve-open contact; optional closing-torque contact and local/remote contacts; integrated fault contact; 4–20 mA transmitter. Malfunction feedback: integrated fault alarm, motor overheating; optional undercurrent protection contact. |
| Modulating type signal | Input 4–20 mA / 0–10 V / 2–10 V; input impedance 250 Ω (4–20 mA). Output 4–20 mA / 0–10 V / 2–10 V; output impedance ≤750 Ω (4–20 mA). Repeatability and linearity within ±1% of full valve stroke. Signal reverse: supported. Loss-of-signal mode setting: supported. Dead zone ≤2.5%. |
| Indication | 3D opening indicator |
| Other functions | Phase correction (3-phase supply only); torque protection; motor overheat protection; moisture-resistant heater |
Performance parameters — EXB(C) explosion-proof series
| Model | Power (W) | Max torque N·m (AC/DC24V) | Max torque N·m (AC110/220V) | Max torque N·m (AC220/380V 3-ph) | Max torque lbf·in (AC/DC24V) | Max torque lbf·in (AC110/220V) | Max torque lbf·in (3-ph) | Operating time s (AC110/220V 50 Hz) | Operating time s (AC380V 3-ph 50 Hz) | Operating time s (AC/DC24V) | ISO 5211 | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EXB(C)2 | 40 | 100 | 100 | 100 | 885 | 885 | 885 | 19 | 19 | 14 | F05/F07/F10/F12 | Handwheel operation |
| EXB(C)3 | 40 | 200 | 200 | 200 | 1770 | 1770 | 1770 | 39 | 39 | 28 | F05/F07/F10/F12 | Handwheel operation |
| EXB(C)4 | 90 | 400 | 400 | 400 | 3540 | 3540 | 3540 | 29 | 29 | 21 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXB(C)5 | 90 | 600 | 600 | 600 | 5310 | 5310 | 5310 | 39 | 39 | 28 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXB(C)6 | 90 | 800 | 800 | 800 | 7080 | 7080 | 7080 | 47 | 47 | 34 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXB(C)7 | 120 | 1000 | 1000 | 1000 | 8850 | 8850 | 8850 | 47 | 47 | 34 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXB(C)8 | 200 | — | 1700 | 1700 | — | 15045 | 15045 | 34 | 34 | — | F12/F14/F16 | Handwheel operation, planetary gear |
| EXB(C)9 | 200 | — | 2300 | 2300 | — | 20355 | 20355 | 47 | 47 | — | F12/F14/F16 | Handwheel operation, planetary gear |
| EXB(C)10 | 200 | — | 3500 | 3500 | — | 30975 | 30975 | 76 | 76 | — | F14/F16 | Handwheel operation, planetary gear |
| EXB(C)11 | 200 | — | 5000 | 5000 | — | 44250 | 44250 | 105 | 105 | — | F14/F16 | Handwheel operation, planetary gear |
| EXB(C)12 | 200 | — | 8000 | 8000 | — | 70800 | 70800 | 143 | 143 | — | F25 | Handwheel operation, planetary gear |
1. Where one value spans several voltage columns in the supplier's table, it is repeated in each column here.

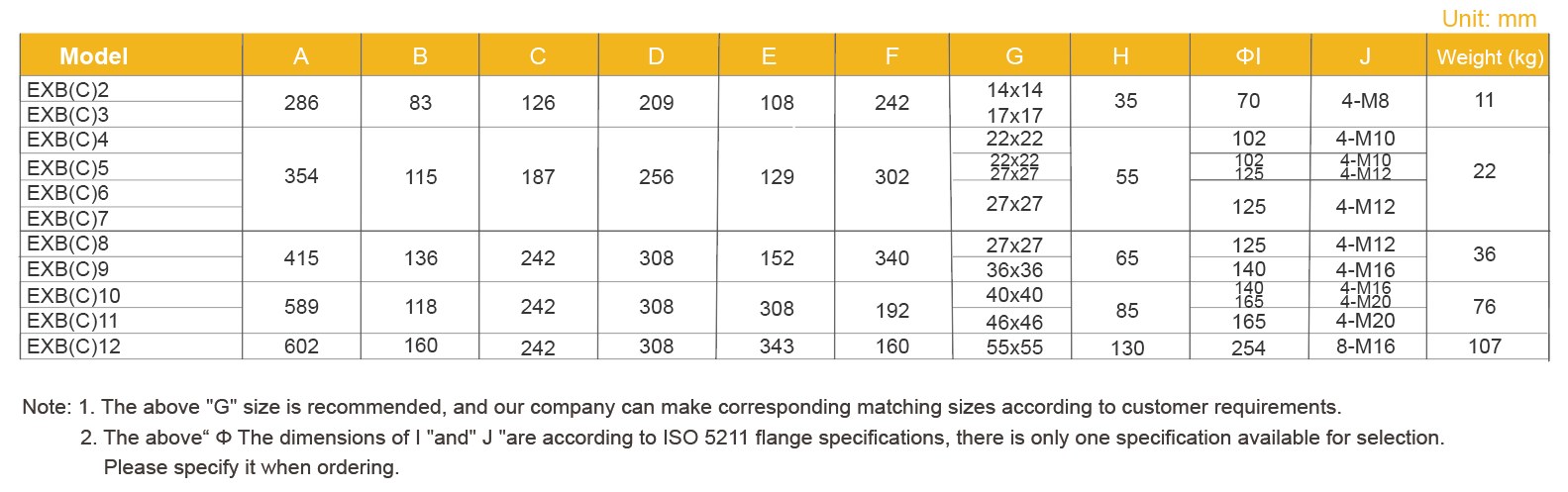

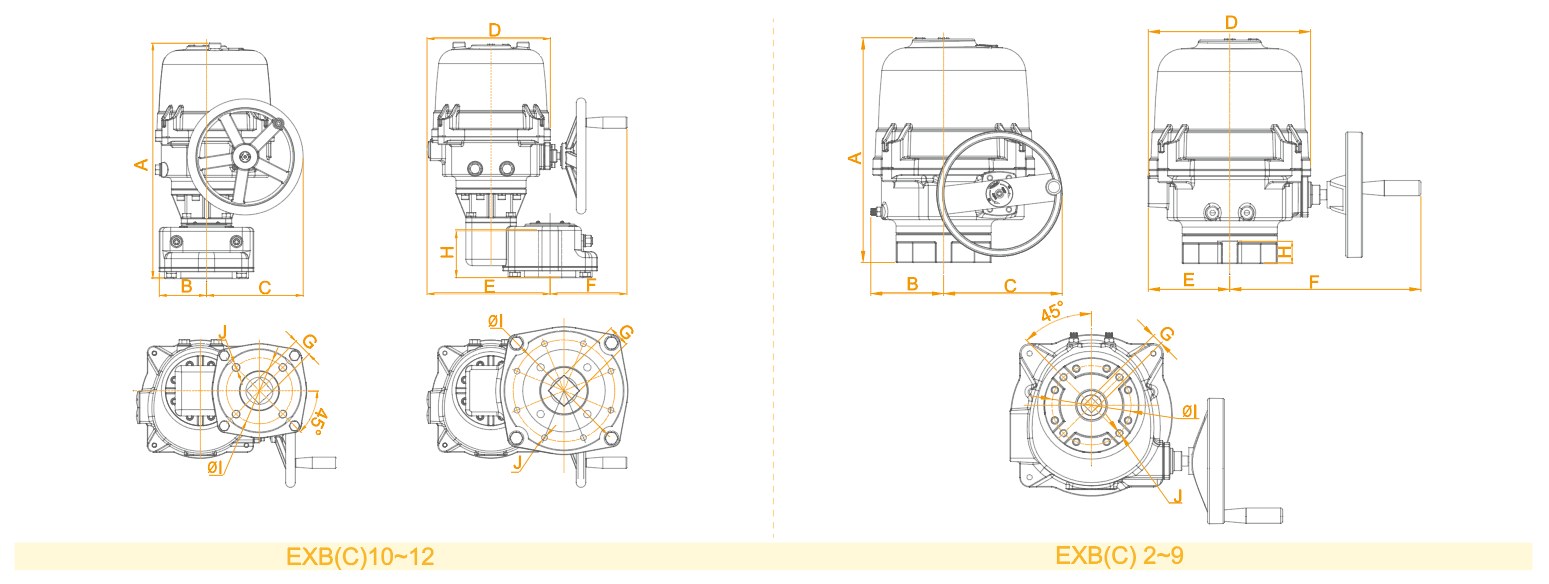

Dimension drawings
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EXB(C) is a flameproof (explosion-proof) quarter-turn electric actuator for ball, butterfly and plug valves in hazardous areas such as gas, oil, chemical and fertiliser plants. This model: max torque 100–8000 N·m, on/off or modulating control, power supply 1-ph AC/DC24V, AC110–240V; 3-ph 380–480V, IP67 (optional IP68), Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
