Explosion-proof quarter-turn electric actuator EXCJ2–12, super intelligent, 100–8000 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Explosion-proof quarter-turn
- Series: EXCJ
- Max torque: 100–8000 N·m
- Control: On/off or modulating
- Power supply: 1-ph AC/DC24V, AC110–240V; 3-ph 380–480V
- Ingress protection: IP66
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1320 |
| Category | Explosion-Proof Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Explosion-proof quarter-turn |
| Series | EXCJ |
| Max torque | 100–8000 N·m |
| Control | On/off or modulating |
| Power supply | 1-ph AC/DC24V, AC110–240V; 3-ph 380–480V |
| Ingress protection | IP66 |
| Explosion protection | Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Overload Protection | In order to prevent valve jamming, there is a torque protection function inside the actuator, which can jump off by itself and will not damage the valve and actuator |
| Explosion-proof Rating | Ex d IIC T6 design and NEPSI & 3C certifications which satisfy the requirements in hazaradous locations. |
| Operational Safety | Grade F insulated motor with thermal protection 135°. |
| Voltage Protection | Depending on the voltage, different protection is provided. |
| Applicable valve | Ball Valve; Butterfly Valve, plug valve |
| Anti-corrosion Protection | Epoxy resin enclosure meets NEMA 4X, customer-special painting is available |
| Ingress Protection | IP66 |
| Fireproofing Grade | High temperature fireproof enclosure meets requirements in different situation |
Standard specification
| Explosion protection | Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement) |
|---|---|
| Material of Actuator Body | Aluminum Alloy |
| Control Mode | On-off Type & Modulating Type |
| Torque Range | 100-8000N·m |
| Running Time | 14-143s |
| Applicable Voltage | 1 phase:AC/DC24V / AC110V / AC220V / AC230V /AC240V 3P:380V/415V/440V/460V/480V: |
| Ambient Temperature | -20°C…..+65 °C; Optional: -40°C…..+65 °C |
| Anti-vibration Level | JB/T8219 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP66 |
| Connection Size | ISO5211 |
| Motor Specifications | Class F, with thermal protector up to +135°C (+275°F) |
| Working System | On-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start |
| On/off type signal | Input: AC/DC24V input control or AC110/220V input control. Feedback: valve-closed contact; valve-open contact; optional closing-torque contact and local/remote contacts; integrated fault contact; 4–20 mA transmitter. Malfunction feedback: integrated fault alarm, motor overheating; optional undercurrent protection contact. |
| Modulating type signal | Input 4–20 mA / 0–10 V / 2–10 V; input impedance 250 Ω (4–20 mA). Output 4–20 mA / 0–10 V / 2–10 V; output impedance ≤750 Ω (4–20 mA). Repeatability and linearity within ±1% of full valve stroke. Signal reverse: supported. Loss-of-signal mode setting: supported. Dead zone ≤2.5%. |
| Indication | 3D opening indicator |
| Other functions | Phase correction (3-phase supply only); torque protection; motor overheat protection; moisture-resistant heater |
Performance parameters — EXCJ explosion-proof series
| Model | Power (W) | Max torque N·m (AC/DC24V) | Max torque N·m (AC110/220V) | Max torque N·m (AC220/380V 3-ph) | Max torque lbf·in (AC/DC24V) | Max torque lbf·in (AC110/220V) | Max torque lbf·in (3-ph) | Operating time s (AC110/220V 50 Hz) | Operating time s (AC380V 3-ph 50 Hz) | Operating time s (AC/DC24V) | ISO 5211 | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EXCJ2 | 40 | 100 | 100 | 100 | 885 | 885 | 885 | 19 | 19 | 14 | F05/F07/F10/F12 | Handwheel operation |
| EXCJ3 | 40 | 200 | 200 | 200 | 1770 | 1770 | 1770 | 39 | 39 | 28 | F05/F07/F10/F12 | Handwheel operation |
| EXCJ4 | 90 | 400 | 400 | 400 | 3540 | 3540 | 3540 | 29 | 29 | 21 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXCJ5 | 90 | 600 | 600 | 600 | 5310 | 5310 | 5310 | 39 | 39 | 28 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXCJ6 | 90 | 800 | 800 | 800 | 7080 | 7080 | 7080 | 47 | 47 | 34 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXCJ7 | 120 | 1000 | 1000 | 1000 | 8850 | 8850 | 8850 | 47 | 47 | 34 | F10/F12/F14 | Handwheel operation, planetary gear |
| EXCJ8 | 200 | — | 1700 | 1700 | — | 15045 | 15045 | 34 | 34 | — | F12/F14/F16 | Handwheel operation, planetary gear |
| EXCJ9 | 200 | — | 2300 | 2300 | — | 20355 | 20355 | 47 | 47 | — | F12/F14/F16 | Handwheel operation, planetary gear |
| EXCJ10 | 200 | — | 3500 | 3500 | — | 30975 | 30975 | 76 | 76 | — | F14/F16 | Handwheel operation, planetary gear |
| EXCJ11 | 200 | — | 5000 | 5000 | — | 44250 | 44250 | 105 | 105 | — | F14/F16 | Handwheel operation, planetary gear |
| EXCJ12 | 200 | — | 8000 | 8000 | — | 70800 | 70800 | 143 | 143 | — | F25 | Handwheel operation, planetary gear |
1. Where one value spans several voltage columns in the supplier's table, it is repeated in each column here.

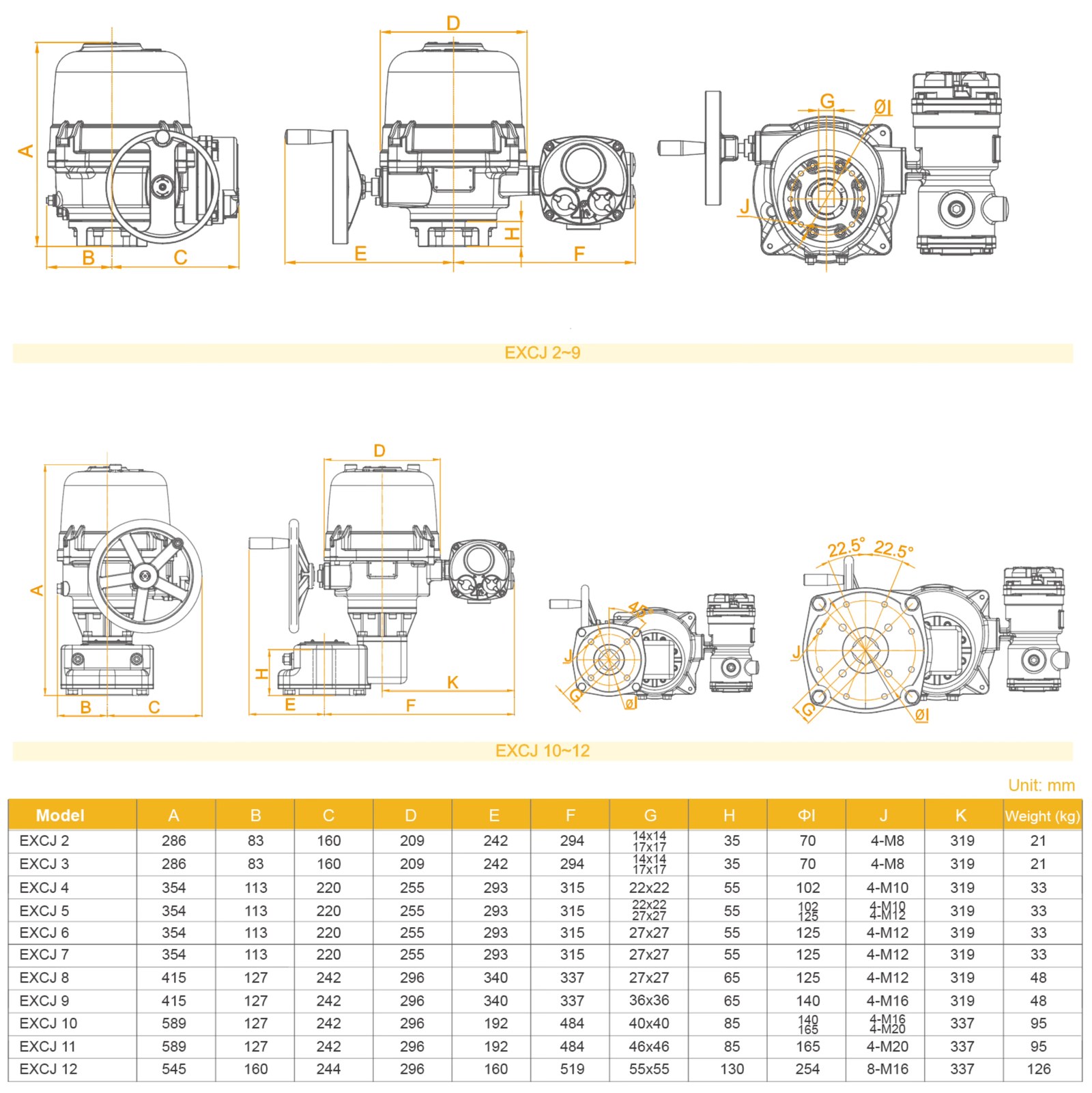

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EXCJ is a flameproof (explosion-proof) quarter-turn electric actuator with intelligent controls, for ball, butterfly and plug valves in hazardous areas such as gas, oil, chemical and fertiliser plants. This model: max torque 100–8000 N·m, on/off or modulating control, power supply 1-ph AC/DC24V, AC110–240V; 3-ph 380–480V, IP66, Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
