Explosion-proof quarter-turn electric actuator EXC(G)1 / A / B, small, 35–80 N·m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Explosion-proof quarter-turn
- Series: EXC(G)
- Max torque: 35–80 N·m
- Control: On/off or modulating
- Power supply: 1-ph AC/DC24V, AC110–240V
- Ingress protection: IP67 (optional IP68)
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1321 |
| Category | Explosion-Proof Electric Actuators |
| Group | Valve Actuators |
| Brand | FLOWINN |
| Technical | |
| Type | Explosion-proof quarter-turn |
| Series | EXC(G) |
| Max torque | 35–80 N·m |
| Control | On/off or modulating |
| Power supply | 1-ph AC/DC24V, AC110–240V |
| Ingress protection | IP67 (optional IP68) |
| Explosion protection | Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement) |
| Manufacturer | FLOWINN (Shanghai) |
Datasheet
Technical features
| Manufacturer warranty | 2 years |
|---|---|
| Overload Protection | Overtorque function, when the valve clamp valve, the actuator will jump off, to prevent further damage to the valve and the actuator |
| Explosion-proof Rating | Ex d IIC T6 design and NEPSI & 3C certifications which satisfy the requirements in hazaradous locations. |
| Operational Safety | Provide over temperature protection, F grade insulated motor, the use of temperature control switch to detect the motor temperature, to ensure the safe operation of the motor. |
| Voltage Protection | Protection against the high and low voltage situations. |
| Applicable valve | Ball Valve; Plug Valve; Butterfly Valve, |
| Anti-corrosion Protection | Epoxy resin enclosure meets NEMA 4X, customer-special painting is available |
| Ingress Protection | IP67 optional: IP68 |
| Fireproofing Grade | High temperature fireproof enclosure meets requirements in different situation |
| Flexible use | Small size, can be flexibly used in the use of narrow space |
Standard specification
| Explosion protection | Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement) |
|---|---|
| Material of Actuator Body | Aluminum Alloy |
| Control Mode | On-off Type & Modulating Type |
| Torque Range | 35-80N·m |
| Running Time | 11-22s |
| Applicable Voltage | 1 phase:AC/DC24V / AC110V / AC220V / AC230V /AC240V |
| Ambient Temperature | -20°C…..+65 °C; Optional: -40°C…..+65 °C |
| Anti-vibration Level | JB/T8219 |
| Noise Level | Less than 75 dB within 1m |
| Ingress Protection | IP67 optional: IP68 ( Maximum 7m; Max: 72 hours) |
| Connection Size | ISO5211 |
| Motor Specifications | Class F |
| Working System | On-off Type: S2-15 min, no more than 600 times per hour start Modulating Type: S4-50% up to 600 times per hour start |
| On/off Type Signal | Input Signal: AC/DC 24 input control or AC 110/220v input control Signal Feedback: 1. Close the valve contact 2. Open the valve contact 3. Optional: Closing torque signal contact Local/remote contacts Integrated fault contact 4~20 mA to send. Malfunction Feedback: Integrated fault alarm; Motor overheating; Optional: Undercurrent protection contact |
| Modulating Type Signal | Input Signal: 4-20mA; 0-10V; 2-10V Input impedance: 250Ω (4-20mA) Output signal: 4-20mA; 0-10V; 2-10V Output impedance: ≤750Ω (4-20mA); Repeatability and linearity within ±1% of full valve stroke Signal Reverse: Support Loss Signal Mode Setting: Support Dead Zone: ≤2.5% |
| Indication | 3D opening indicator |
| Other Function | 1. Phase correction(3-phase power supply only) 2. Torque protection 3. Motor overheat protection 4. Moisture- resistant heaters(anti-moisture device) |
Performance parameters — EXC(CG) small explosion-proof series
| Model | Power (W) | Max torque N·m (AC/DC24V) | Max torque N·m (AC110/220V) | Max torque N·m (AC220/380V 3-ph) | Max torque lbf·in (AC/DC24V) | Max torque lbf·in (AC110/220V) | Max torque lbf·in (3-ph) | Operating time s (AC110/220V 50 Hz) | Operating time s (AC380V 3-ph 50 Hz) | Operating time s (AC/DC24V) | ISO 5211 | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EXC(CG)1* | 10 | 35 | 35 | — | 310 | 310 | — | 11 | — | 8 | F03/F05/F07 | Handwheel operation |
| EXC(CG)A* | 10 | 50 | 50 | — | 443 | 443 | — | 15 | — | 10 | F03/F05/F07 | Handwheel operation |
| EXC(CG)B* | 10 | 80 | 80 | — | 708 | 708 | — | 22 | — | 15 | F03/F05/F07 | Handwheel operation |
1. Where one value spans several voltage columns in the supplier's table, it is repeated in each column here. 2. The * in the model names is printed in the supplier's table; its meaning is not stated.

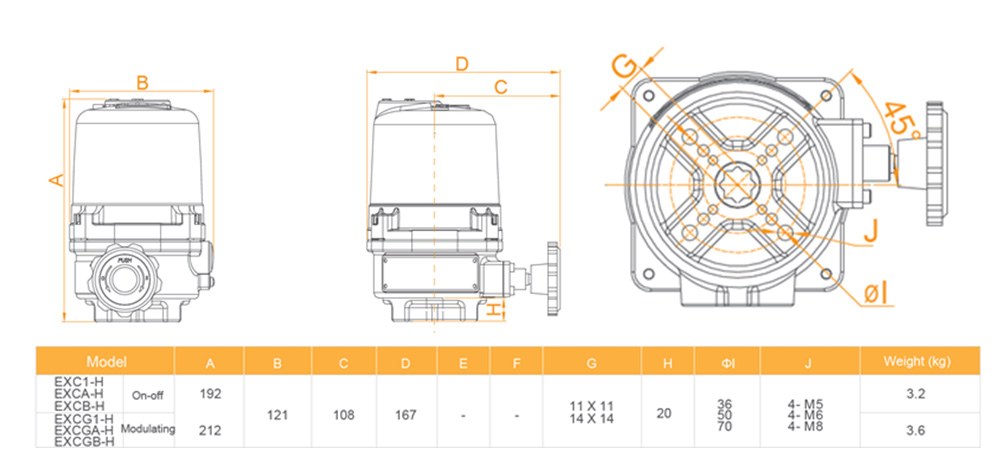

Dimension drawing
Notes
| Data from the manufacturer FLOWINN (Shanghai) Industrial Co., Ltd. Confirm model, torque, voltage and mounting with Argonmark before ordering. |
Description
The FLOWINN EXC(G) is a small flameproof (explosion-proof) quarter-turn electric actuator for small valves in hazardous areas. This model: max torque 35–80 N·m, on/off or modulating control, power supply 1-ph AC/DC24V, AC110–240V, IP67 (optional IP68), Ex d IIC T6; NEPSI and CCC certified (manufacturer's statement).
Argonmark Ltd supplies FLOWINN electric valve actuators across Bangladesh — Dhaka, Gazipur, Narayanganj, Chattogram and beyond — for power plants, water and effluent treatment plants (WTP/ETP), textile, dyeing and washing plants, chemical, fertiliser, pharmaceutical and food factories, and HVAC and building services. Send us the valve type and size, the torque you need, the power supply and the control signal, and we will confirm the right model, mounting flange and price.
